2.1.3 Import the Ladder Rung

1 Open your application in RSLogix 5000.
2 Expand the Tasks folder, and then expand the Main Task folder.
3 On the Main Program folder, click the right mouse button to open a shortcut menu.
On the shortcut menu, choose New Routine.
4 In the New Routine dialog box, enter the name and description of your routine, and
then click OK.

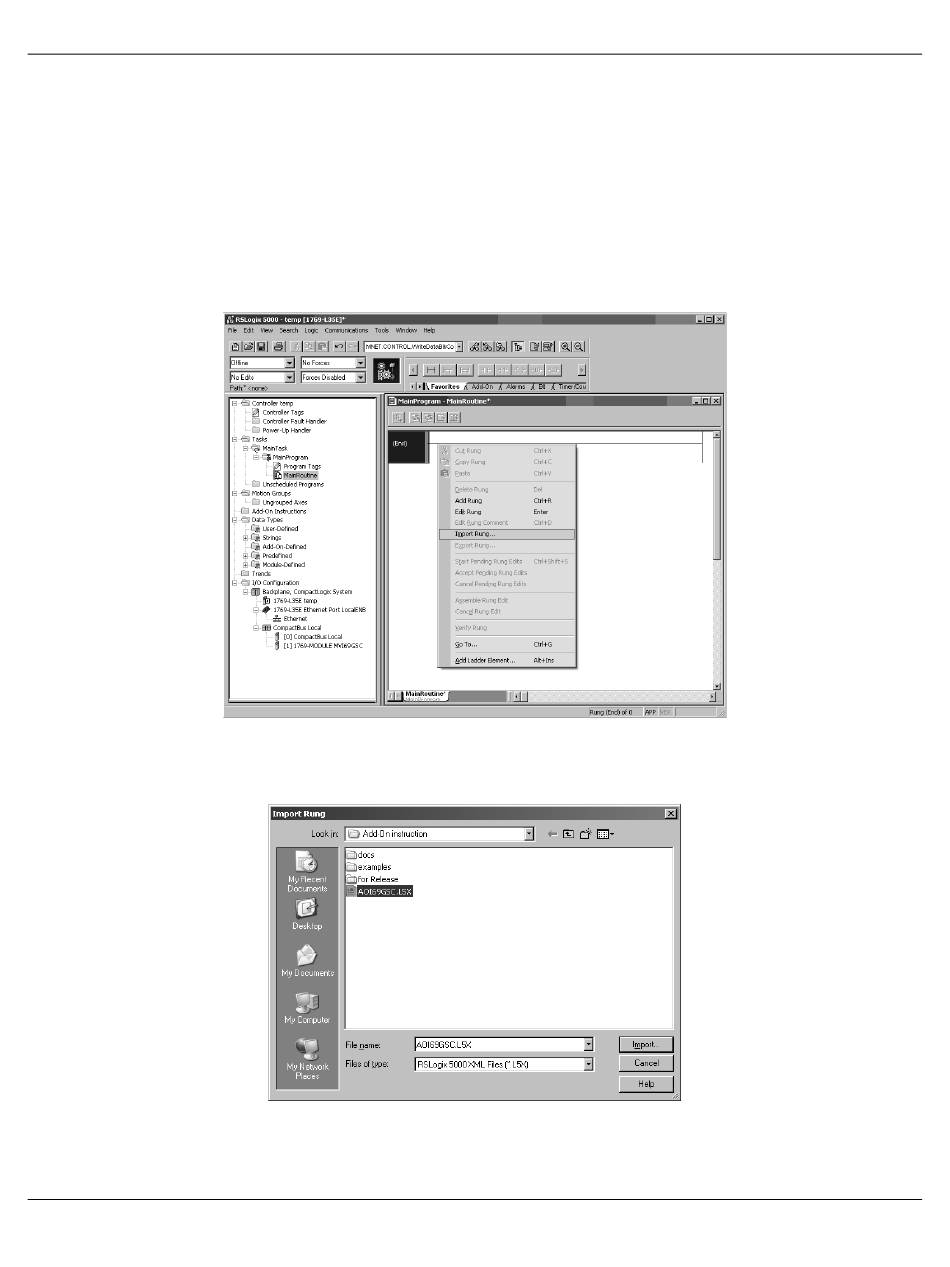

5 Select an empty rung in the new routine, and then click the right mouse button to
open a shortcut menu. On the shortcut menu, choose "Import Rung...".
6 Select the AOI69GSC.L5X file. The Add-On Instruction file is at:
www.prosoft-technology.com.
