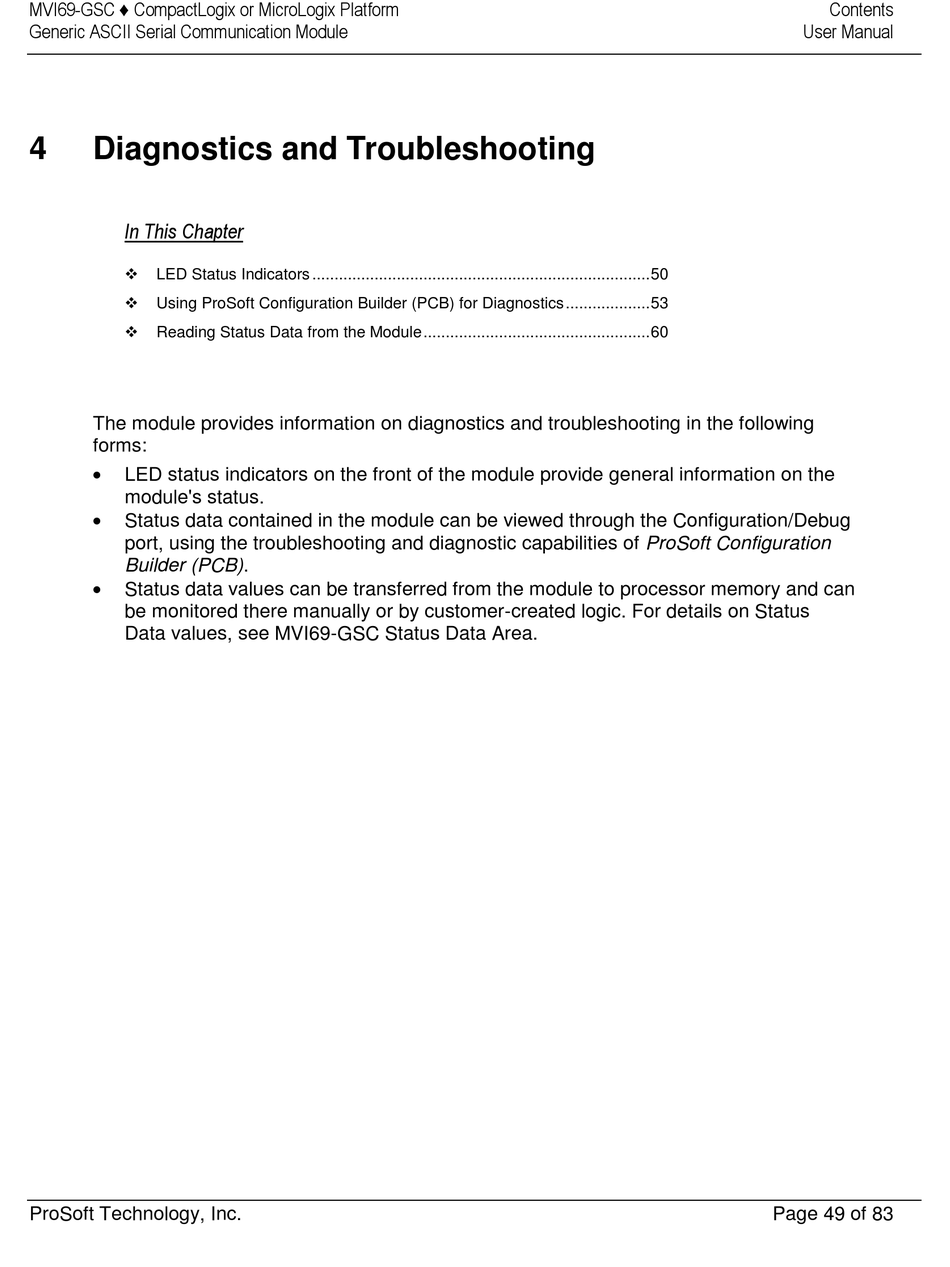

ProSoft Technology MVI69-GSC CompactLogix User Manual page 49

MVI69-GSC ♦ CompactLogix or MicroLogix Platform
Generic ASCII Serial Communication Module
4 Diagnostics and Troubleshooting
In This Chapter

LED Status Indicators ............................................................................ 50

Using ProSoft Configuration Builder (PCB) for Diagnostics ................... 53

Reading Status Data from the Module ................................................... 60
The module provides information on diagnostics and troubleshooting in the following
forms:

LED status indicators on the front of the module provide general information on the
module's status.

Status data contained in the module can be viewed through the Configuration/Debug
port, using the troubleshooting and diagnostic capabilities of ProSoft Configuration
Builder (PCB).

Status data values can be transferred from the module to processor memory and can
be monitored there manually or by customer-created logic. For details on Status
Data values, see MVI69-GSC Status Data Area.
