Connect Your Pc To The Module - ProSoft Technology MVI69-GSC CompactLogix User Manual

MVI69-GSC ♦ CompactLogix or MicroLogix Platform
Generic ASCII Serial Communication Module
2.4

Connect your PC to the Module

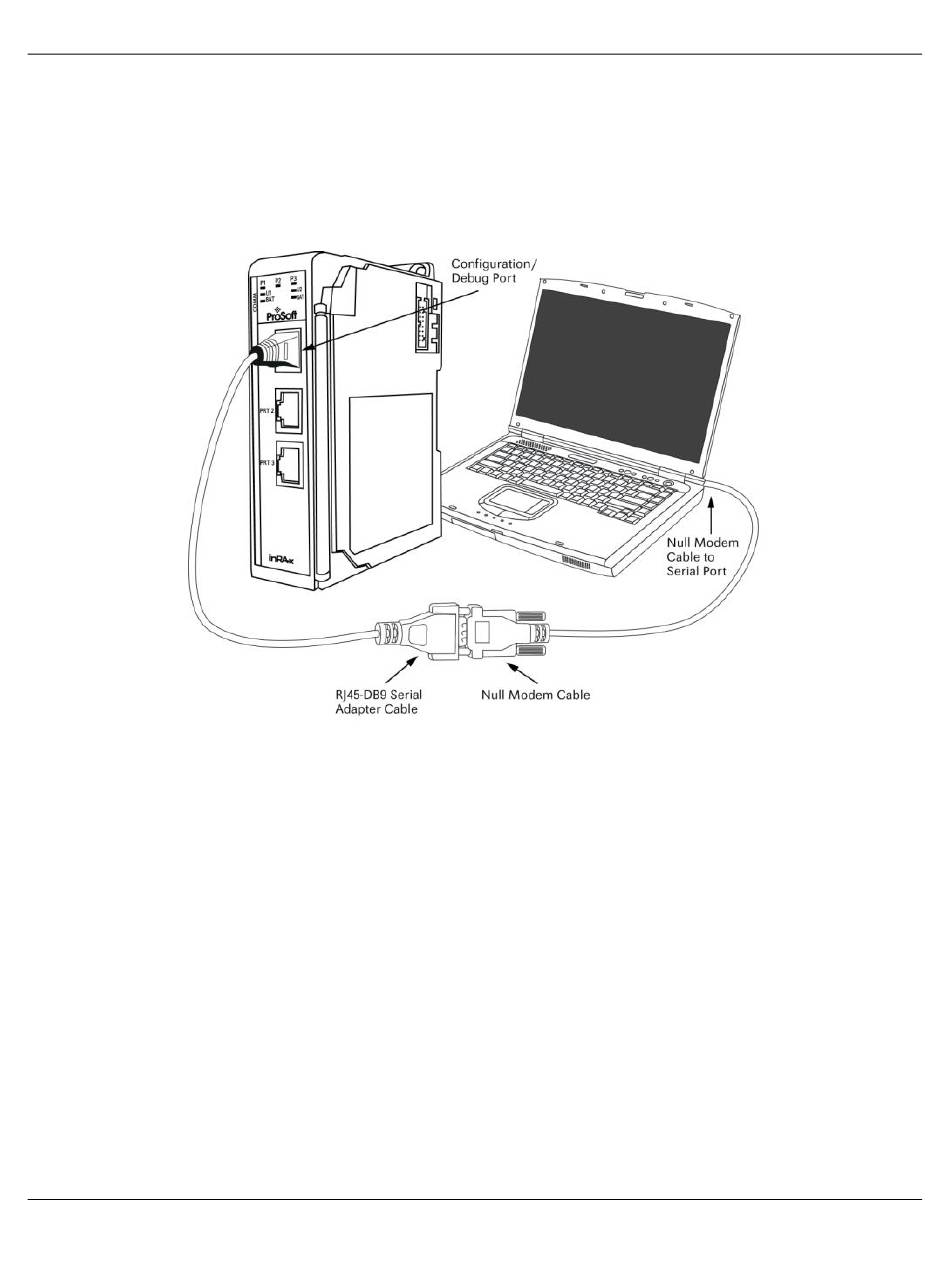

With the module securely mounted, connect your PC to the Configuration/Debug port
using an RJ45-DB-9 Serial Adapter Cable and a Null Modem Cable.
1 Attach both cables as shown.
2 Insert the RJ45 cable connector into the Configuration/Debug port of the module.
3 Attach the other end to the serial port on your PC.
ProSoft Technology, Inc.
Contents
User Manual
Page 32 of 83
