Adding the Module to an Existing MicroLogix Project

If you are installing and configuring the module with a MicroLogix processor, follow these
steps. If you are using a CompactLogix processor, refer to the previous section.
The first step in setting up the processor ladder file is to define the I/O type module to
the system. Start RSLogix 500, and follow these steps:
1 In RSLogix, open your existing application, or start a new application, depending on
your requirements.
2 Double-click the I/O Configuration icon located in the Controller folder in the project
tree. This action opens the I/O Configuration dialog box.
3 On the I/O Configuration dialog box, select "Other - Requires I/O Card Type ID" at
the bottom of the list in the right pane, and then double-click to open the Module
dialog box.

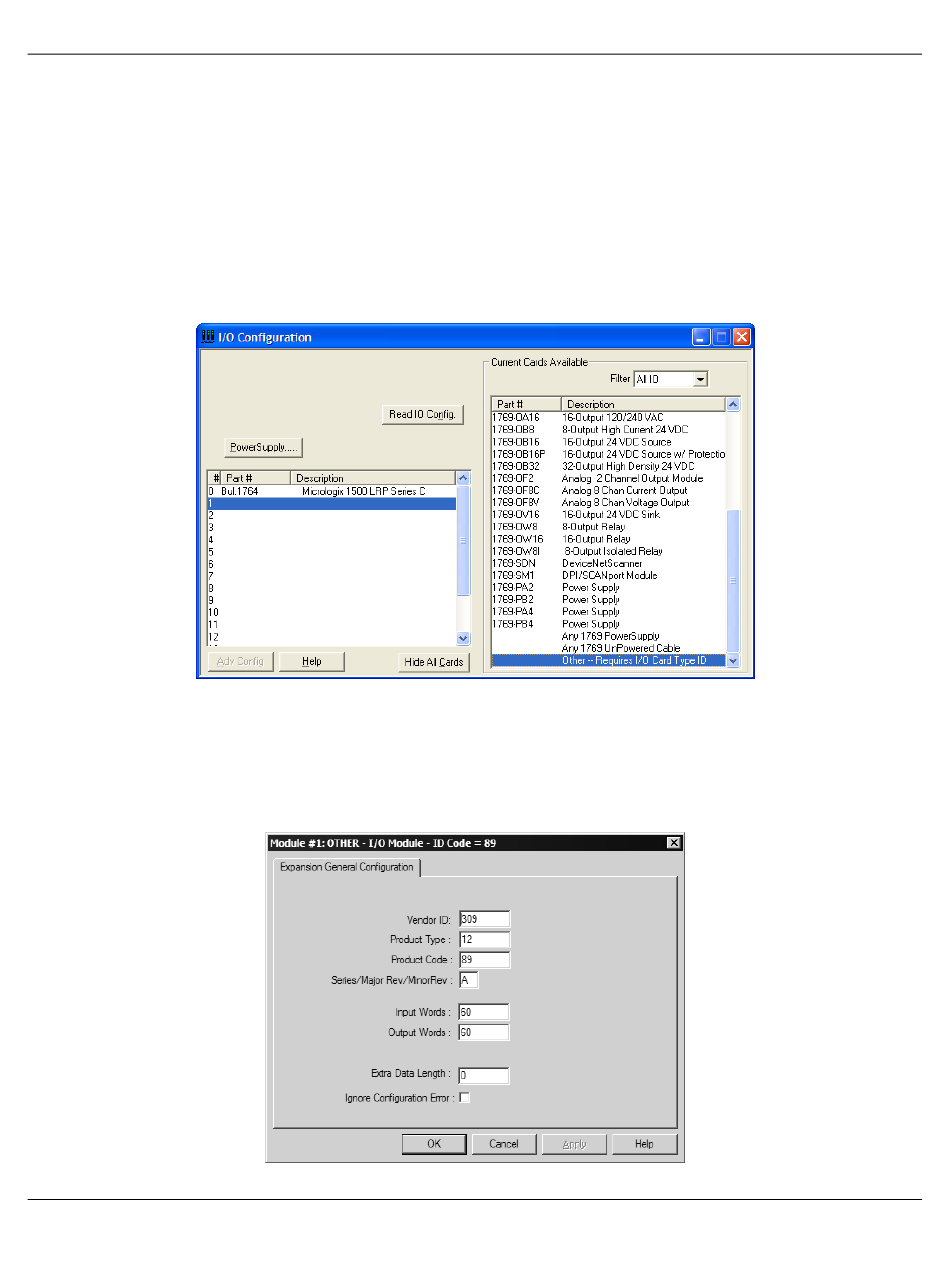

4 Enter the values shown in the following illustration to define the module correctly for
the MicroLogix processor. Click OK to save your configuration.
