MVI69-GSC ♦ CompactLogix or MicroLogix Platform
Generic ASCII Serial Communication Module
Parameter
Name
Description
Comm Format
Slot
Input Assembly
Instance
Input Size
Output Assembly
Instance
Output Size
Configuration
Assembly Instance
Configuration Size

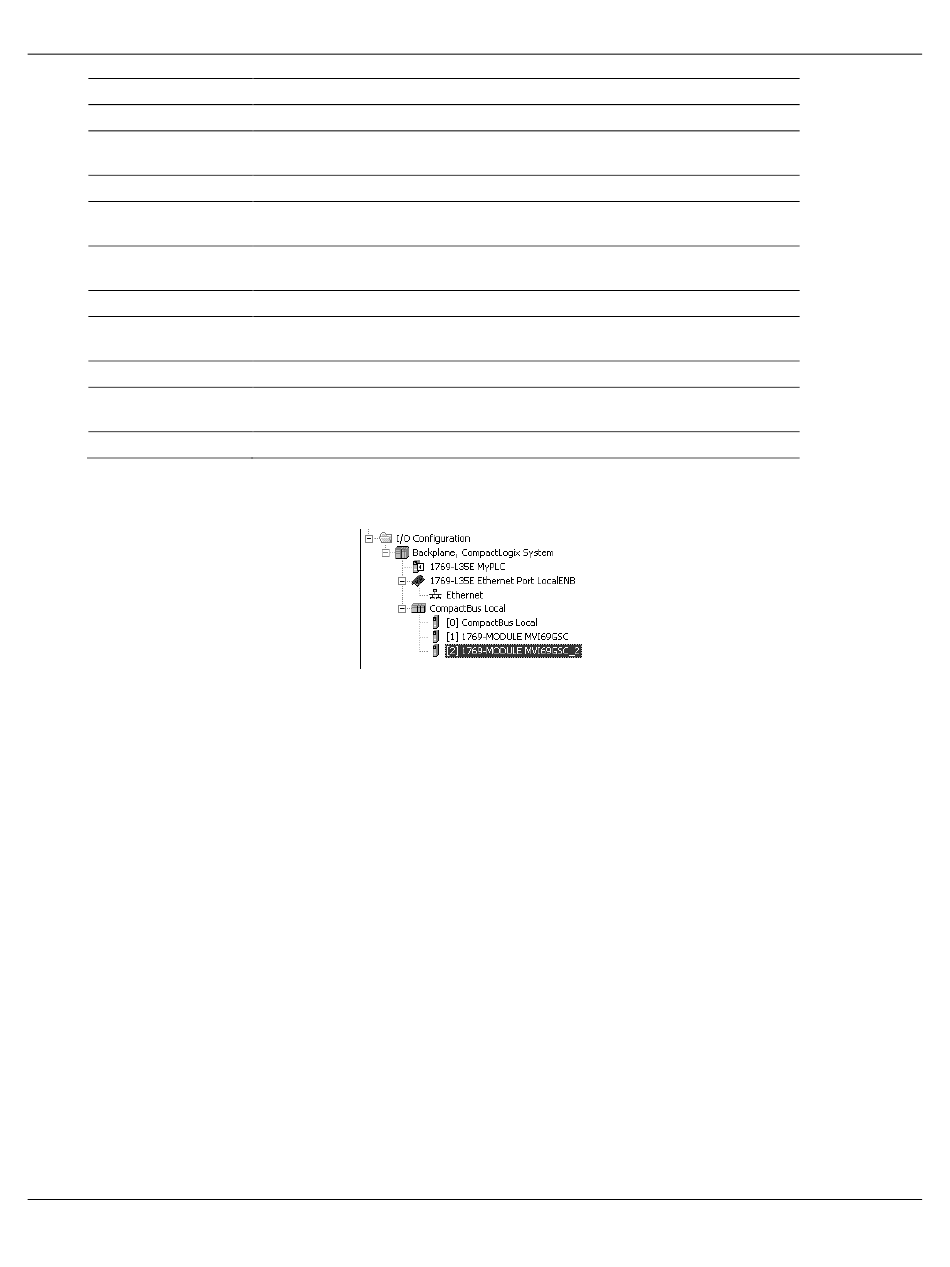

4 Click OK to confirm. The new module is now visible:
5 Expand the Tasks folder, and then expand the MainTask folder.
6 On the MainProgram folder, click the right mouse button to open a shortcut menu.
On the shortcut menu, choose New Routine.
7 In the New Routine dialog box, enter the name and description of your routine, and
then click OK.
ProSoft Technology, Inc.
Value
Enter a module identification string. Example: MVI69MCM_2
Enter a description for the module. Example: ProSoft communication
module for Serial Modbus communications.
Select Data-INT
Enter the slot number in the rack where the MV69-MCM module will be
installed.
101
60
100
60
102
0
