Connector Layout

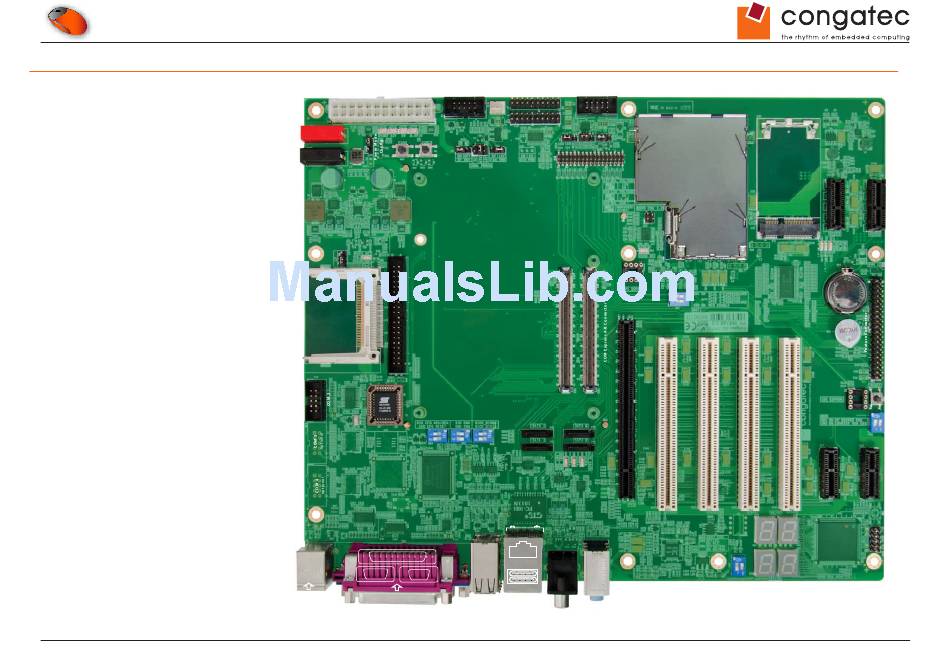

The conga‑CEVAL rev C.x
evaluation board
picture on the right features
component description overlay
that includes pinout indicators
as well as name designators.
Select the Adobe
In‑Tool' and zoom in on a
given component to see the
descriptive text. Hover over the
component and the 'Zoom‑In‑
Tool' will change, indicating a
link. Click on the link to navigate
to the area in the document
where the component
described in detail.
Use the mouse icon in the
top left hand corner of the
destination page to return to
the connector layout picture.
