8.4.2 Fixture Settings
Fixture is a tool for assisting the positioning and correcting the target motion deviation. The
position deviation reference can be set up according to the matching point and the matching
frame angle in the template matching result. And then the coordinate and rotation deviation of
ROI detection frame can be realized according to the relative deviation of feature matching result
and reference position.
Origin X
Link the matching point of template to the origin point of position deviation.
Origin Y
Link the matching point of template to the origin point of position deviation.
Reference Angle
Link the matching frame angle to the angle of position deviation.
Create Reference
Click Create Reference to create reference.
SC2000 Series Vision Sensor User Manual

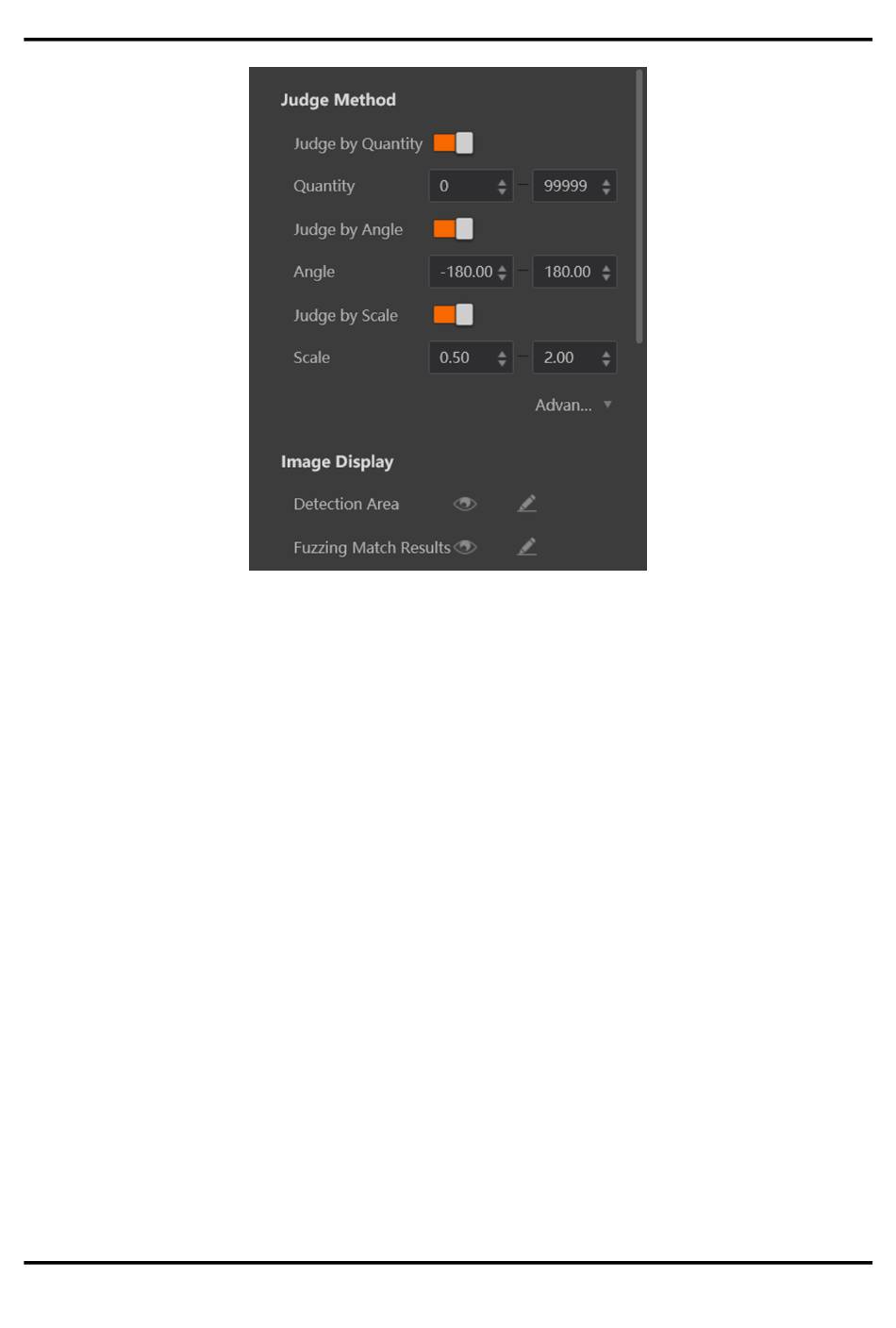

Figure 8-17 Result Display
35
