Searching Mode
It has 9 modes, including Widest, Narrowest, Strongest, Weakest, First, Last, Closest, Keep
Away, and All. Widest means that the edge pair that has the largest spacing within the
detection range. Narrowest means that the edge pair that has the smallest spacing within the
detection range. Strongest means that the edge pair that has the largest average gradient
within the detection range. Weakest means that the edge pair that has the smallest gradient
within the detection range. First means that the edge pair that its center has closest spacing to
the search starting point within the detection range. Last edge means the edge pair that its
center has farthest spacing to the search starting point within the detection range. Closest
means that the set of edge pair that has closest width to ideal width within the detection range.
Keep Away means that the set of edge pair that has least closest width to ideal width within the
detection range. All means that detect all edge pairs within the detection range.
Max. Result Amount
It sets the max. quantity for finding edges.
Ideal Width
It refers to the pixel distance of outputted edge groups. It is recommended to use this
parameter when selecting closest, keep away, or all as searching mode.
Result Display
In display area, you can set different judge methods of image detection result, including quantity,
SC2000 Series Vision Sensor User Manual

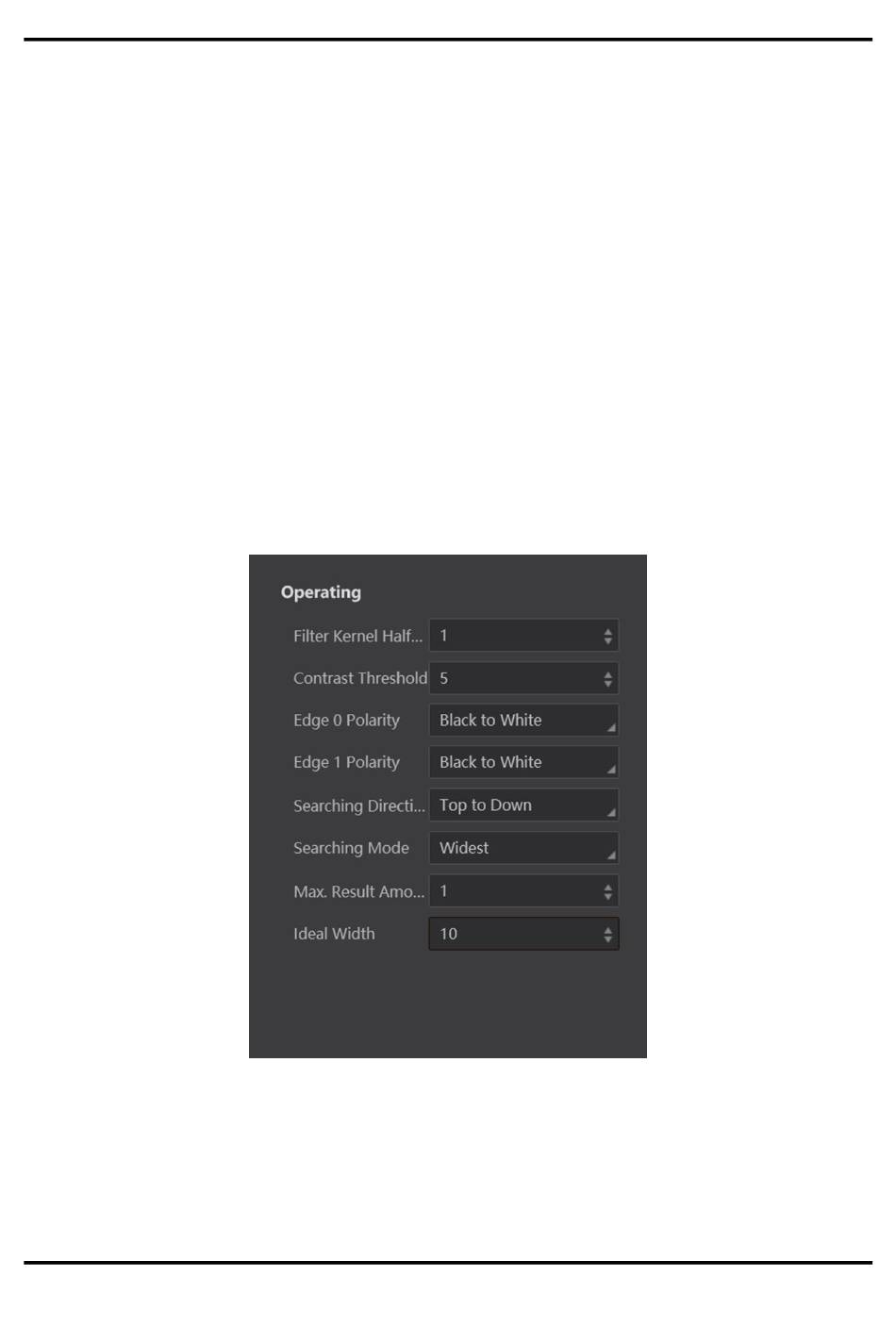

Figure 8-27 Parameter Settings
