L2L Measure - HikRobot SC2000 Series User Manual

In Image Display, click
color, NG color, and transparency.
In OSD, enable Display Test to set text's color, front size, transparency, position X, and position Y.

8.4.8 L2L Measure

In general, two lines are not absolutely parallel, and thus line to line (L2L) measurement distance is
calculated by the average distance from four end points of the line to another line.
You can enter the information of 2 lines to be measured, and the basic parameters are shown
below.
Input Method
It includes by line and by coordinate
Line
If you select by line as input method, you need to link the result of finding line.
X Coordinate of Start Point
If you select by coordinate as input method, you need to link the X and Y coordinates of the
line's start point, and end point.
Y Coordinate of Start Point
If you select by coordinate as input method, you need to link the X and Y coordinates of the
SC2000 Series Vision Sensor User Manual

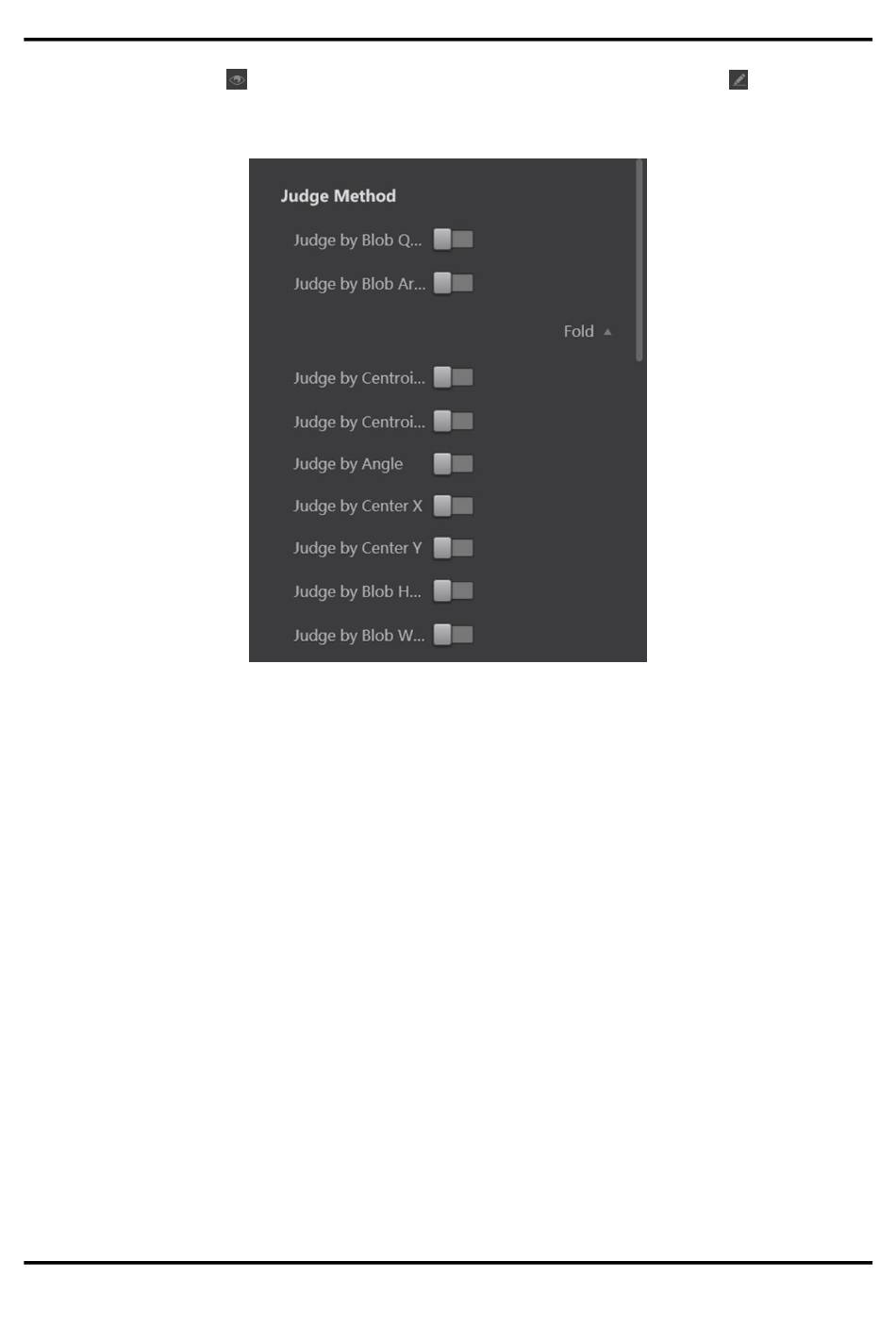

to display or not display Blob and detection area. Click
Figure 8-34 Result Display
53
to edit OK
