line's start point, and end point.
X Coordinate of End Point
If you select by coordinate as input method, you need to link the X and Y coordinates of the
line's start point, and end point.
Y Coordinate of End Point
If you select by coordinate as input method, you need to link the X and Y coordinates of the
line's start point, and end point.
Angle
It refers to the angle difference between two lines.
Result Display
In display area, you can set different judge methods of image detection result, including angle,
distance, intersection point X, and intersection point Y.
In Judge Method, enable Judge by Angle, Judge by Distance, Judge by Intersection Point X, Judge
by Intersection Point Y, and enter corresponding range according to actual demands.
In Image Display, click
Click to edit OK color, NG color, and transparency.
In OSD, enable Display Test to set text's color, front size, transparency, position X, and position Y.
SC2000 Series Vision Sensor User Manual

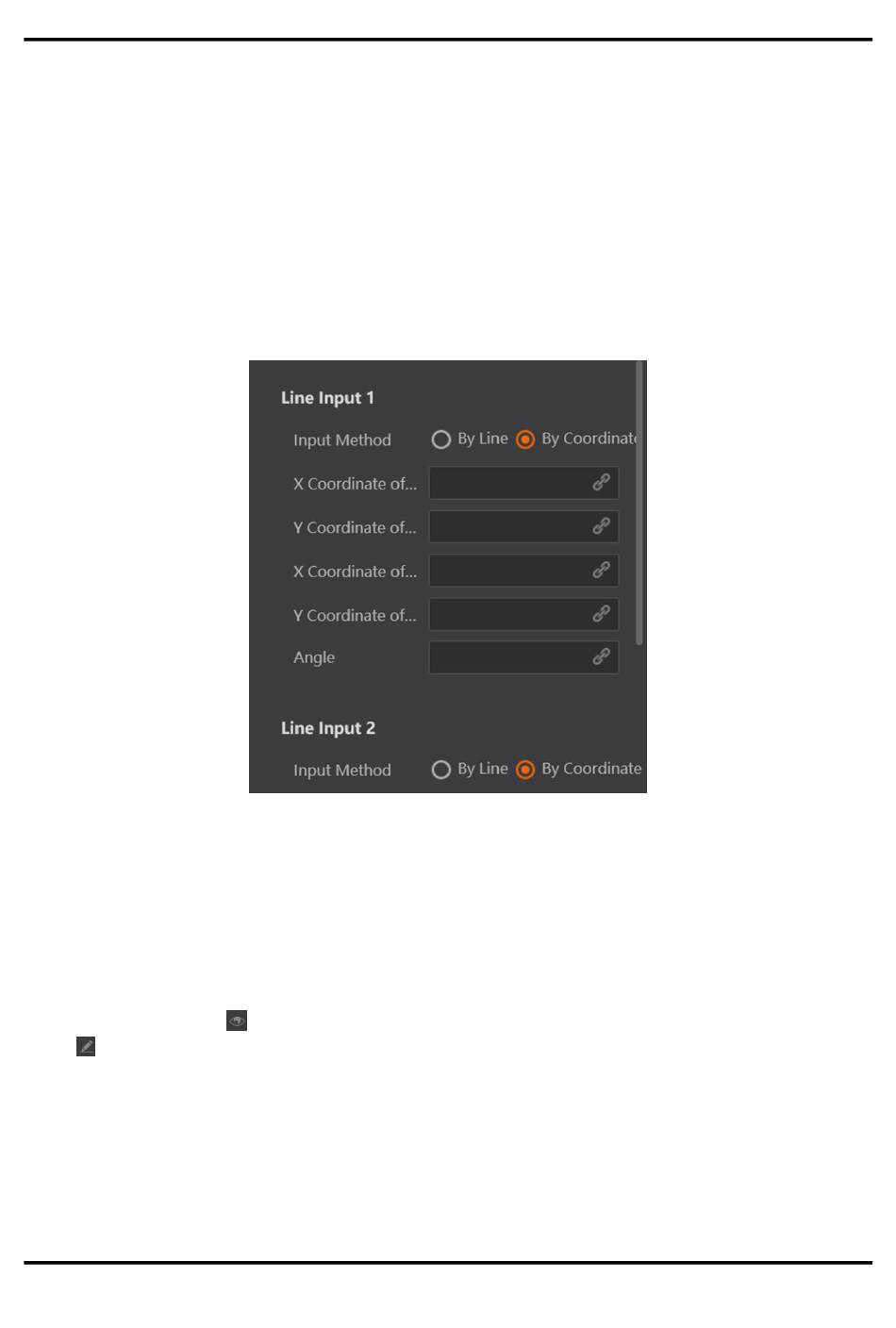

Figure 8-35 L2L Measure
to display or not display input line 1, input line 2 and intersection point.
