It has three types, including Least Squares, huber and tukey. As the number of outliers and the
distance from the group increases, it is recommended to use least squares, huber, and tukey
successively.
Start Angle
It refers to the start angle of circle ROI.
Angle
It refers to the angle range of circle ROI.
Result Display
In display area, you can set different judge methods of image detection result, including radius,
center X, center Y, fit error, etc.
In Judge Method, enable Judge by Radius, Judge by Center X, Judge by Center Y, Judge by Fit
Error, Judge by Fit Points, and enter corresponding range according to actual demands.
In Image Display, click
Click
to edit OK color, NG color, and transparency.
In OSD, enable Display Test to set text's color, front size, transparency, position X, and position Y.
SC2000 Series Vision Sensor User Manual

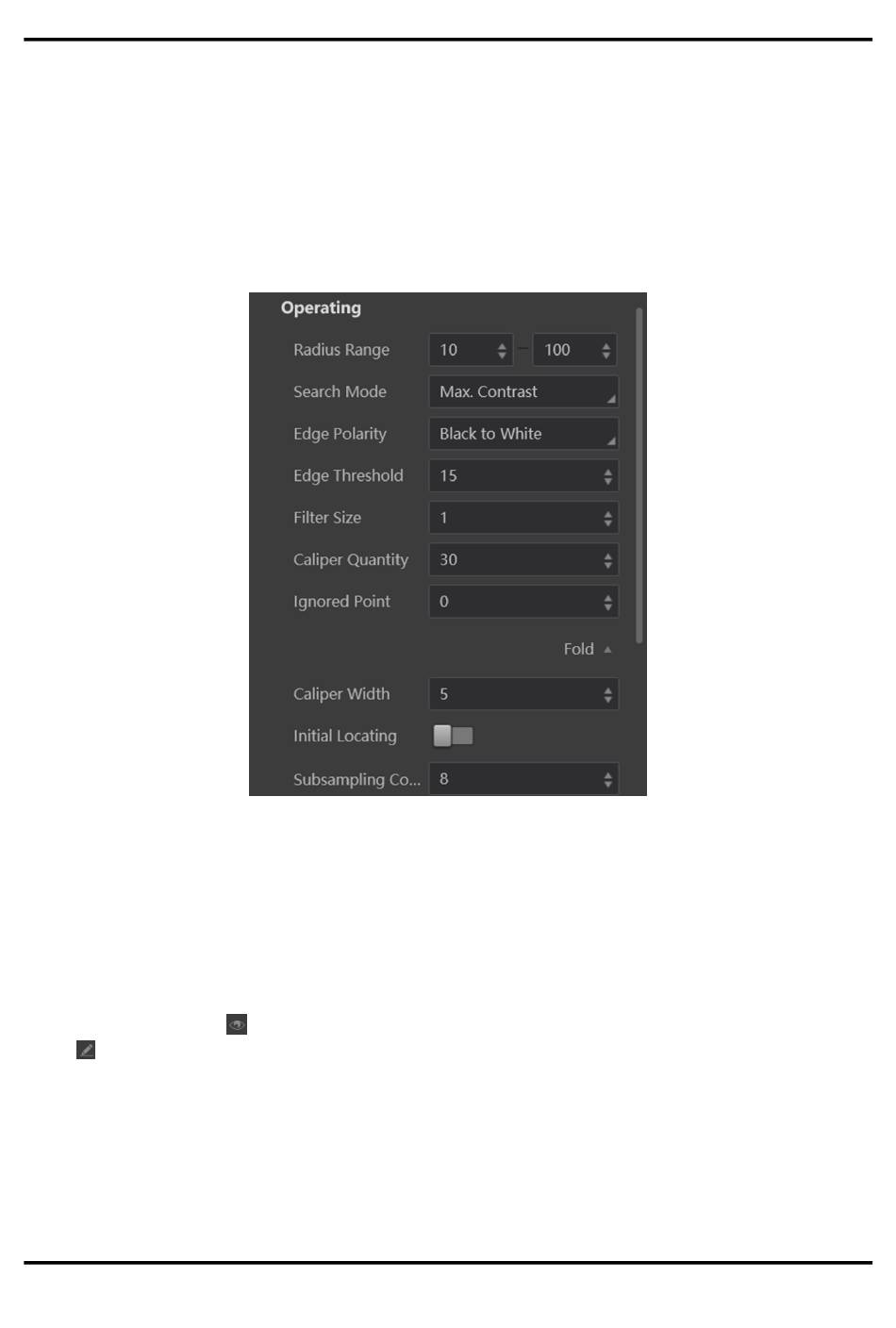

Figure 8-21 Parameter Settings
to display or not display circle result, center point, and detection area.
