Switch
Note
It is recommended to use 330 Ω pull-down resistor.
4.4 Output Signal Wiring
The device can output signal to external device via I/O interface, and here we take one line as an
example to introduce output signal wiring.
Note
● Output signal wiring may differ with different types of external devices.
● You can set device output signal as NPN or PNP via web.
When the device output signal is PNP, it is recommended to use 330 Ω pull-down resistor if NPN
device is connected.
SC2000 Series Vision Sensor User Manual

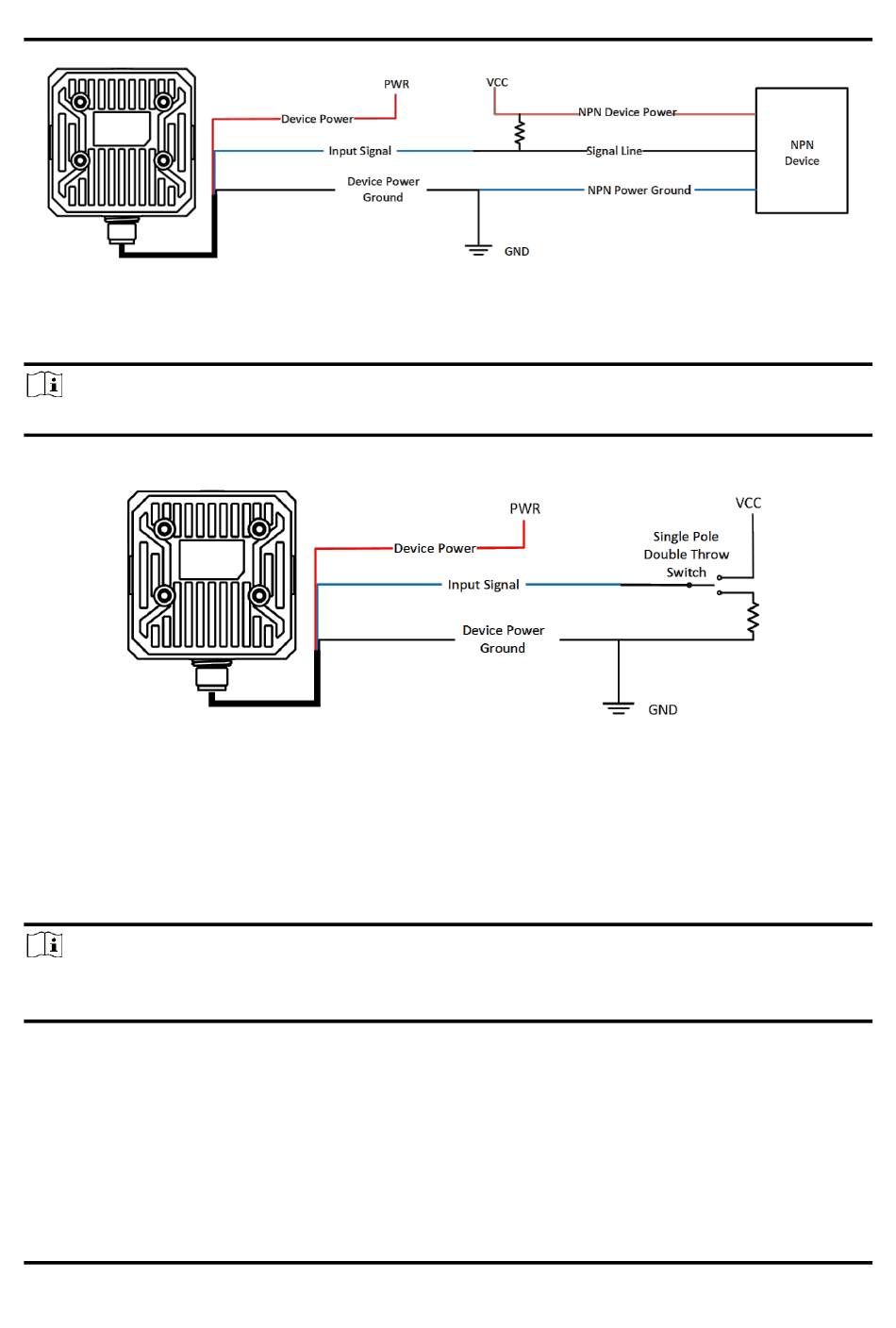

Figure 4-7 Input Signal Connecting to NPN Device
Figure 4-8 Input Signal Connecting to a Switch
11
