SC2000 Series Vision Sensor User Manual

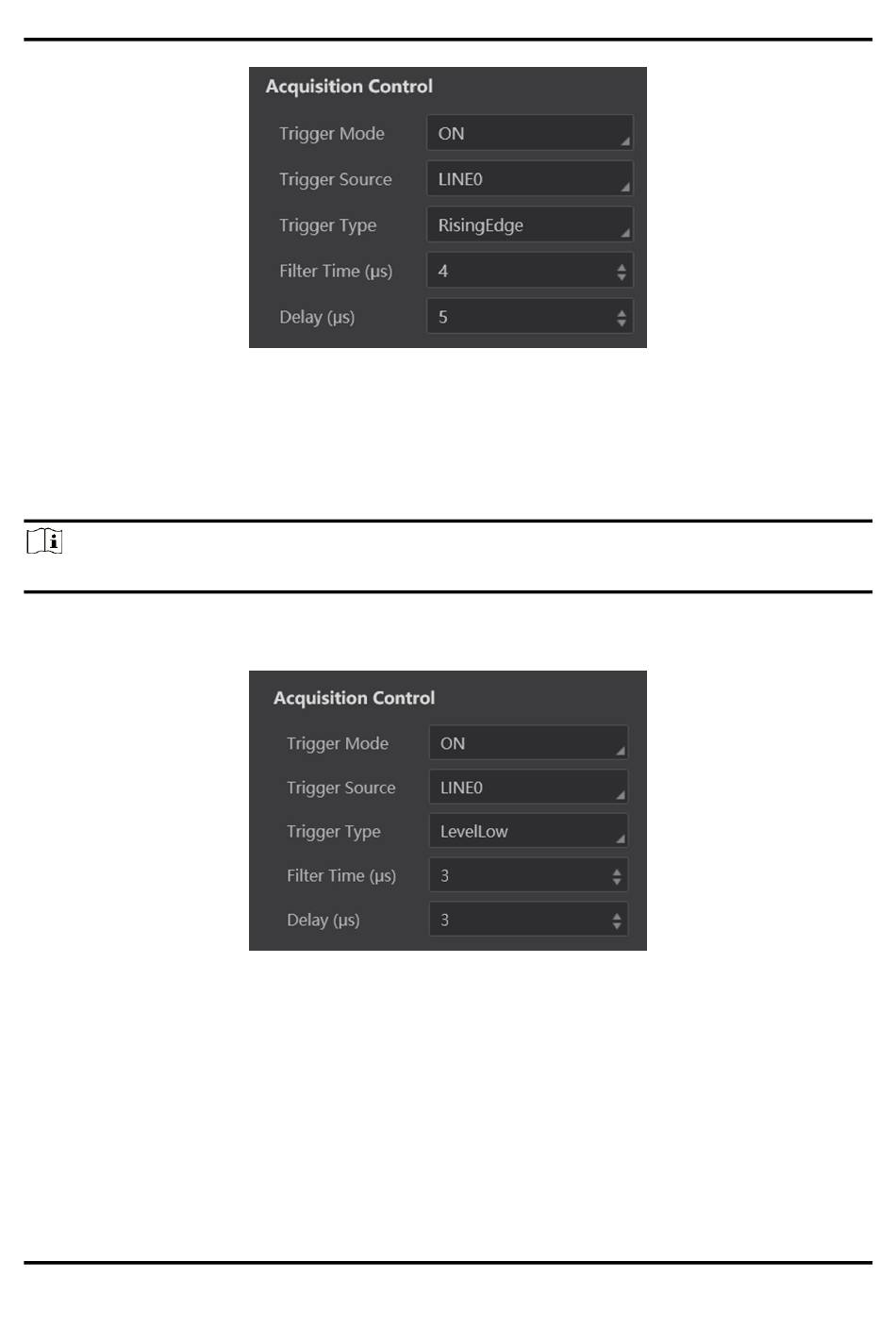

Figure 8-8 Set Trigger Activation
Set Filter Time
The external trigger input signal of the device may have signal bounce that may cause false trigger.
Thus, it is necessary to set filter time.
Note
Filter Time parameter takes effect only when you select line or button as Trigger Source.
Select ON as Trigger Mode, select LINE0, LINE1, LINE2, LINE3, LINE4 or BUTTON as Trigger Source,
and enter Filter Time according to actual demands.
Figure 8-9 Set Filter Time
Set Trigger Delay
The trigger delay function allows the camera to add a delay between the receipt of trigger signal
and the moment the trigger becomes active.
Select ON as Trigger Mode, select LINE0, LINE1, LINE2, LINE3 or LINE4 as Trigger Source, and
enter Delay according to actual demands.
28
