2. Select upgrade file from the local PC, and click OK.
10.3 Synchronize Time
Time synchronization allows you to synchronize device time with that of local PC or server. It
consists of auto mode by Network Time Protocol (NTP) server and manual mode.
Steps
1. Click System → Time Sync..
2. Select time synchronization method.
– Click Manual, select date and time from the calendar, or check Sync. With PC to synchronize
the time of the device with that of the local PC.
– Click NTP, enter Server Add., NTP Port, and Interval (Hour).
3. Click Save.
SC2000 Series Vision Sensor User Manual

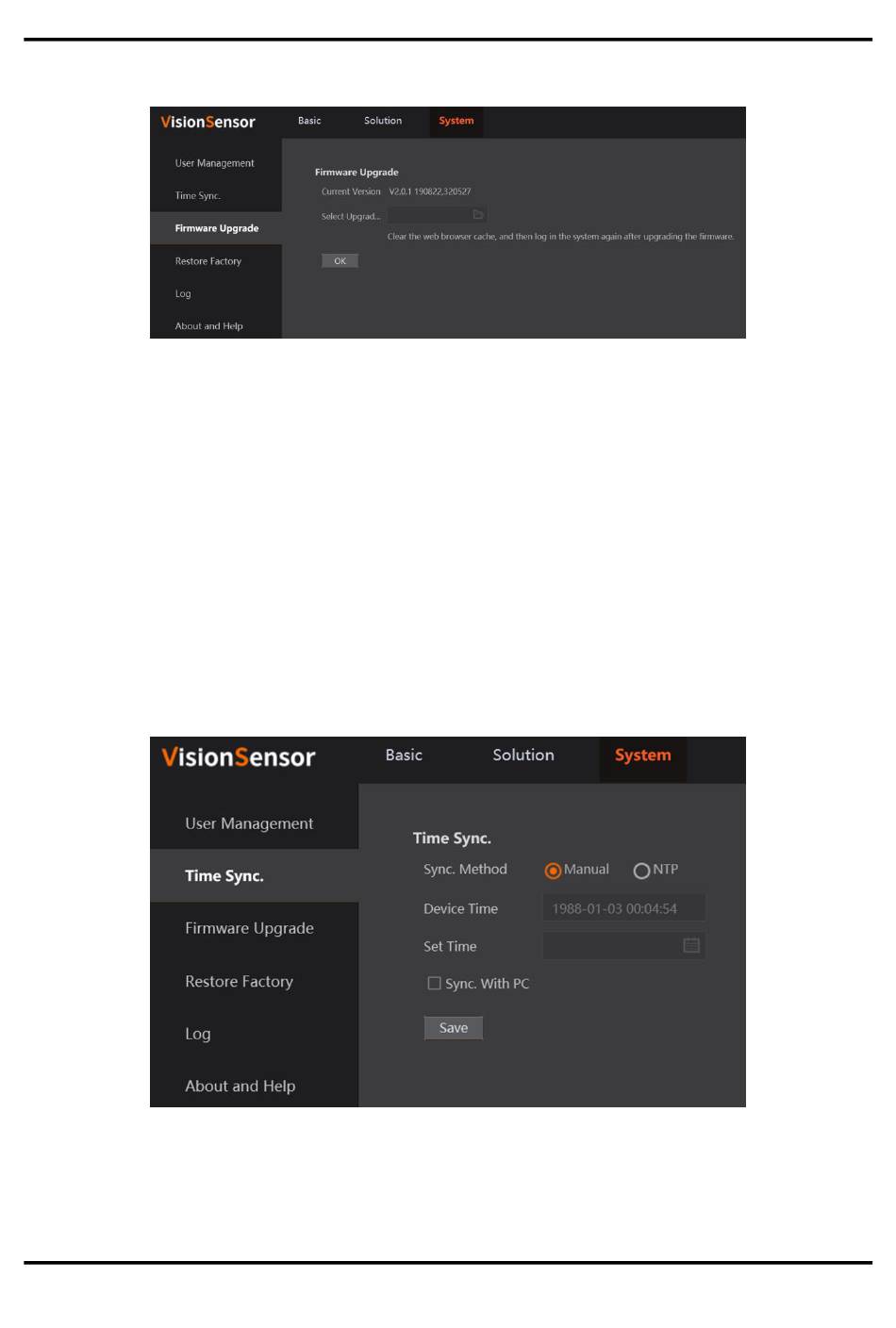

Figure 10-3 Update Firmware
Figure 10-4 Manual Time Synchronization
71
