No.
16
DI_0
17
DI_1
Note
● You should refer to the table above and the label attached to the power and I/O cable to wire
the device.
● It is recommended to use the supplied 17-pin cable. The 6th, 7th, 14th, and 15th pin have been
made as RJ45 connector. The lines of other pins should be wired according to the actual
demands.
3.2 RS-232 Interface
The device supports RS-232 serial port output, and you can set serial port parameters in client
software. The solution result will be transmitted to the PC via the serial port.
SC2000 Series Vision Sensor User Manual
Signal
I/O Signal Source
Line 0 signal line
Line 1 signal line

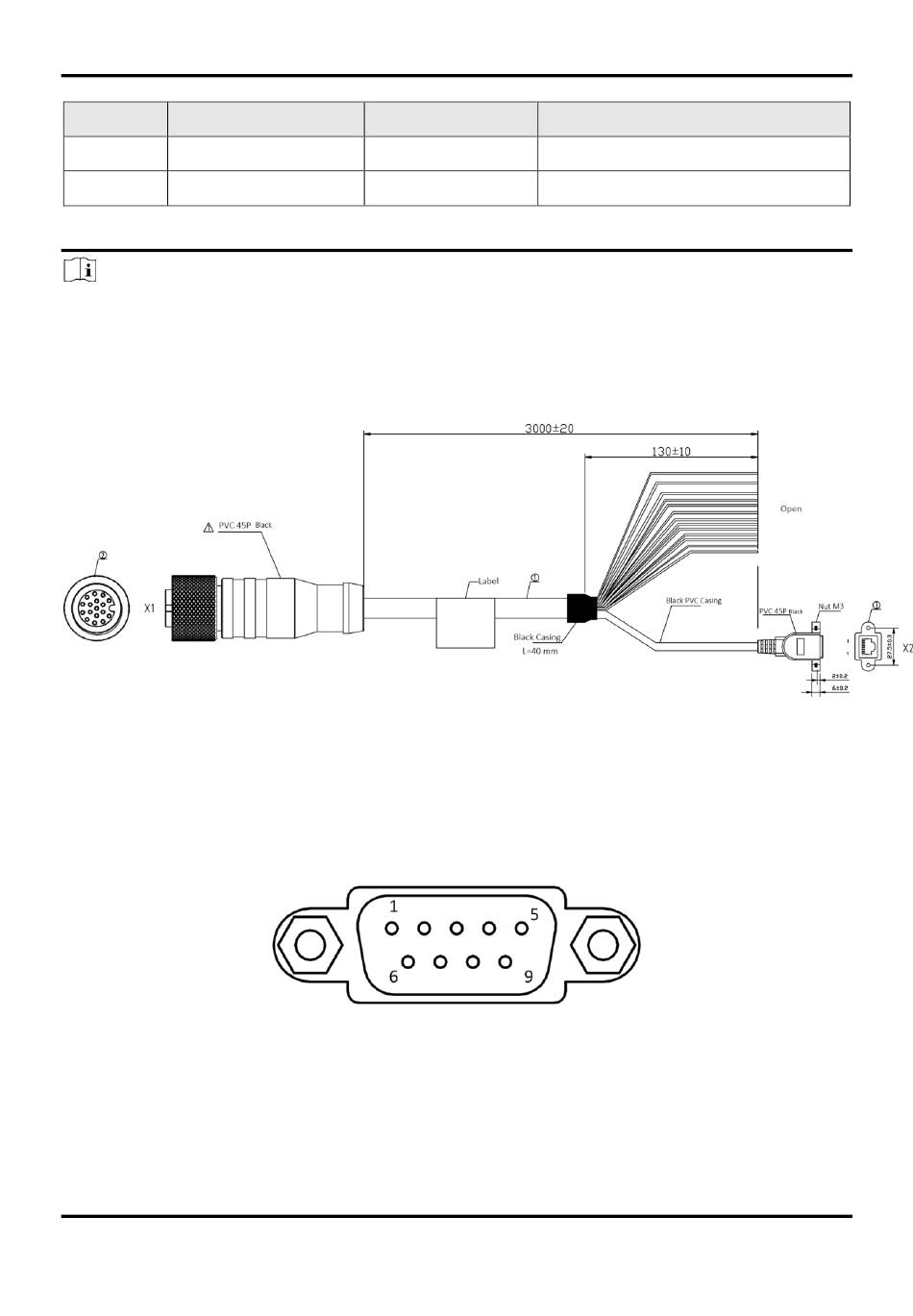

Figure 3-2 17-Pin Cable
Figure 3-3 9-Pin Interface
Opto-isolated input
Opto-isolated input
5
