8.4.5 Find Edge Width
This tool finds edges, and measures spacing between two edges in accordance with ROI direction.
Image Source
By default, the image source is the images acquired by the device.
Shape
You can use
to maximize the ROI (Region of Interest), or use
Note
● Before drawing ROI, you need to stop solution operation.
● After drawing ROI, you need to click Apply.
● The ROI can be rectangle only.
Fixture
After enabling it, you can subscribe fixture tool. See Fixture Settings for details.
Note
If you want to use fixture tool in detecting distance, you should set fixture tool first.
SC2000 Series Vision Sensor User Manual

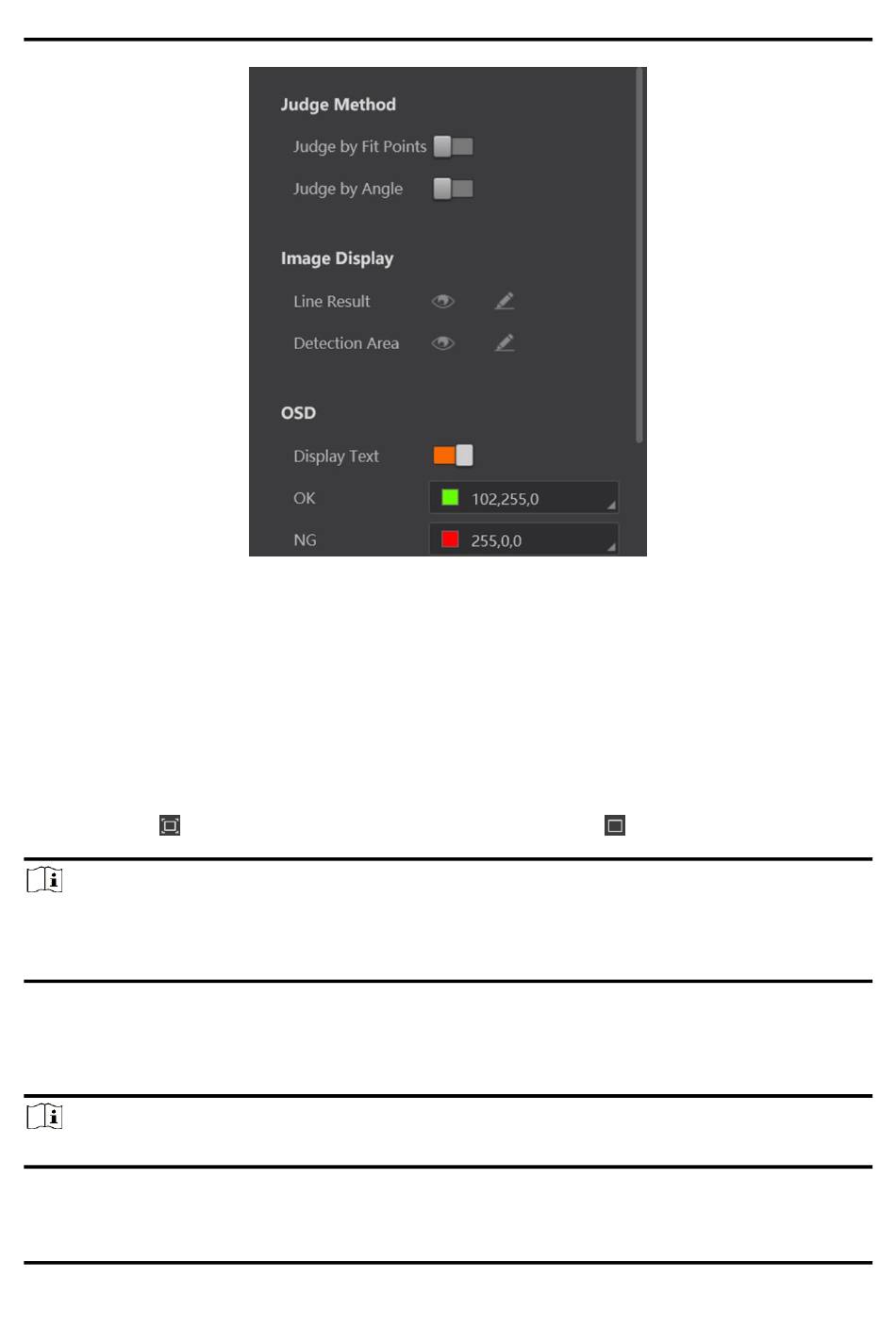

Figure 8-25 Result Display
44
to draw the ROI.
