8.2 Image Acquisition Settings

This section introduces how to set image acquisition related parameters, such as acquisition mode,
trigger mode, trigger source, etc.

8.2.1 Set Trigger Mode

The device has 2 types of trigger mode, including internal trigger mode and external trigger mode.
OFF refers to internal trigger mode, and ON refers to external trigger mode.
Internal Trigger Mode
In this mode, the device acquires images via its internal signals.
External Trigger Mode
In this mode, the device acquires images via external signals like software signal, hardware
signal, communication string, etc. The trigger source of external trigger mode includes software
trigger, hardware trigger, button trigger, and communication trigger.

8.2.2 Enable Internal Trigger Mode

Go to Solution → Camera → Trigger → Trigger Mode to select OFF as Trigger Mode.
Note
OFF refers to the internal trigger mode.

8.2.3 Enable External Trigger Mode

Go to Solution → Camera → Trigger → Trigger Mode to select ON as Trigger Mode.
Note
ON refers to the external trigger mode.
SC2000 Series Vision Sensor User Manual

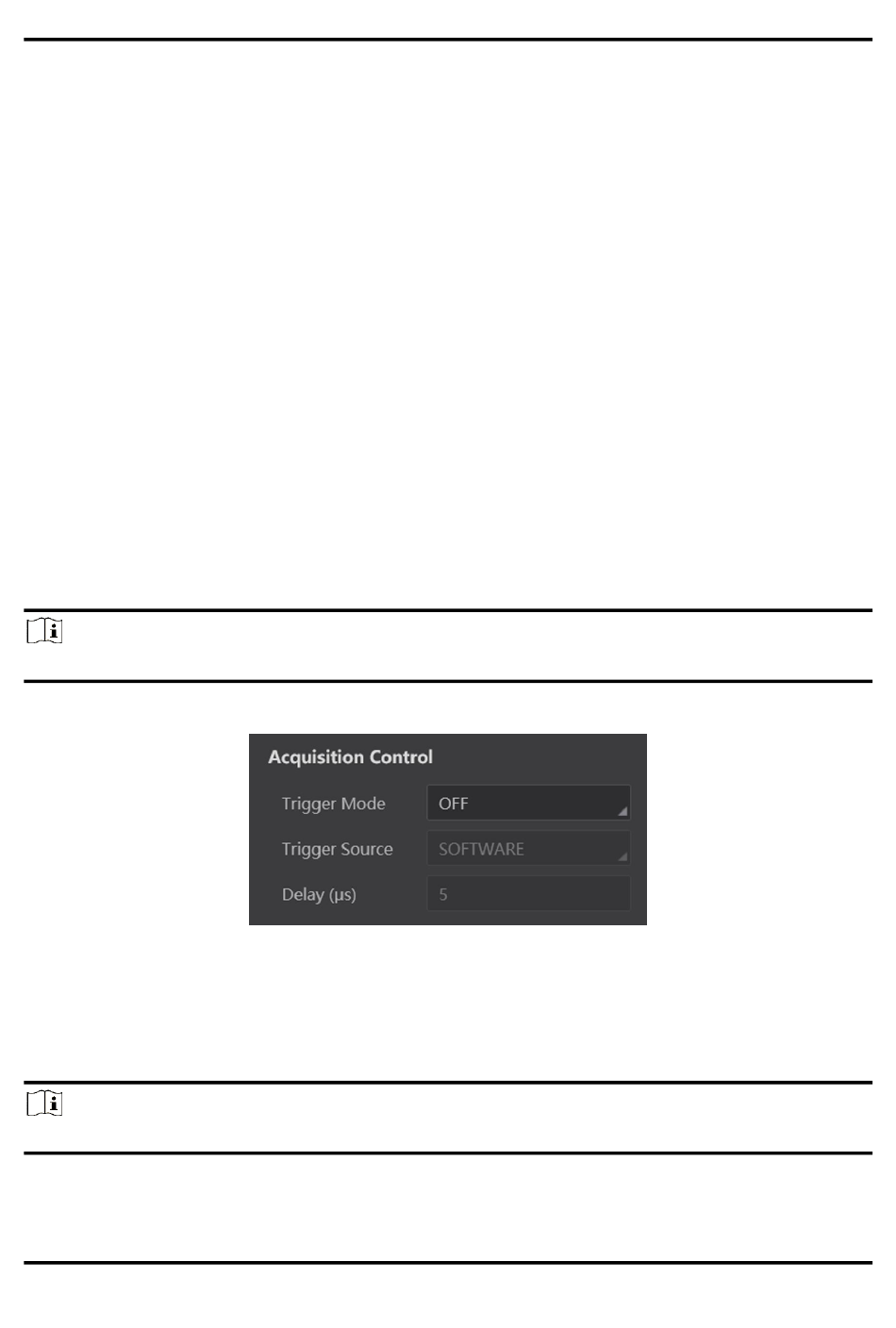

Figure 8-4 Enable Internal Trigger Mode
25
