Note
For new solution, it is recommended to click Create to create feature template.
Create Feature Template
Steps
1. Click Create to create template.
2. Click Select Current or Select Others as template.
3. Click to create rectangle mask.
4. Click to select the matching point location, and move the blue cross in the image to the
ideal location.
5. Click to create template.
6. Optional: Click
7. Enter Feature Scale and Threshold according to actual demands.
Note
● Feature Scale refers to the fineness level of the feature, and it can be set between 0 and 200.
The larger the feature scale, the sparser the extracted feature edge points are. It is
recommended to use the default value (0) that is adaptive roughness scale.
● Threshold refers to the gray value difference between the feature point and the surrounding
background, and it can be set between 0 and 255. The min. threshold value cannot be larger
than the max. threshold value. If the image threshold is not within the configured range, and
it is not the feature. It is recommended to use the default value (0-0) that is adaptive
threshold.
8. Click OK.
SC2000 Series Vision Sensor User Manual
to download the current template to the PC.

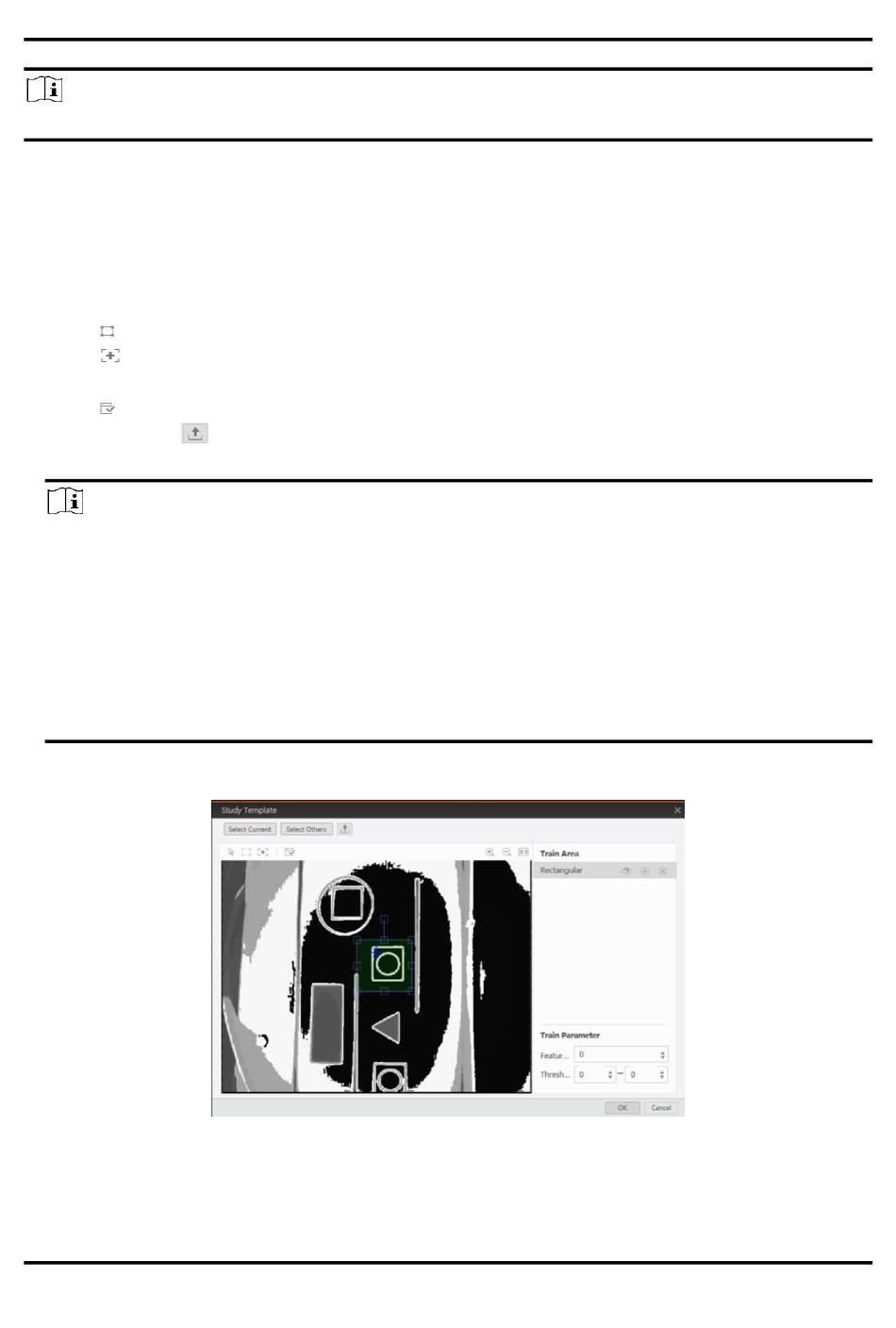

Figure 8-15 Create Feature Template
