8.5.5 IO Communication

The IO communication allows you to output solution result via IO. The device has 3 configurable
outputs, including IO5, IO6, and IO7. You can also go to Solution → Camera → Trigger → Digital IO
Control, select LINE2, LINE3, or LINE4 as IO Control, and select OUTPUT as IO Mode to add line to
IO communication.
Note
One IO module can set multiple IO statuses, but one solution supports one IO module at most.
Output Condition
It links the results of previous module.
Duration
It refers to the duration of outputting IO signal.
Delay Time
It refers to the waiting time after the vision sensor receives IO output signal.
Valid Electrical Level
The default value means the level low. You can select Reverse to reverse electrical level.
Output Type
It includes Output (OK) and Output (NG). Output (OK) means when the solution result is OK,
SC2000 Series Vision Sensor User Manual

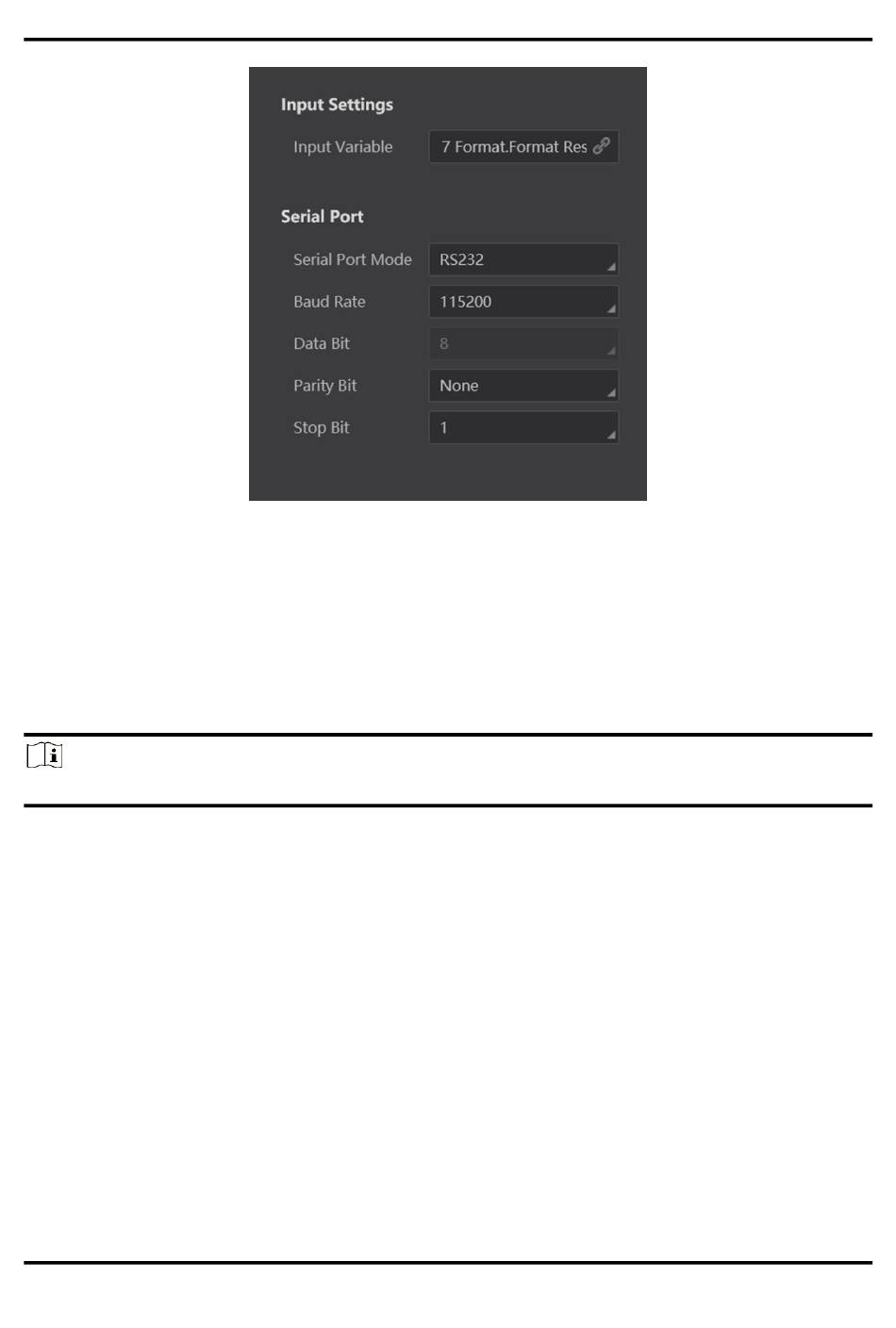

Figure 8-42 Serial
