In solution settings module, if you want to configure a solution, you need to set camera
parameters, tool parameters, output parameters, and save solution in finish interface.
8.1 Camera Settings
8.1.1 Set Frame Rate
Go to Solution → Camera → Common → Frame Rate to set frame rate and view actual frame rate.
Note
● If the parameter is smaller than the max. frame rate of the device, the exposure will be ignored.
The max. frame rate of the device can reach the configured frame rate.
● If the parameter is larger than the max. frame rate of the device, and without considering other
factors, the device frame rate cannot reach the configured frame rate, and can reach the max.
frame rate of the device itself only.
8.1.2 Set Gain
The device supports 3 types of Gain Mode, including OFF, ONCE and CONTINUOUS.
Go to Solution → Camera → Common → Gain Mode to select gain mode and enter gain.
SC2000 Series Vision Sensor User Manual
Chapter 8 Solution Settings

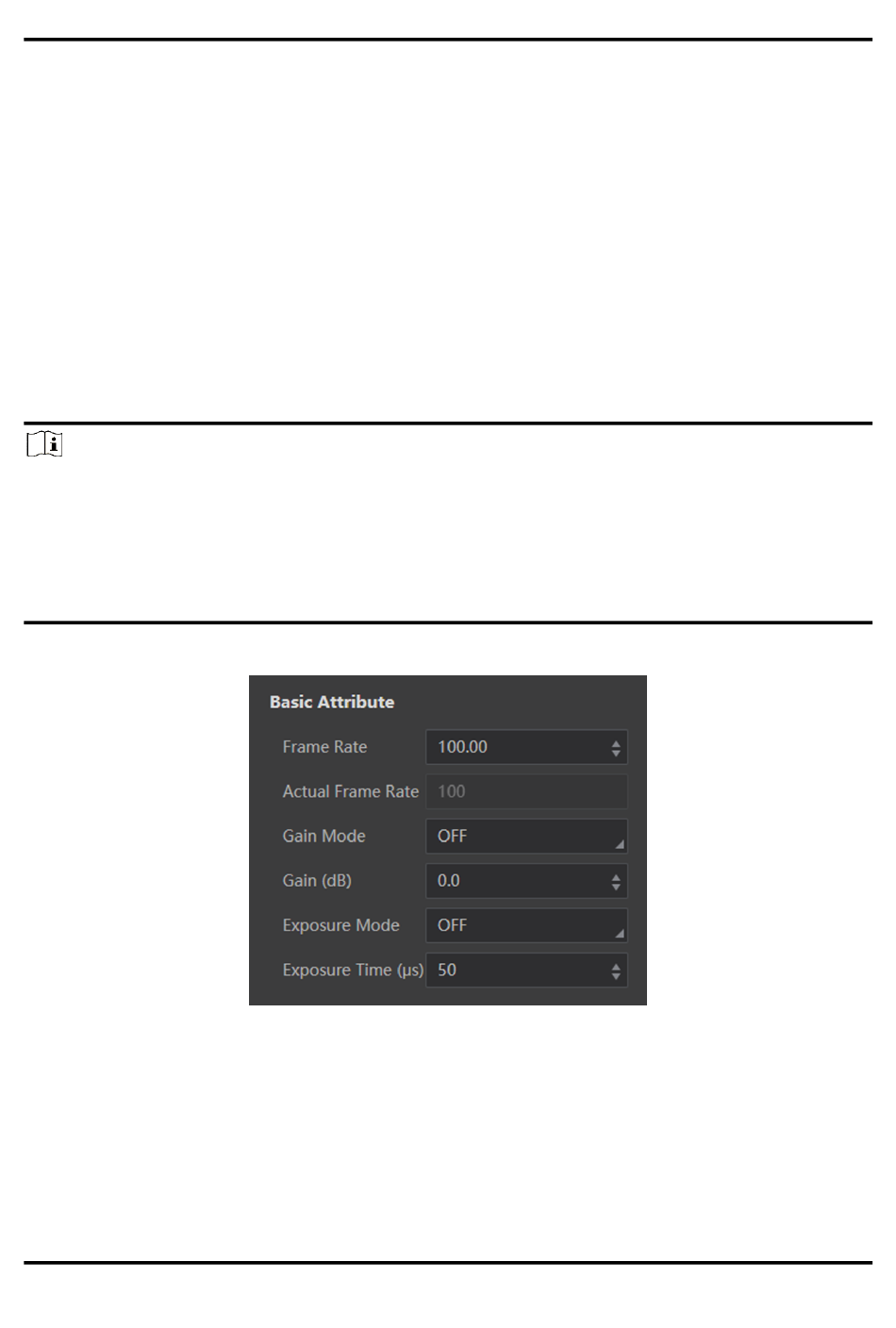

Figure 8-1 Set Frame Rate
21
