Figure 8-5 Enable External Trigger Mode
Set and Execute Software Trigger Mode
Steps
1. Select ON as Trigger Mode.
2. Select SOFTWARE as Trigger Source.
3. Click Software Trigger in Software Trigger to send trigger commands.
4. Enter Delay time according to actual demands.

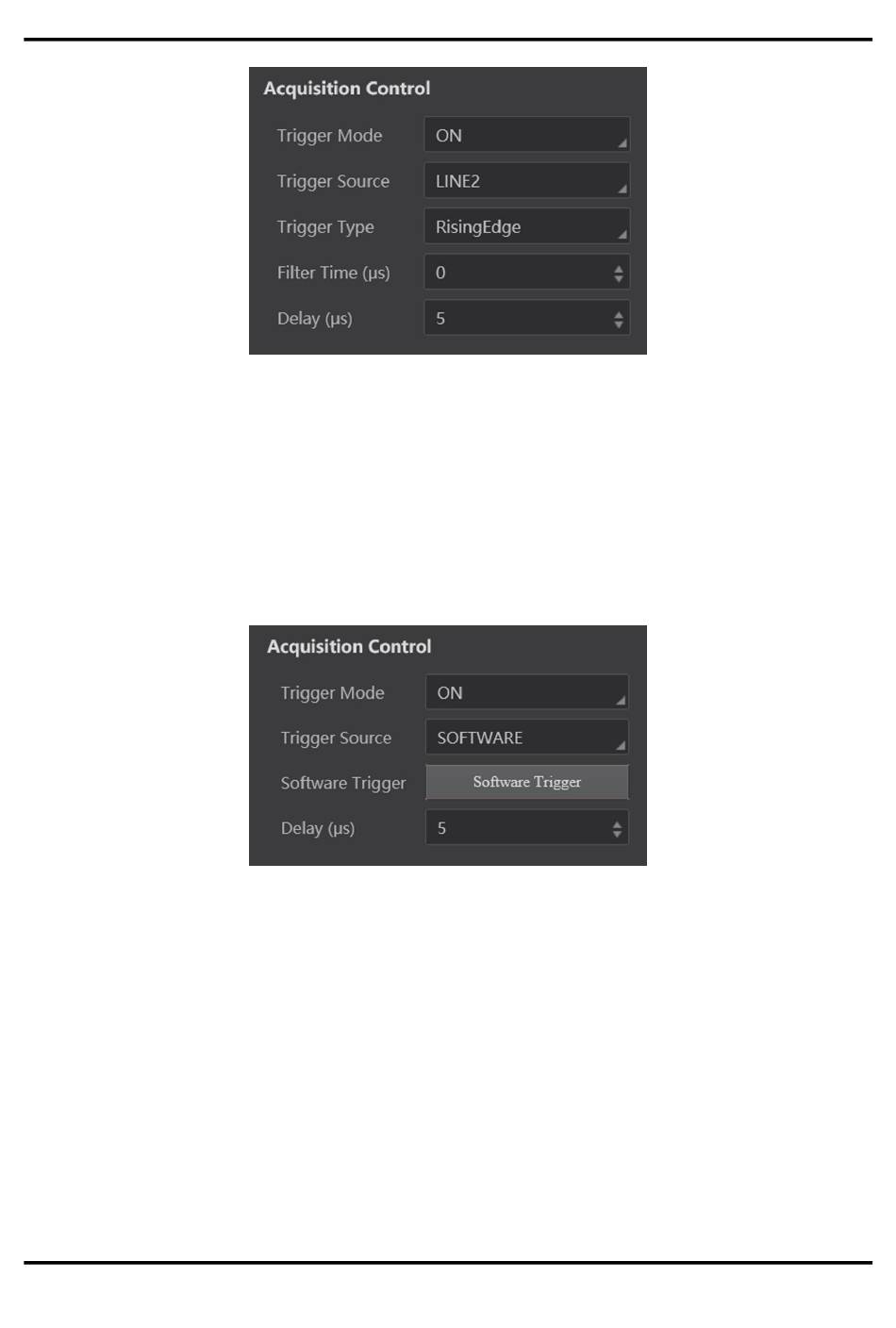

Figure 8-6 Set and Execute Software Trigger Mode
Set and Execute Hardware Trigger Mode
Steps
1. Select ON as Trigger Mode.
2. Select LINE0, LINE1, LINE2, LINE3 or LINE4 as Trigger Source.
26
