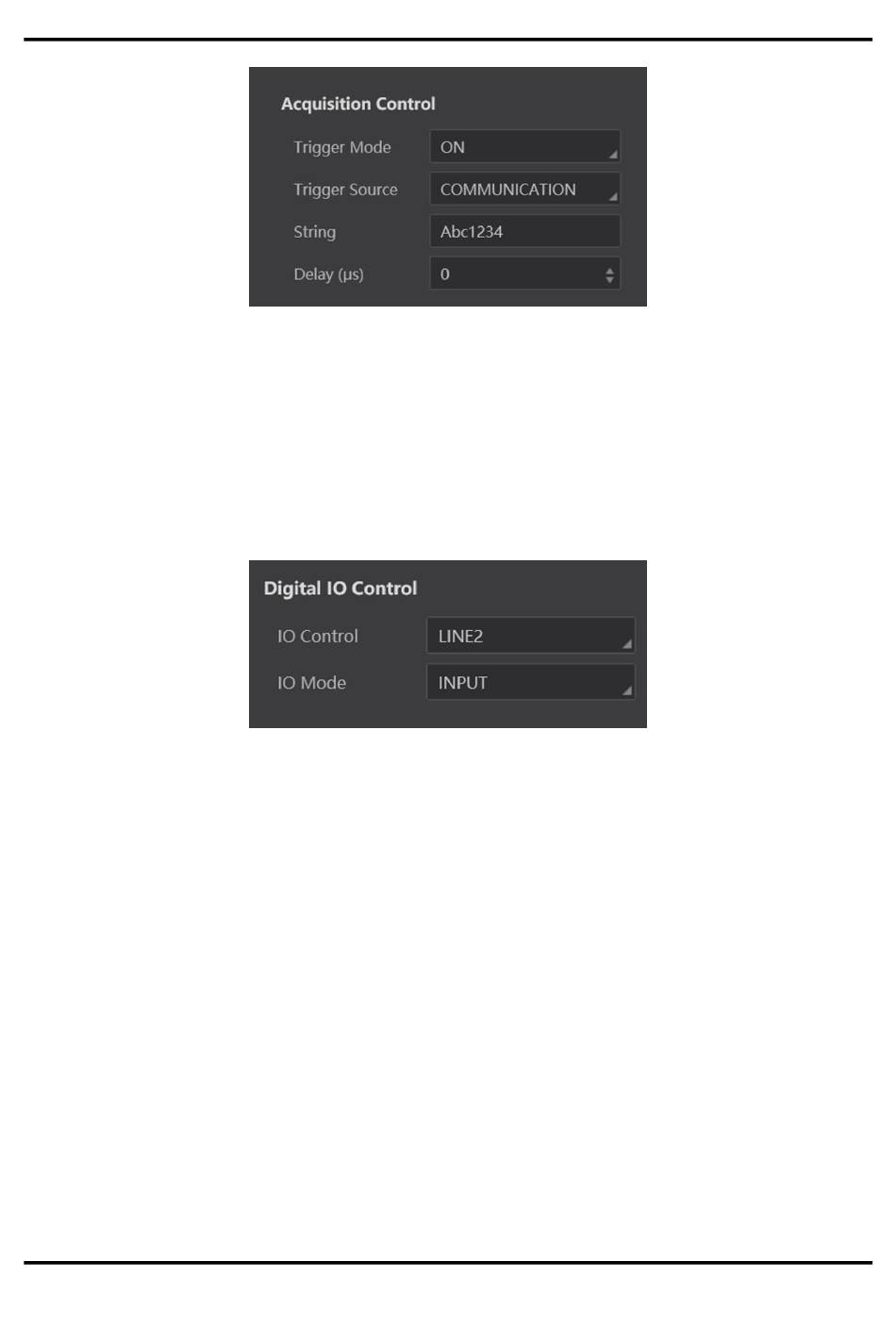

Figure 8-12 Enable Communication Trigger Mode

8.3 Input and Output (IO) Settings

Digital IO control function allows you to set input or output for specific line.
Go to Solution → Camera → Trigger → Digital IO Control.
Select LINE2, LINE3, or LINE4 as IO Control according to actual demands, and select INPUT or
OUTPUT as IO Mode for the line selected in IO Control.
Figure 8-13 Input and Output (IO) Settings

8.4 Tool Settings

The tool settings have 2 types of tools, including location tools and check tools. You can use Match
Trait, Find Circle, Blob module and others to extract the features of detected objects. You can also
use Detect Distance, Measure Brightness, Measure L2L and others to measure detected objects.
Go to Solution → Tool, and double click the tool you want to use.

8.4.1 Feature Matching

This tool uses the edge feature of the image as a template to determine the search space in
accordance with the preset parameters, and to search targets that are similar to the template in
images.
Image Source
By default, the image source is the images acquired by the device.
