Width Deviation and Height Deviation
It indicates the starting location of the upper left corner of the ROI area, that is, the deviation in
the X direction and Y direction. This parameter adjusts the location of the ROI frame.
Note
Image width + width deviation <= width max. value. Image height + height deviation <= height
max. value.
W-H Conversion
This parameter is 1 by default, and it sets the relation between image coordinates and physical
coordinates, that is, a pixel on the image represents the length in actual physical position.
Gamma
Gamma correction provides a non-linear mapping mechanism. When Gamma value is between
is 0 and 1, image brightness increases, and dark area becomes brighter. When Gamma value is
between 1 and 4, image brightness decreases, and dark area becomes darker.
SC2000 Series Vision Sensor User Manual

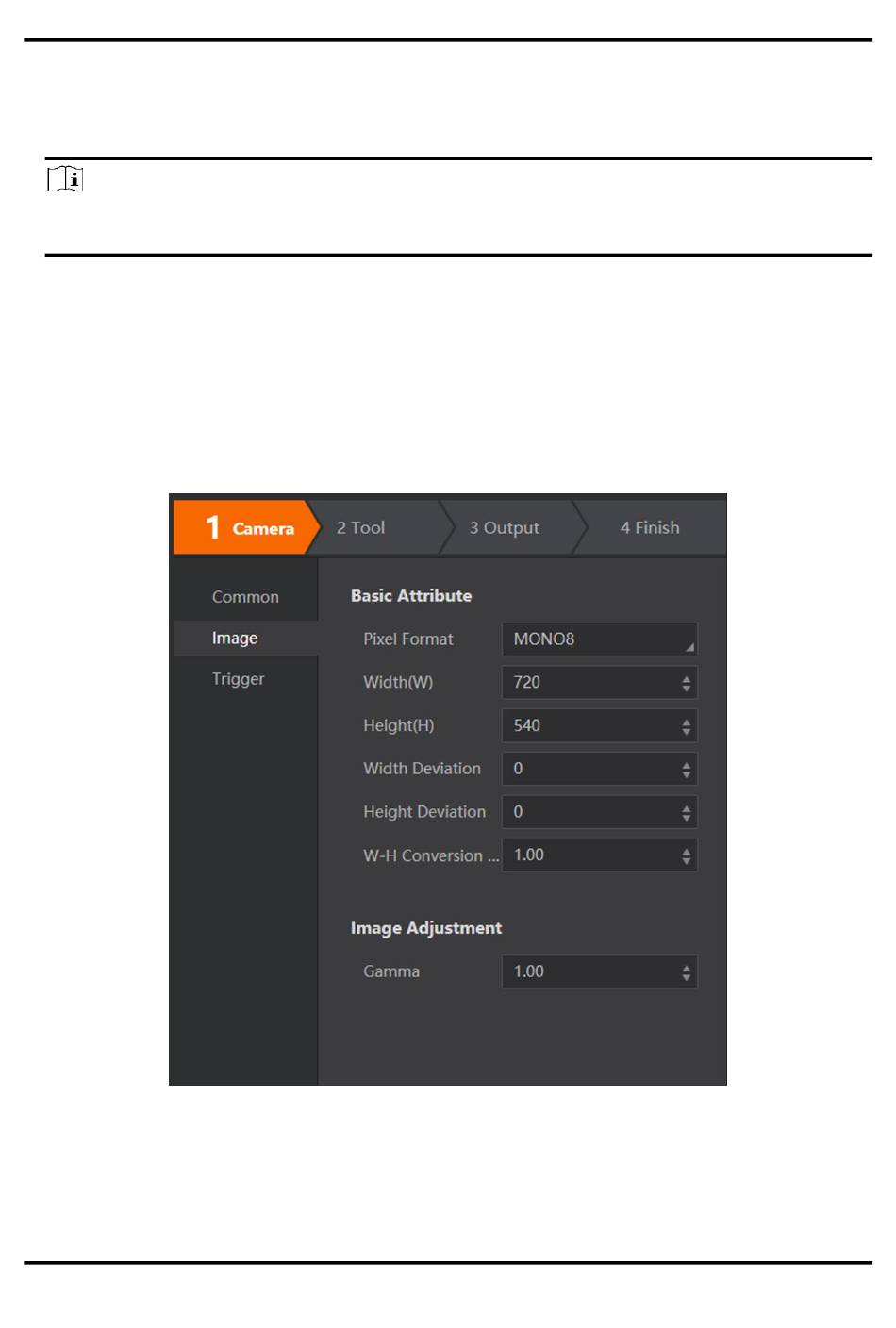

Figure 8-3 Set Image
