HikRobot SC2000 Series User Manual page 61

SC2000 Series Vision Sensor User Manual

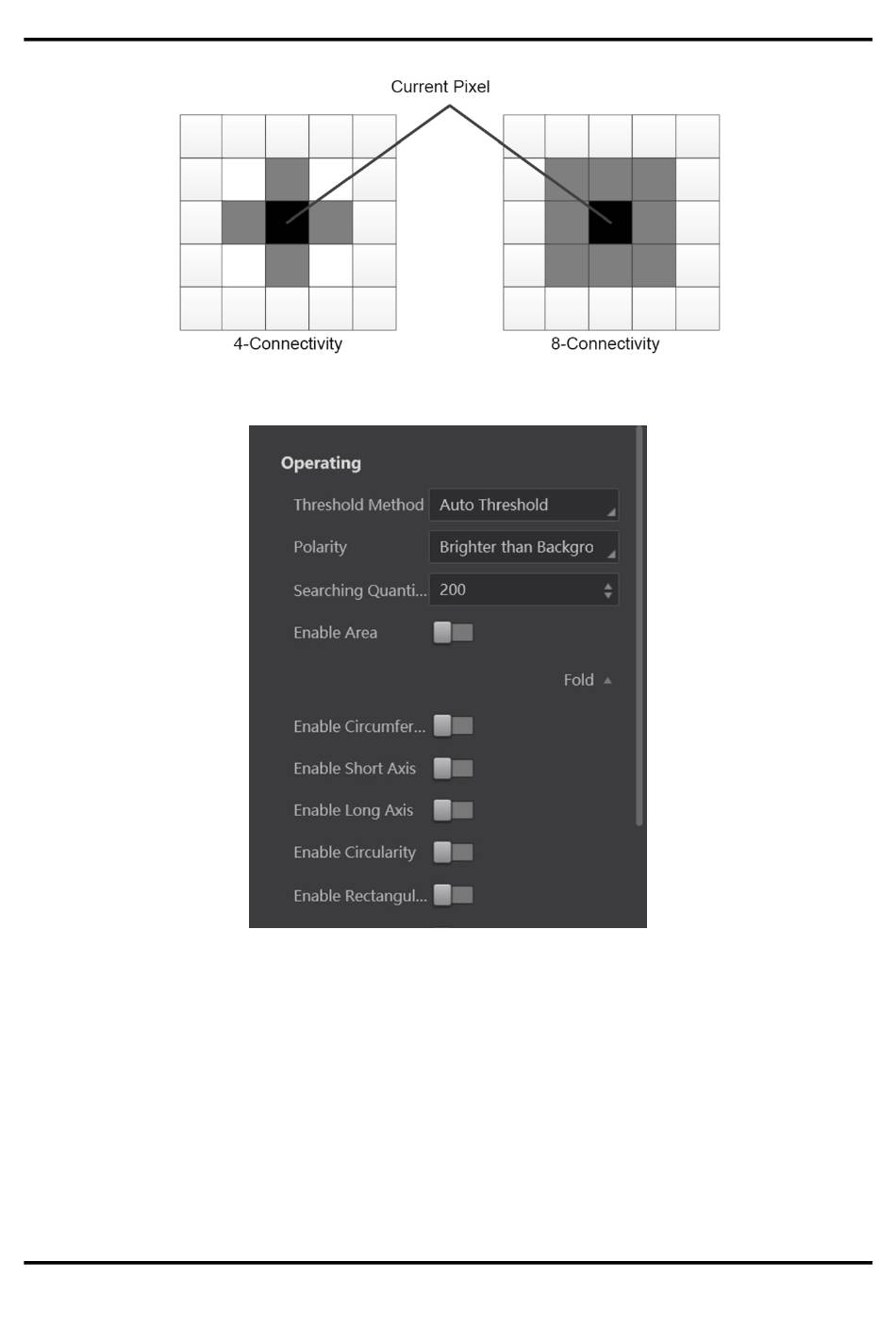

Figure 8-32 Connectivity
Figure 8-33 Parameter Settings
Result Display
In display area, you can set different judge methods of image detection result, including Blob
quantity, Blob area, centroid X, centroid Y, angle, center X, center Y, etc.
In Judge Method, enable Judge by Blob Quantity, Judge by Blob Area, Judge by Centroid X, Judge
by Centroid Y, Judge by Angle, Judge by Center X, Judge by Center Y, Judge by Blob Height, Judge
by Blob Weight, Judge by Circumference, Judge by Long Axis, Judge by Short Axis, Judge by
Circularity, Judge by Rectangularity, and enter corresponding range according to actual demands.
