No.
1
17-Pin Interface
2
Focus Knob
3
OK/NG Indicator
4
Lens Cap
SC2000 Series Vision Sensor User Manual
Chapter 2 Appearance

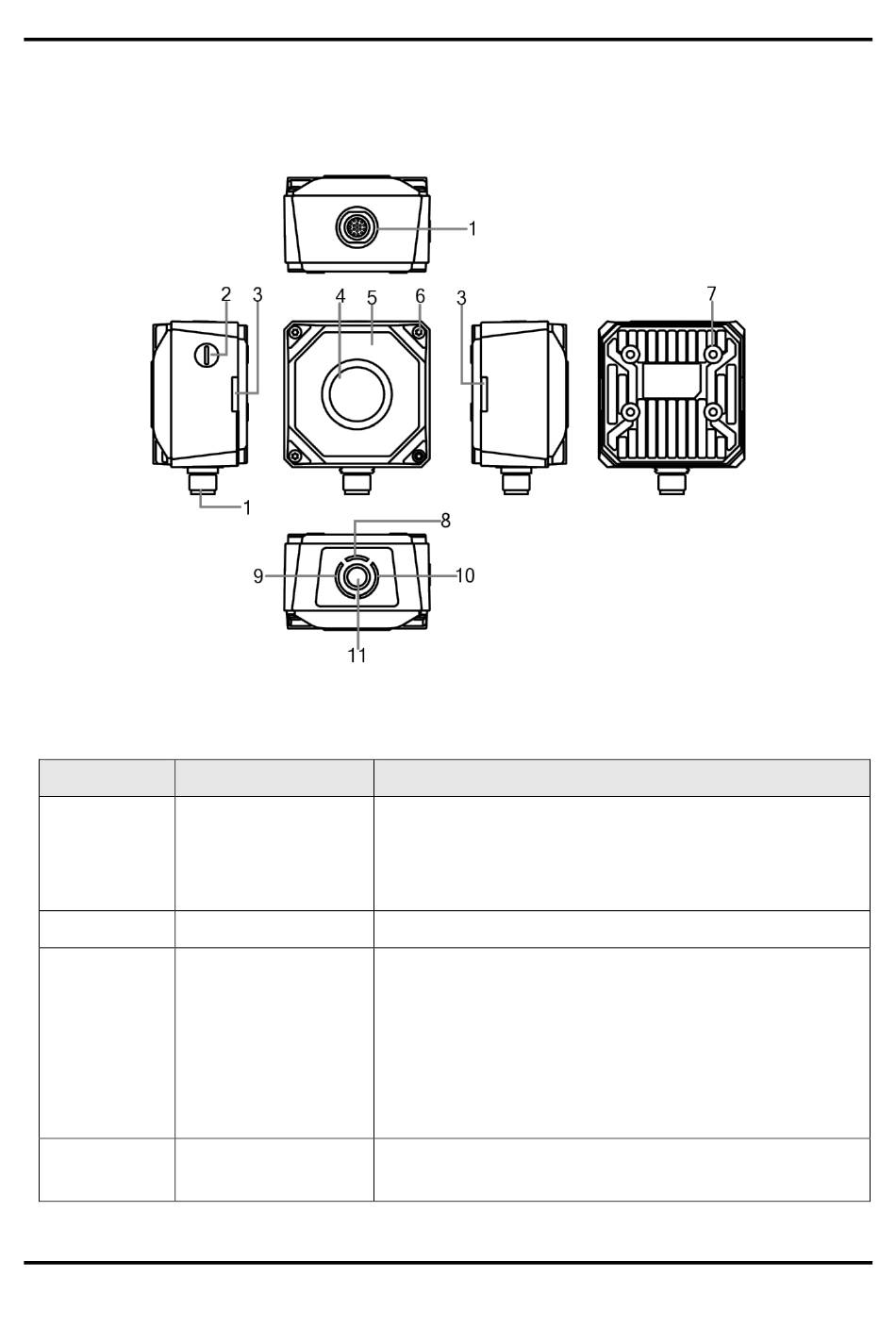

Figure 2-1 Appearance
Table 2-1 Description
Name
It provides power, input/output, Ethernet, and serial
port signal. The interface is designed with screw
threads to tighten connection between the device and
cable, and thus avoiding influence caused by vibration.
It is used to adjust focal length manually.
It indicates the result of solution.
● The green indicator lights when the solution result is
OK.
● The red indicator lights when the solution result is
NG.
● When switching solutions, the indicators both light.
After switching, the indicators both are unlit.
It can be replaced with other lens cap. Polarization lens
cap is optional.
Description
