SC2000 Series Vision Sensor User Manual

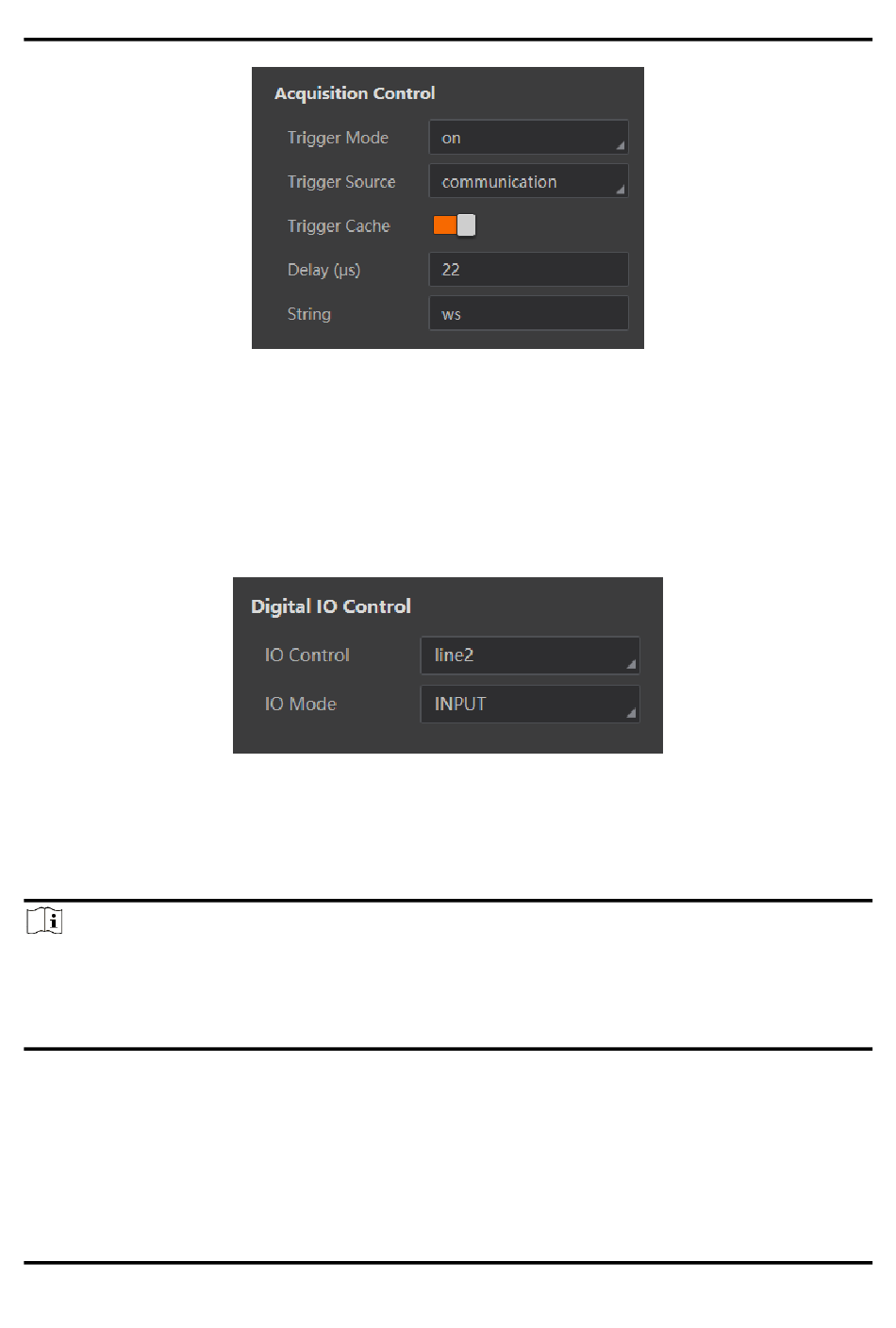

Figure 7-9 Enable Communication Trigger

7.3 Input and Output (IO) Settings

Digital IO control function allows you to set input or output for specific line.
Go to Digital IO Control, select specific lines as IO Control according to actual demands, and set
INPUT or OUTPUT as IO Mode for the line selected in IO Control.
Figure 7-10 Input and Output (IO) Settings

7.4 Tool Settings

Note
● Available tools may differ by device models.
● The tools of feature matching, finding circle, finding line, brightness measurement, blob, finding
edge width require the image sources are mono ones.
● The specific parameter names and values may differ by device models and firmware versions.
Tool settings allows you to add different vision tools for measurement, location, counting,
calibration, etc. After tool adding, you can set their corresponding parameters, save and download
solutions.
25
