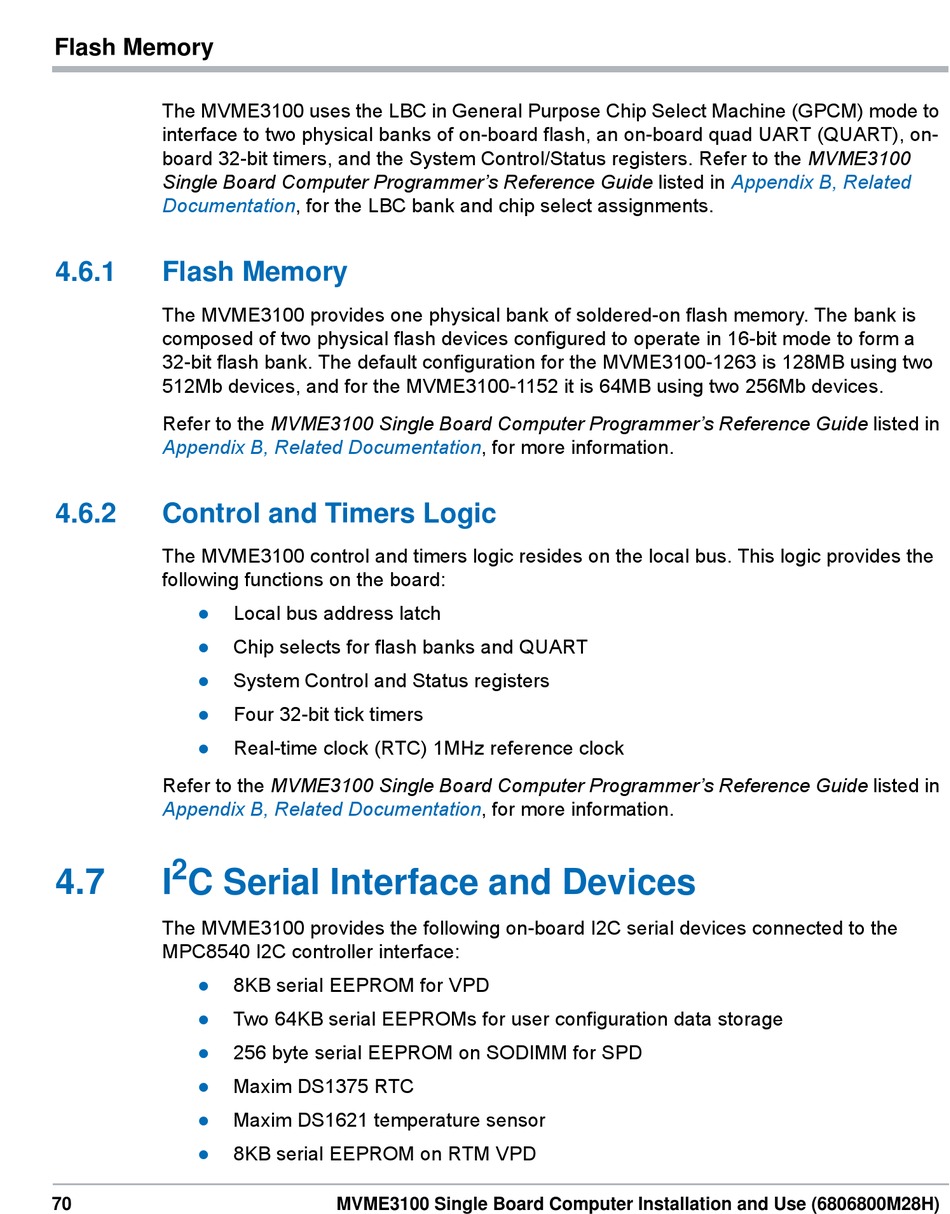

Flash Memory

The MVME3100 uses the LBC in General Purpose Chip Select Machine (GPCM) mode to
interface to two physical banks of on-board flash, an on-board quad UART (QUART), on-
board 32-bit timers, and the System Control/Status registers. Refer to the MVME3100
Single Board Computer Programmer's Reference Guide listed in
Documentation, for the LBC bank and chip select assignments.
4.6.1 Flash Memory
The MVME3100 provides one physical bank of soldered-on flash memory. The bank is
composed of two physical flash devices configured to operate in 16-bit mode to form a
32-bit flash bank. The default configuration for the MVME3100-1263 is 128MB using two
512Mb devices, and for the MVME3100-1152 it is 64MB using two 256Mb devices.
Refer to the MVME3100 Single Board Computer Programmer's Reference Guide listed in
Appendix B, Related
4.6.2

Control and Timers Logic

The MVME3100 control and timers logic resides on the local bus. This logic provides the
following functions on the board:
Local bus address latch

Chip selects for flash banks and QUART

System Control and Status registers

Four 32-bit tick timers

Real-time clock (RTC) 1MHz reference clock

Refer to the MVME3100 Single Board Computer Programmer's Reference Guide listed in
Appendix B, Related
2
4.7 I C Serial Interface and Devices
The MVME3100 provides the following on-board I2C serial devices connected to the
MPC8540 I2C controller interface:
8KB serial EEPROM for VPD

Two 64KB serial EEPROMs for user configuration data storage

256 byte serial EEPROM on SODIMM for SPD

Maxim DS1375 RTC

Maxim DS1621 temperature sensor

8KB serial EEPROM on RTM VPD

70
Documentation, for more information.
Documentation, for more information.
