Analog Peripherals
-
10-Bit ADC ('T620/6/7 and 'T320/1 only)
Up to 500 ksps
Up to 21 external inputs
VREF from on-chip VREF, external pin, Internal 1.8 V
Regulator or V
Internal or external start of conversion source
Built-in temperature sensor
-
Comparators
Programmable hysteresis and response time
Configurable as interrupt or reset source
Low current (<0.5 µA)
USB Function Controller
-
USB specification 2.0 compliant
-
Full speed (12 Mbps) or low speed (1.5 Mbps) oper-
ation
-
Integrated clock recovery; no external oscillator
required for full speed or low speed
-
Supports eight flexible endpoints
-
1 kB USB buffer memory
-
Integrated transceiver; no external resistors
required
On-Chip Debug
-
C8051F34A can be used as code development plat-
form; Complete development kit available
-
On-chip debug circuitry facilitates full speed, non-
intrusive in-system debug
Provides breakpoints, single stepping, 
-
inspect/modify memory and registers
Supply Voltage 1.8 to 5.25 V
-
On-chip LDO for internal core supply
-
Built-in supply voltage monitor
Rev. 1.2 7/12
C8051T620/1/6/7 & C8051T320/1/2/3
DD
ANALOG
PERIPHERALS
A
10-bit
M
500 ksps
U
ADC
X
TEMP
SENSOR
LOW FREQUENCY INTERNAL
OSCILLATOR
48 MHz PRECISION INTERNAL
OSCILLATOR
HIGH-SPEED CONTROLLER CORE
64 kB
EPROM
FLEXIBLE
INTERRUPTS
Copyright © 2012 by Silicon Laboratories

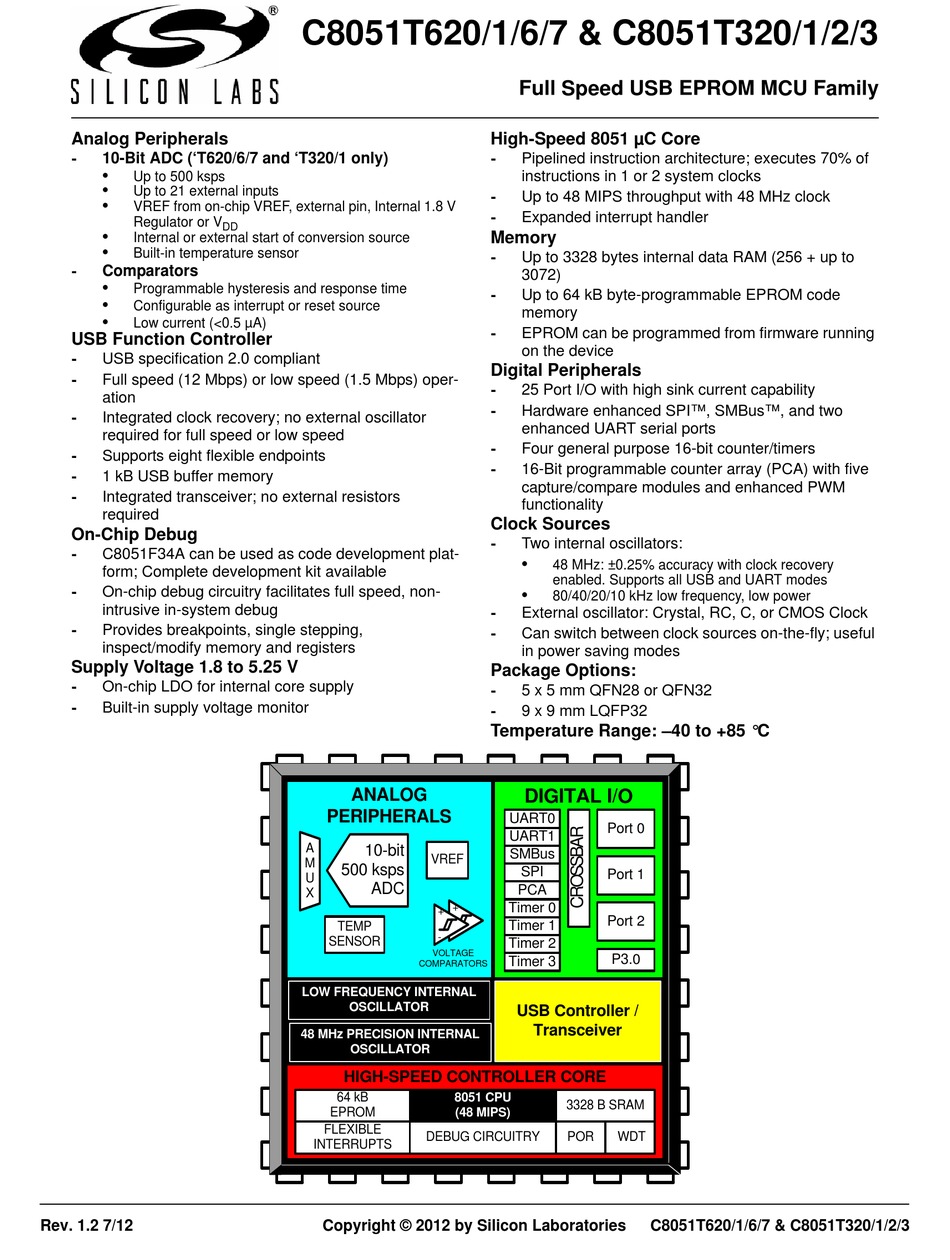

Full Speed USB EPROM MCU Family
High-Speed 8051 µC Core
-
Pipelined instruction architecture; executes 70% of
instructions in 1 or 2 system clocks
-
Up to 48 MIPS throughput with 48 MHz clock
-
Expanded interrupt handler
Memory
-
Up to 3328 bytes internal data RAM (256 + up to
3072)
-
Up to 64 kB byte-programmable EPROM code
memory
-
EPROM can be programmed from firmware running
on the device
Digital Peripherals
-
25 Port I/O with high sink current capability
-
Hardware enhanced SPI™, SMBus™, and two
enhanced UART serial ports
-
Four general purpose 16-bit counter/timers
-
16-Bit programmable counter array (PCA) with five
capture/compare modules and enhanced PWM
functionality
Clock Sources
-
Two internal oscillators:
48 MHz: ±0.25% accuracy with clock recovery
enabled. Supports all USB and UART modes
80/40/20/10 kHz low frequency, low power
-
External oscillator: Crystal, RC, C, or CMOS Clock
-
Can switch between clock sources on-the-fly; useful
in power saving modes

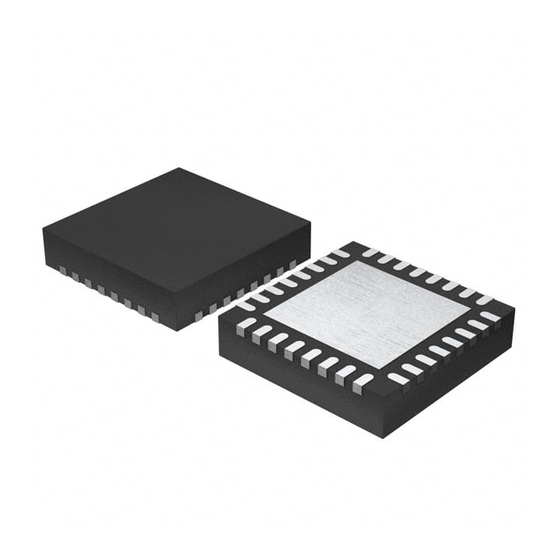

Package Options:
-
5 x 5 mm QFN28 or QFN32
-
9 x 9 mm LQFP32
Temperature Range: –40 to +85 °C
DIGITAL I/O
UART0
UART1
SMBus
VREF
SPI
PCA
Timer 0
+
+
Timer 1
-
-
Timer 2
VOLTAGE
Timer 3
COMPARATORS
USB Controller /
Transceiver
8051 CPU
3328 B SRAM
(48 MIPS)
DEBUG CIRCUITRY
POR
Port 0
Port 1
Port 2
P3.0
WDT
C8051T620/1/6/7 & C8051T320/1/2/3
