1. Relevant Devices
The C8051F996 Development Kit is intended as a development platform for the microcontrollers in the
C8051F99x-C8051F98x MCU family. The members of this MCU family are C8051F990, C8051F991, C8051F996,
C8051F997, C8051F980, C8051F981, C8051F982, C8051F983, C8051F985,
C8051F988, and C8051F989.
Notes:
The target board included in this kit is provided with a pre-soldered C8051F996 MCU (QSOP24 package).
Code developed on the C8051F996 can be easily ported to the other members of this MCU family.
Refer to the C8051F99x-C8051F98x data sheet for the differences between the members of this MCU family.
2. Kit Contents
The C8051F996 Development Kit contains the following items:
C8051F996 Target Board
C8051Fxxx Development Kit Quick-Start Guide
Silicon Laboratories IDE and Product Information CD-ROM. CD content includes the following:
Silicon Laboratories Integrated Development Environment (IDE)
Evaluation version of 8051 development tools (macro assembler, linker, C compiler)
Source code examples and register definition files
Documentation
C8051F996 Development Kit User's Guide (this document)
Third Party Tools CD
AC to DC Power Adapter
USB Debug Adapter (USB to Debug Interface)
2 USB Cables
2 AAA Batteries
Rev. 0.1 5/10
Downloaded from
Elcodis.com
electronic components distributor
E V E L O P M E N T

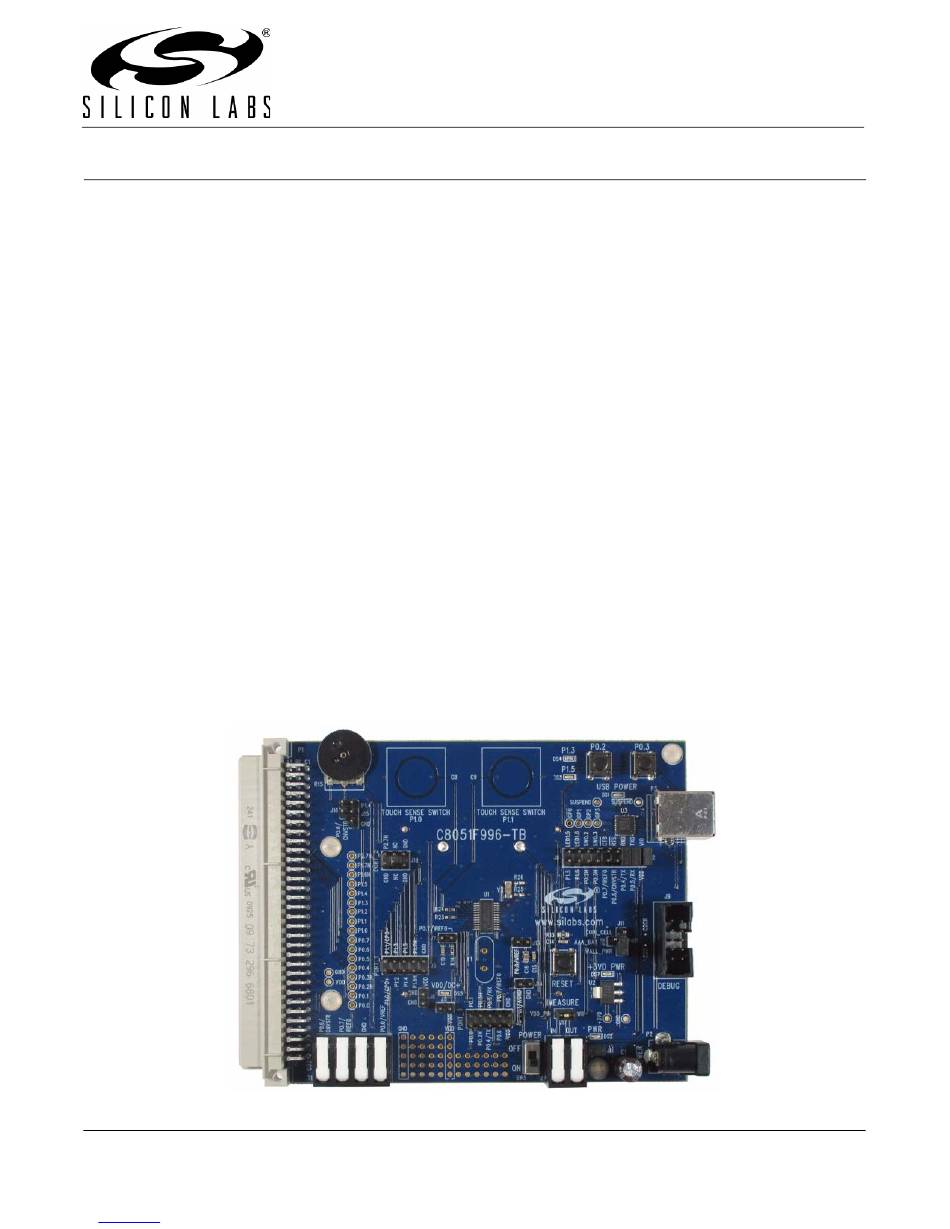

Figure 1. C8051F996 Target Board
Copyright © 2010 by Silicon Laboratories
C 8 0 5 1 F 9 9 6 - D K
K
U
'
G
I T
SER
S
UIDE
C8051F986, C8051F987,
C8051F996-DK
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Silicon Laboratories C8051F996-DK
Summary of Contents for Silicon Laboratories C8051F996-DK
- Page 1 C8051F996 Target Board C8051Fxxx Development Kit Quick-Start Guide Silicon Laboratories IDE and Product Information CD-ROM. CD content includes the following: Silicon Laboratories Integrated Development Environment (IDE) Evaluation version of 8051 development tools (macro assembler, linker, C compiler) ...
- Page 2 C8051F996-DK 3. Hardware Setup Refer to Figure 2 for a diagram of the hardware configuration. 1. Connect the USB Debug Adapter to the DEBUG connector on the target board with the 10-pin ribbon cable. 2. Connect one end of the USB cable to the USB connector on the USB Debug Adapter.
- Page 3 1. Click on the "Install Development Tools" button on the installation utility's startup screen. 2. In the Kit Selection box that appears, choose the C8051F996-DK development kit from the list of options. 3. In the next screen, choose “Components to be Installed”. The programs necessary to download and debug on the MCU are the Silicon Labs IDE and the 8051 Evaluation Toolset.
- Page 4 C8051F996-DK 5. Software Overview The following software is necessary to build a project, download code to, and communicate with the target microcontroller. 8051 Evaluation Toolset Silicon Labs Integrated Development Environment (IDE) Other useful software that is provided on the development kit CD and the Silicon Labs Downloads (www.silabs.com/mcudownloads) website includes:...
- Page 5 C8051F996-DK 7. Download the project to the target by clicking the Download Code button in the toolbar. Note: To enable automatic downloading if the program build is successful select Enable automatic con- nect/download after build in the Project Target Build Configuration dialog. If errors occur during the build process, the IDE will not attempt the download.
- Page 6 C8051F996-DK 5.3. Configuration Wizard 2 The Configuration Wizard 2 is a code generation tool for all of the Silicon Labs devices. Code is generated through the use of dialog boxes for each of the device's peripherals. Figure 3. Configuration Wizard 2 Utility The Configuration Wizard 2 utility helps accelerate development by automatically generating initialization source code to configure and enable the on-chip resources needed by most design projects.
- Page 7 C8051F996-DK 5.4. Silicon Labs Battery Life Estimator The Battery Life Estimator is a system design tool for battery operated devices. It allows the user to select the type of battery they are using in the system and enter the supply current profile of their application. Using this information, it performs a simulation and provides an estimated system operating time.
- Page 8 C8051F996-DK Figure 5. Battery Life Estimator Discharge Profile Editor The Discharge Profile Editor allows the user to modify the profile name and description. The four text entry boxes on the left hand side of the form allow the user to specify the amount of time the system spends in each power mode.
- Page 9 C8051F996-DK The wakeup frequency box calculates the period of a single iteration through the four power modes and displays the system wake up frequency. This is typically the "sample rate" in low power analog sensors. Once the battery type and discharge profile is specified, the user can click the "Simulate" button to start a new simulation.
- Page 10 C8051F996-DK 5.5. Keil µVision2 and µVision3 Silicon Labs Drivers As an alternative to the Silicon Labs IDE, the µVision debug driver allows the Keil µVision IDE to communicate with Silicon Labs on-chip debug logic. In-system Flash memory programming integrated into the driver allows for rapidly updating target code.
- Page 11 C8051F996-DK 7. Target Board The C8051F996 Development Kit includes a target board with a C8051F996 device pre-installed for evaluation and preliminary software development. Numerous input/output (I/O) connections are provided to facilitate prototyping using the target board. Refer to Figure 7 for the locations of the various I/O connectors. Figure 9 on page 13 shows the factory default shorting block positions.
- Page 12 C8051F996-DK The following items are located on the bottom side of the board. See Figure 8. Battery Holder for 1.5 V AAA. Battery Holder for 1.5 V AAA. Battery Holder for 3 V Coin Cell (CR2032). (CR2032) (AAA) (AAA) Figure 8. Bottom of C8051F996 Target Board Rev.
- Page 13 C8051F996-DK 7.1. Target Board Shorting Blocks: Factory Defaults The C8051F996 Target Board comes from the factory with pre-installed shorting blocks on many headers. Figure 9 shows the positions of the factory default shorting blocks. P1.3 P0.2 P0.3 P1.5 P1.4 USB POWER...
- Page 14 C8051F996-DK 7.2. Target Board Power Options and Current Measurement (J10, J11, J17, H2, P2, P3, SW5) The C8051F996 Target Board supports three power options, selectable by the three-way header (J10/J11). Power to the MCU may be switched on/off using the power switch (SW5). The power options are described in the paragraphs below.
- Page 15 C8051F996-DK 7.3. System Clock Sources 7.3.1. Internal Oscillators The C8051F996 device installed on the target board features a factory calibrated programmable high-frequency internal oscillator (24.5 MHz base frequency, ±2%) and a low power internal oscillator (20 MHz ±10%). After each reset, the low power oscillator divided by 8 results in a default system clock frequency of 2.5 MHz (±10%).
- Page 16 C8051F996-DK 7.5. Switches and LEDs (J1, J5, J8, J15, J16, SW1, SW2, SW3) Three push-button switches are provided on the target board. Switch SW1 (RESET) is connected to the reset pin of the C8051F996. Pressing SW1 puts the device into its hardware-reset state. Switches SW2 (P0.2) and SW3 (P0.3) are connected to the C8051F996’s general purpose I/O (GPIO) pins through headers.
- Page 17 C8051F996-DK 7.6. Expansion I/O Connector (P1) The 96-pin Expansion I/O connector P1 provides access to all signal pins of the C8051F996 device (except the C2 debug interface signals). In addition, power supply and ground pins are included. A small through-hole prototyping area is also provided.
- Page 18 C8051F996-DK 7.7. Target Board DEBUG Interface (J9) The DEBUG connector J9 provides access to the DEBUG (C2) pins of the C8051F996. It is used to connect the Serial Adapter or the USB Debug Adapter to the target board for in-circuit debugging and Flash programming.
- Page 19 C8051F996-DK 7.10. IREF Connector (J7) The C8051F996 Target Board also features a current-to-voltage 1 k load resistor that may be connected to the current reference (IREF0) output that can be enabled on port pin (P0.7). Install a shorting block on J7 to connect port pin P0.7 of the target device to the load resistor.
