Chapter 3 Components and power supply
This chapter describes the Teldat M1 router family chassis and its main components. The following sections are in-
cluded:

• Components

• Assembly instructions
• Installing and uninstalling modules
• Power supply
• RST button
• Data connection
• SIM card installation
3.1 Components

3.1.1 Front panel

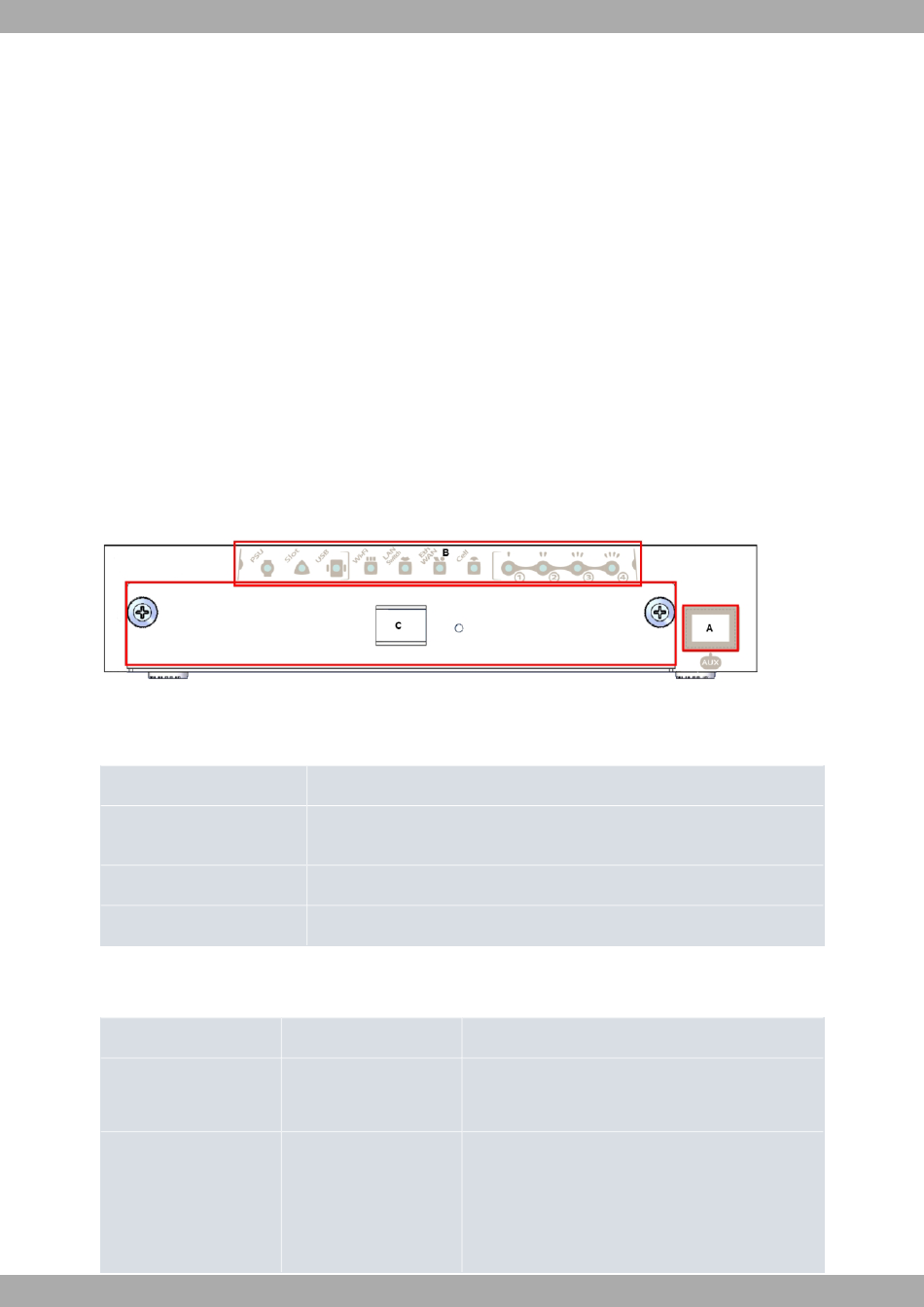

The following image shows the device's front panel:
Front Panel
Fig. 1:
The front panel elements are as follows:
FRONT PANEL ELEMENTS
Item
A
B
C
The LEDs show the status of the device's hardware components (indicating whether they are active or not) and dis-
play the current status of network activity.
LEDs
LED
PSU
Slot
Teldat Router M1/M1L
Description
Aux. RJ45 connector providing access to the device's local console for configura-
tion and monitoring purposes.
LED panel.
Expansion card tray.
Status
Monochrome green
Tricolor
Description
Off -> no power through PSU.
On -> powered through PSU.
Off -> No card in the expansion slot.
Red -> interface down.
Amber -> auto test.
Green -> interface up (blinking, in some cards, when

3 Components and power supply
