Chapter 3 Components and Power Supply
The following chapter provides detailed information on the chassis of the M8-Smart router and its components. This
information includes:

• Components.

• Information on assembly.
• Power supply.
• RST button.
• Data connection.
• SIM cards installation.
• Embedded Access Point.
3.1 Components

3.1.1 Front Panel

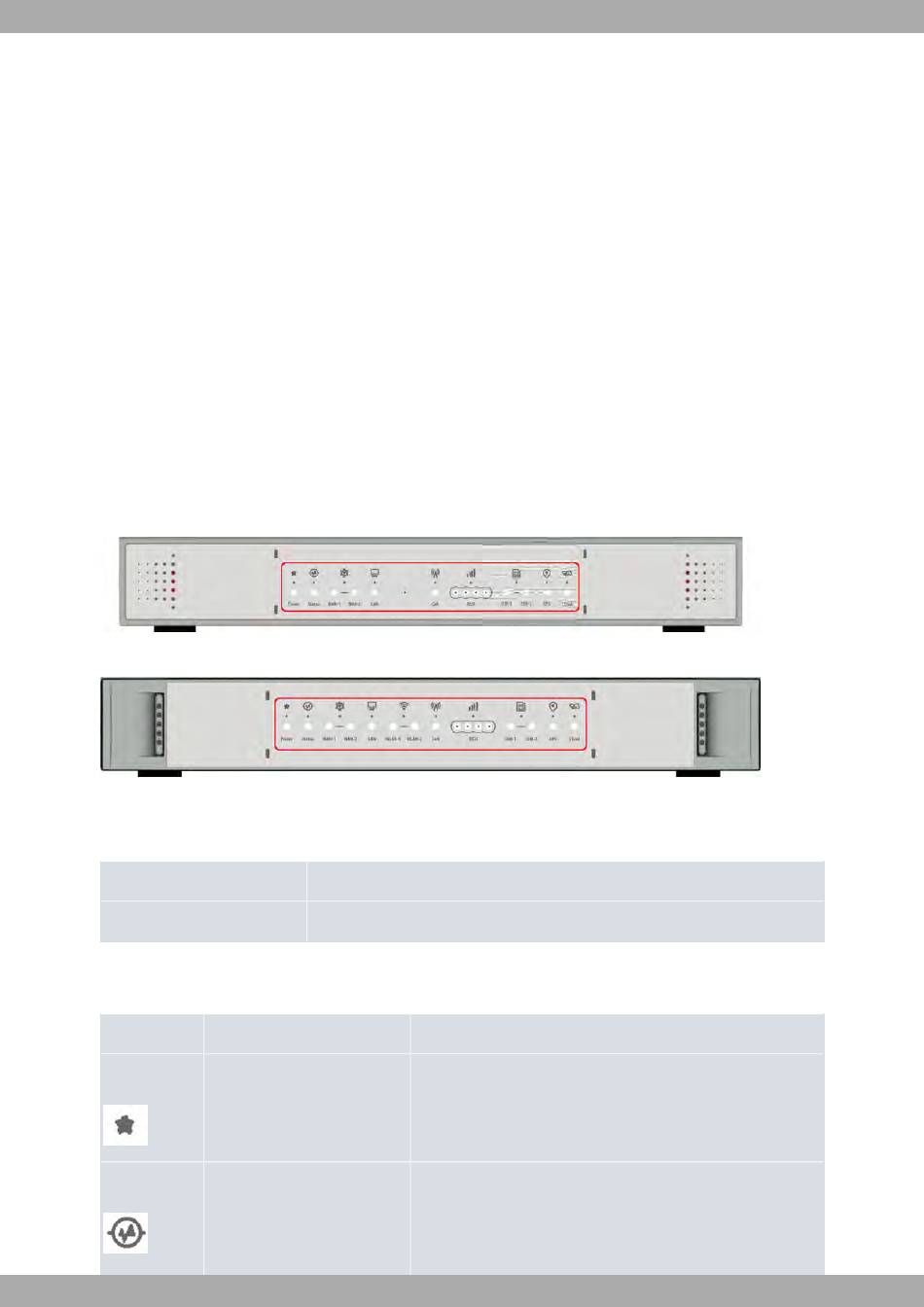

The following figure shows the front panel.
Front Panel of the M8-Smart
Fig. 1:
Front Panel of the M8-Smart-WiFi
Fig. 2:
The front panel elements are as follows:
FRONT PANEL ELEMENTS
Item
A
The LEDs panel provides information on the status of the components (if they are active or not) and on network
activity.
LEDs
LED
Power
Status
M8-Smart
device
device
Description
LEDs panel.
Definition
Power / Switch On-Off
General Status /
Default Configuration Process
Status Indication
Off -> No power through PSU.
On -> Powered through PSU.
Off -> System off.
Red -> Error, component operating incorrectly.
Green -> System initialized and operating.
