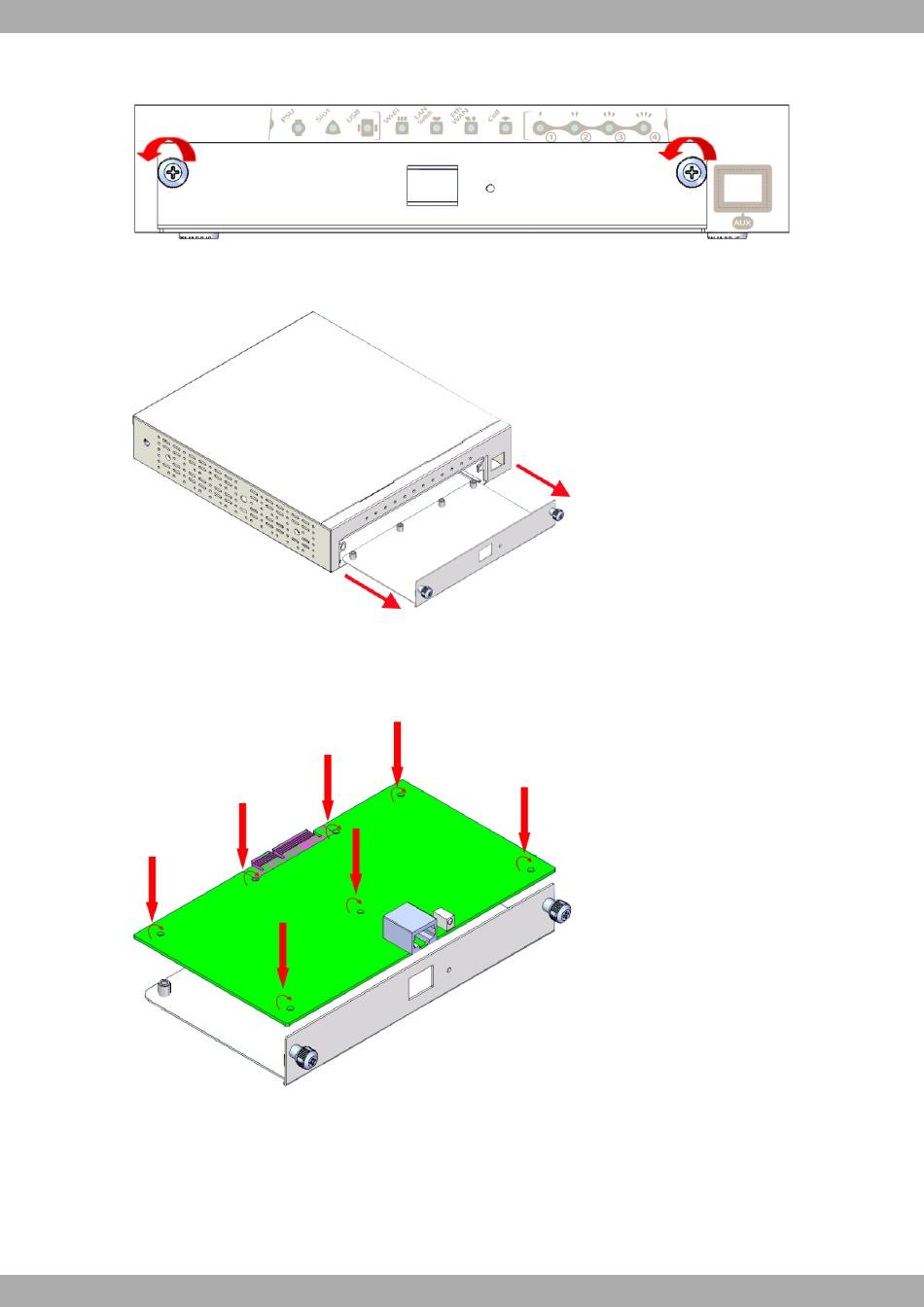

Removing the screws on the front panel
Fig. 6:
(4) Remove the screws and gently pull the tray out of the slot. Please see
Removing the tray from the slot
Fig. 7:
(5) If you are using a fixed card, please proceed to the next step. If not, remove the tray from the device and place
the card on the tray. Use appropriate screws to affix the card to the tray, being careful not to damage the card
when tightening the screws. Please see
Installing the expansion card
Fig. 8:
(6) Finally, insert the tray into the device once again using the appropriate guides. See
Teldat Router M1/M1L
Fig. 8 on page 9.
