3 Components and power supply

3.7.1 4-port Ethernet switch

The Teldat M1 router incorporates a 4-port 10/100/1000 BaseT Switch with automatic MDI/MDIX to connect to a loc-
al area network (LAN).
Please pay careful attention to the labeling so you do not mix this switch with other port types:

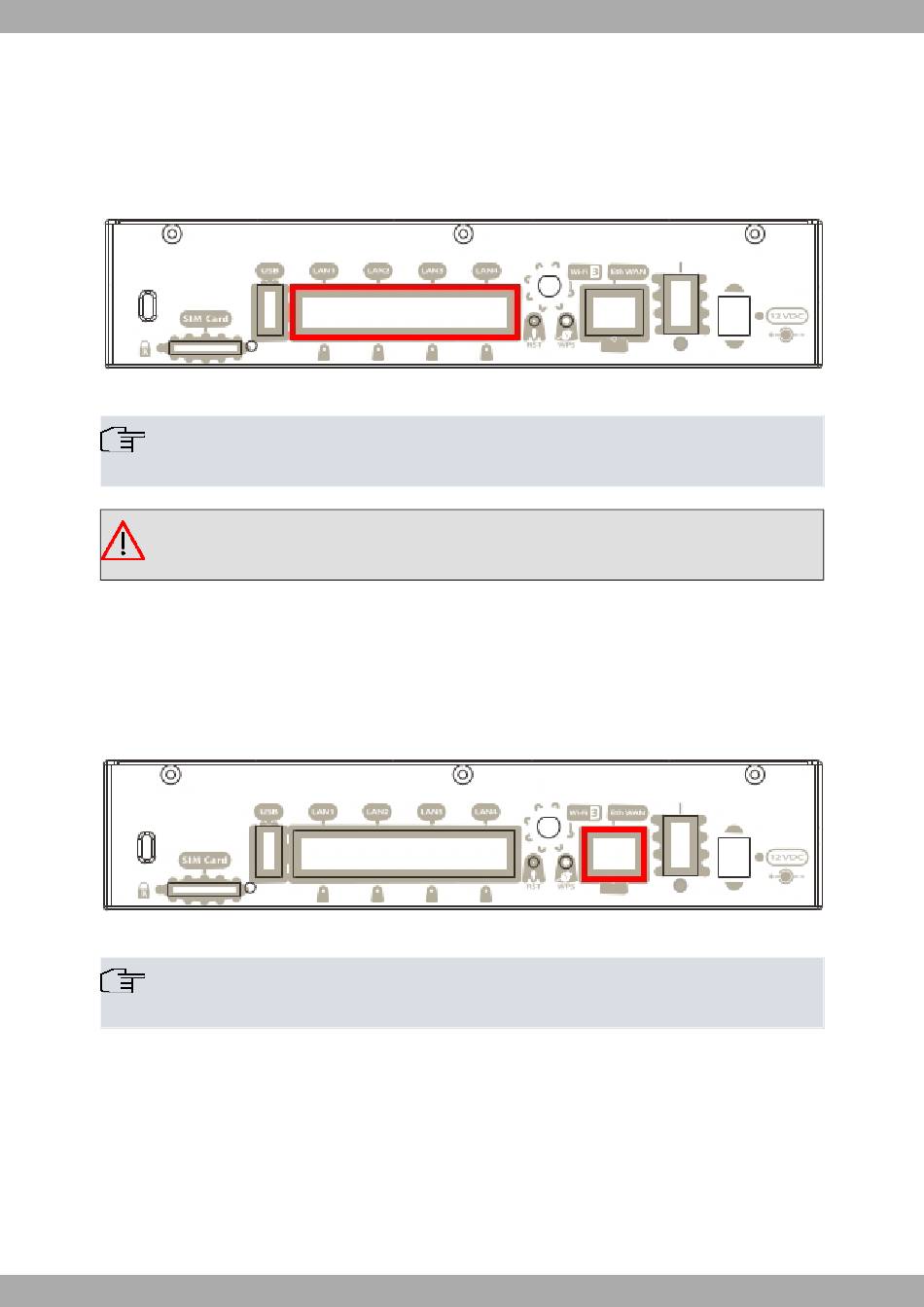

LAN switch ports
Fig. 14:
Note
Only the LAN 1 connector is available during booting and in BIOS mode.
Warning
The equipment must be used with the power supply provided by the manufacturer.

3.7.2 WAN connection

The Teldat M1 incorporates an Ethernet WAN 10/100/1000 BaseT port with automatic MDI/MDIX.
The WAN port is independent from the switch and is handled like every other interface.
Please pay careful attention to the labeling so you do not mix this switch with other port types:
WAN PORT
Fig. 15:
Note
The WAN connector is not operational during booting and in BIOS mode.

3.7.3 WWAN antenna connection (cell connector)

The Teldat M1 has two 3G antenna connectors. The antennas are assembled and disassembled by screwing/un-
screwing them into/from the Cell connectors on the router's side panels.
Using these antennas with the Teldat M1 router improves the quality of the signal received and transmitted by the
cellular model.
