Chapter 3 Components and Power Supply
The following chapter provides detailed information on the chassis of the Teldat K router family and its components.
This information includes:

3.1 Components

3.1.1 Front Panel

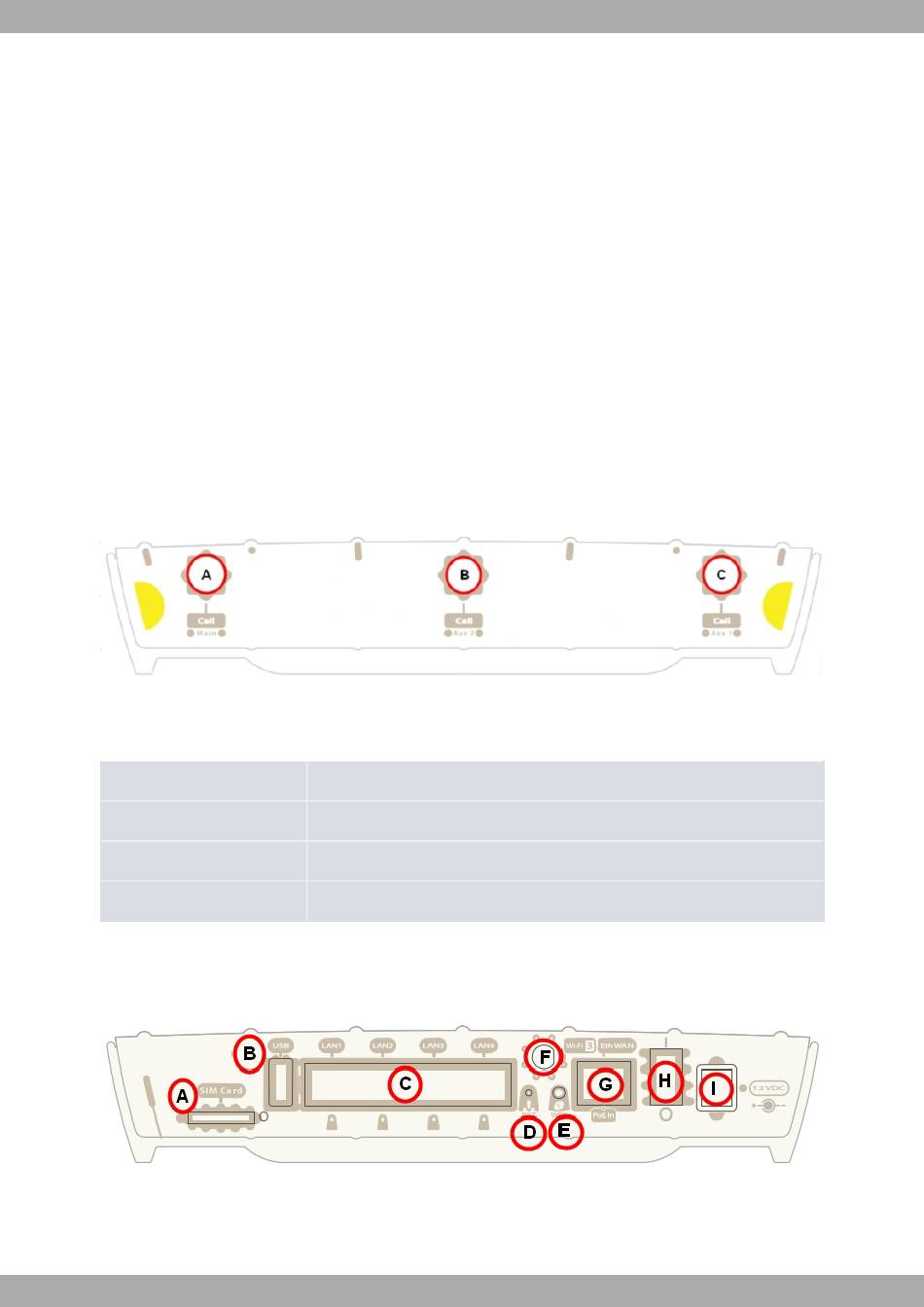

The following figure shows the front panel. The only thing to be found here are the 3G antenna connectors.
Front Panel
Fig. 1:
The front panel elements are as follows:
Front panel elements
Item
A
B
C

3.1.2 Rear Panel

The following figure shows the rear panel. Here you can see all the connectors for the Teldat K router family.
Rear panel
Fig. 2:
The following table provides information on each connector as well as a description:
Rear panel elements
Teldat K/KF router
• Components.
• Information on assembly.
• Installation and removal of modules.
• Power supply.
• RST button.
• Data connection.
• SIM card installation.
Description
Main antenna for the Teldat K cellular module.
Auxiliary antenna 2 for the Teldat K cellular module.
Auxiliary antenna 1 for the Teldat K cellular module.

3 Components and Power Supply
