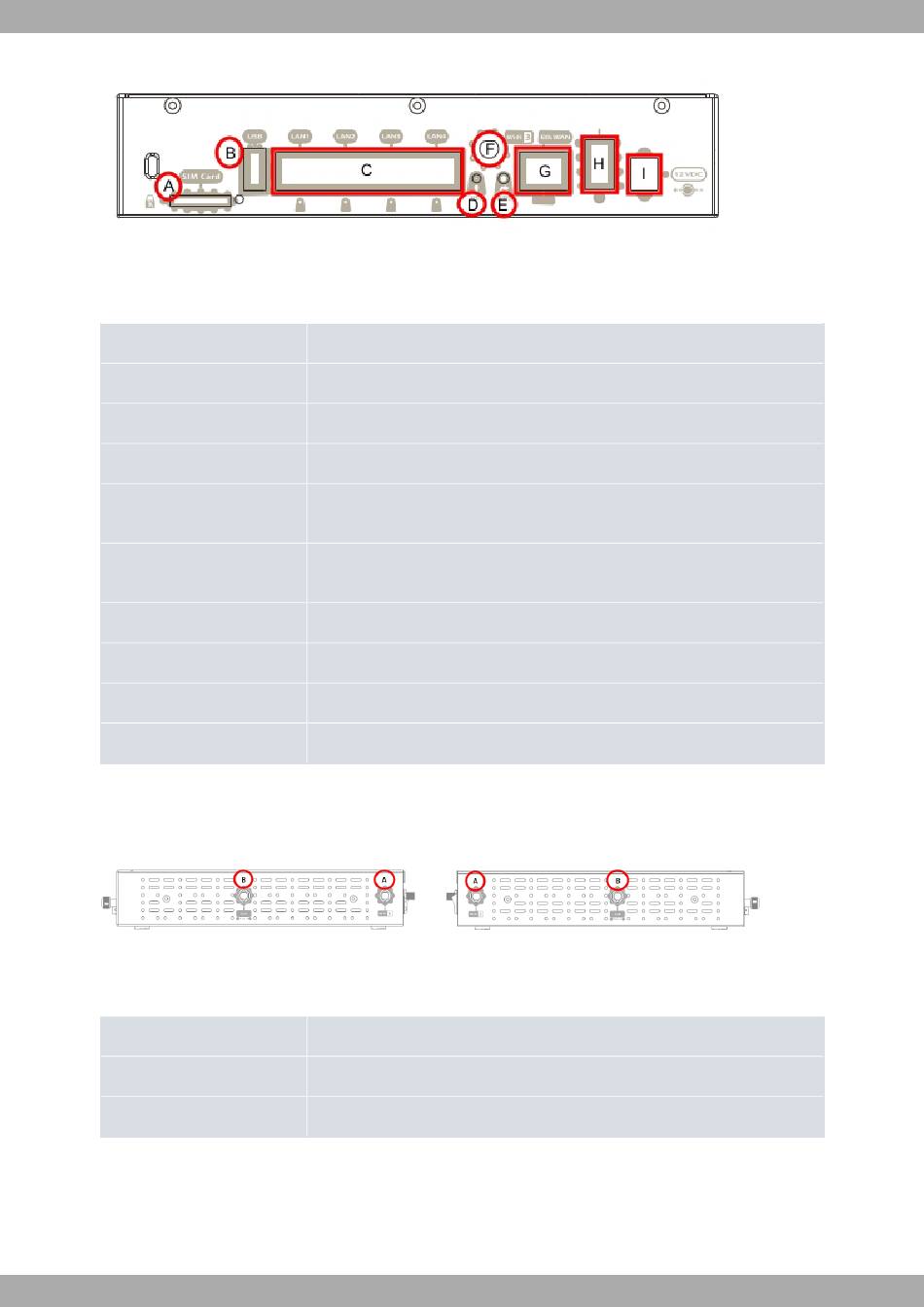

Rear panel
Fig. 2:
The following table describes each connector:
Rear panel elements
Item
A
B
C
D
E
F
G
H
I

3.1.3 Side panels

Two Wi-Fi connectors and two 3G antenna connectors can be found on each side panel:
Fig. 4: Right and left-hand side panels
Fig. 3:
The connectors are as follows:
Side panel connectors
Item
A
B

3.1.4 Underside panel

The following image shows the underside panel:
Teldat Router M1/M1L
Description
SIM Card. Slot to insert a SIM card for the external 3G module.
USB. Slot to insert a 3G USB modem.
4-port Gigabit Ethernet switch.
RST. Reset button. For further information on how the reset button works, please
see RST button on page 13.
WPS (Wireless Protected Setup). This allows for an easy and secure configuration
of Wi-Fi network parameters.
Wi-Fi Antenna no. 3. The use of this connector depends on the router's Wi-Fi card.
Eth WAN. WAN Gigabit Ethernet.
On/Off switch.
Power source connection (PSU).
Description
Wi-Fi antenna connectors.
3G antenna connectors.
