3 Components and power supply
Underside panel
Fig. 4:

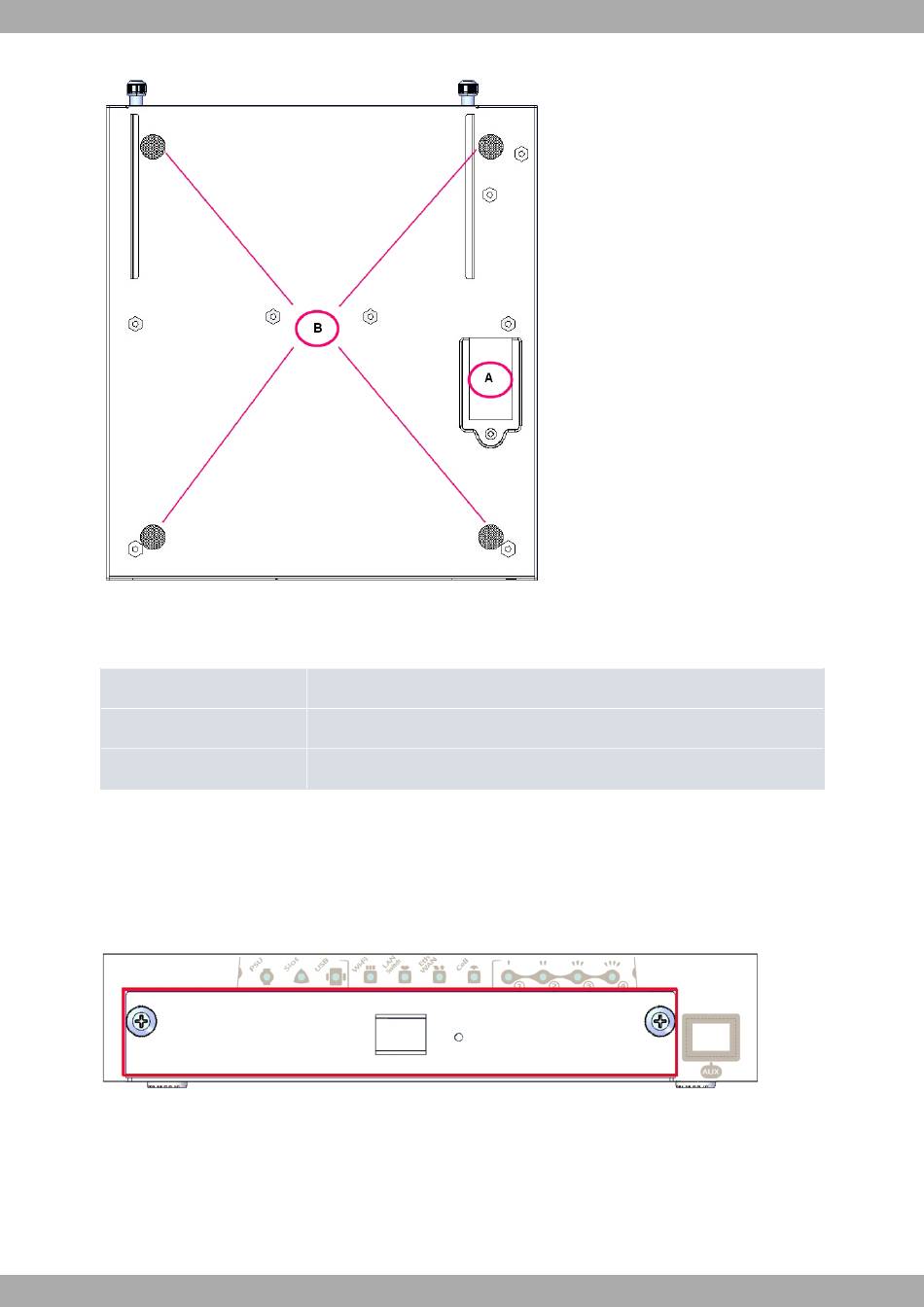

The following elements can be found on the underside panel:
Underside PANEL ELEMENTS TABLE
Item
A
B

3.2 Expansion slot

The Teldat M1 router comes with an expansion slot that allows you to increase the number of features and inter-
faces the router has by inserting different cards or boards.
This slot is found on the router's front panel, as shown in the following figure:
Expansion slot
Fig. 5:
To insert cards, follow these steps:
(1) Switch the device off and remove the data cables as described in
(2) Remove the device from the workplace and place it in a stable, safe location where it can be easily accessed
and handled.
(3) Unscrew the screws on the front panel to remove the tray that gives access to the expansion cards. Please see
8
Description
Internal 3G module SIM tray. Accessed from the underside of the router.
Adhesive rubber feet (not required when the device is mounted on a rack).
Disconnecting on page 13.
