3 Components and power supply

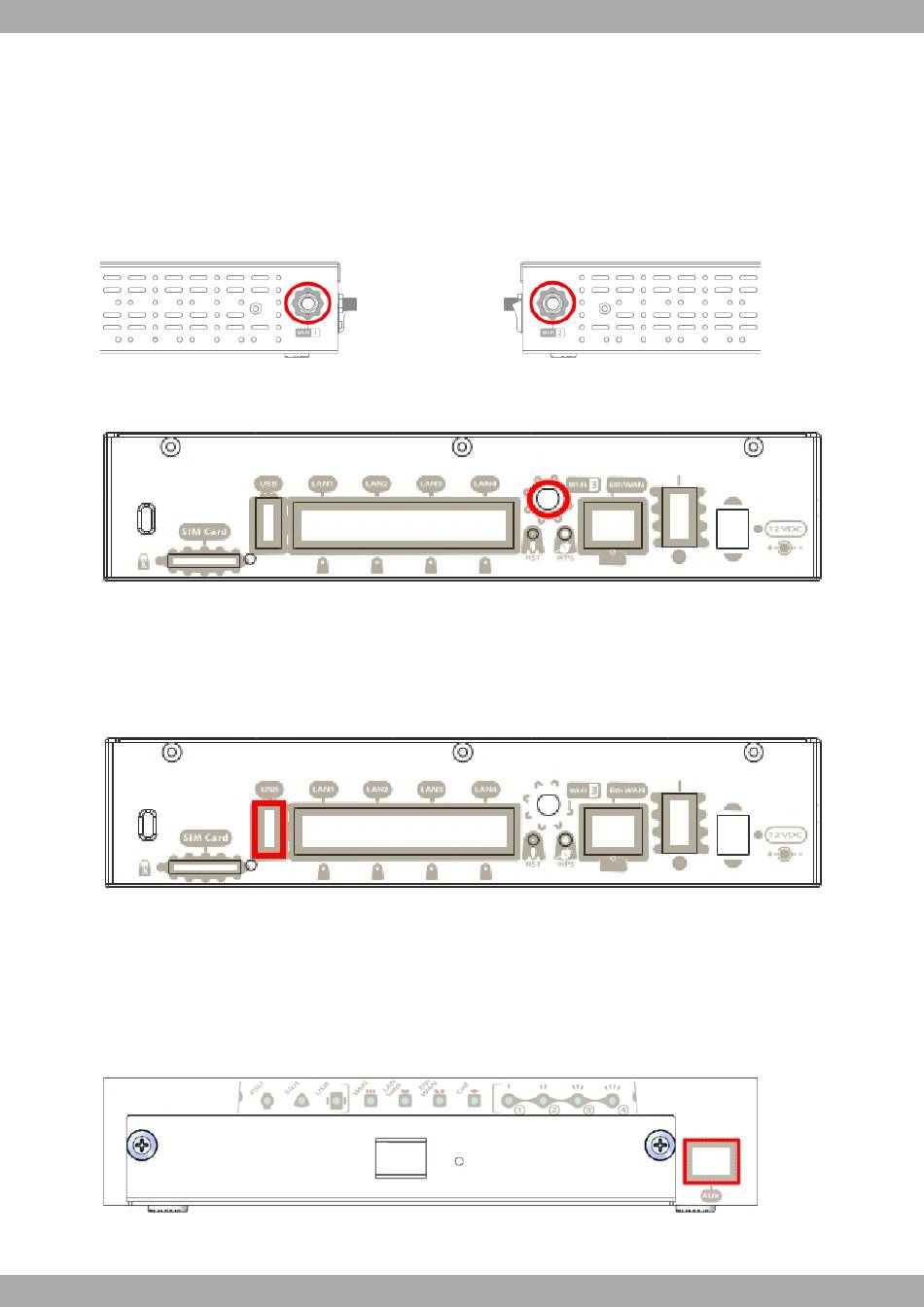

3.7.4 Wireless LAN antenna connection (Wi-Fi connectors)

The Teldat M1 has three RF antenna connectors. These can be used to connect an external antenna to improve the
quality of the signal received and transmitted by the Wireless LAN module.
This module is internal and can be activated by purchasing the corresponding software license. The antennas are
assembled and disassembled by screwing/unscrewing them into the connectors labeled Wi-Fi (located on the
router's rear and side panels).
Fig. 19: Wi-Fi 1
Fig. 18:
Wi-Fi 3 Antenna
Fig. 20:

3.7.5 Connecting a 3G USB device (USB connector)

The Teldat M1 has a USB HOST 2.0 Type A connector interface for connecting 3G USB modems. The interface can
be activated by purchasing the corresponding software license.
3G USB Connector
Fig. 21:

3.7.6 Connecting for configuration

The front panel of the Teldat M1 features an RJ45 female connector, labeled " Aux" , that provides access to the
router's local console.
For further information, please see
Aux. Connector
Fig. 22:
16
Wi-Fi 2 antennas
and
Connecting to the device on page 27.
Teldat S.A.
Teldat Router M1/M1L
