Chapter 3 Components and Power Supply
The following chapter provides detailed information on the WWAN Enabler chassis and its components. This inform-
ation includes:

• Components.

• Information on assembly.
• Power supply.
• RESET button.
• Data connection.
• SIM card installation.
3.1 Components

3.1.1 Top Panel

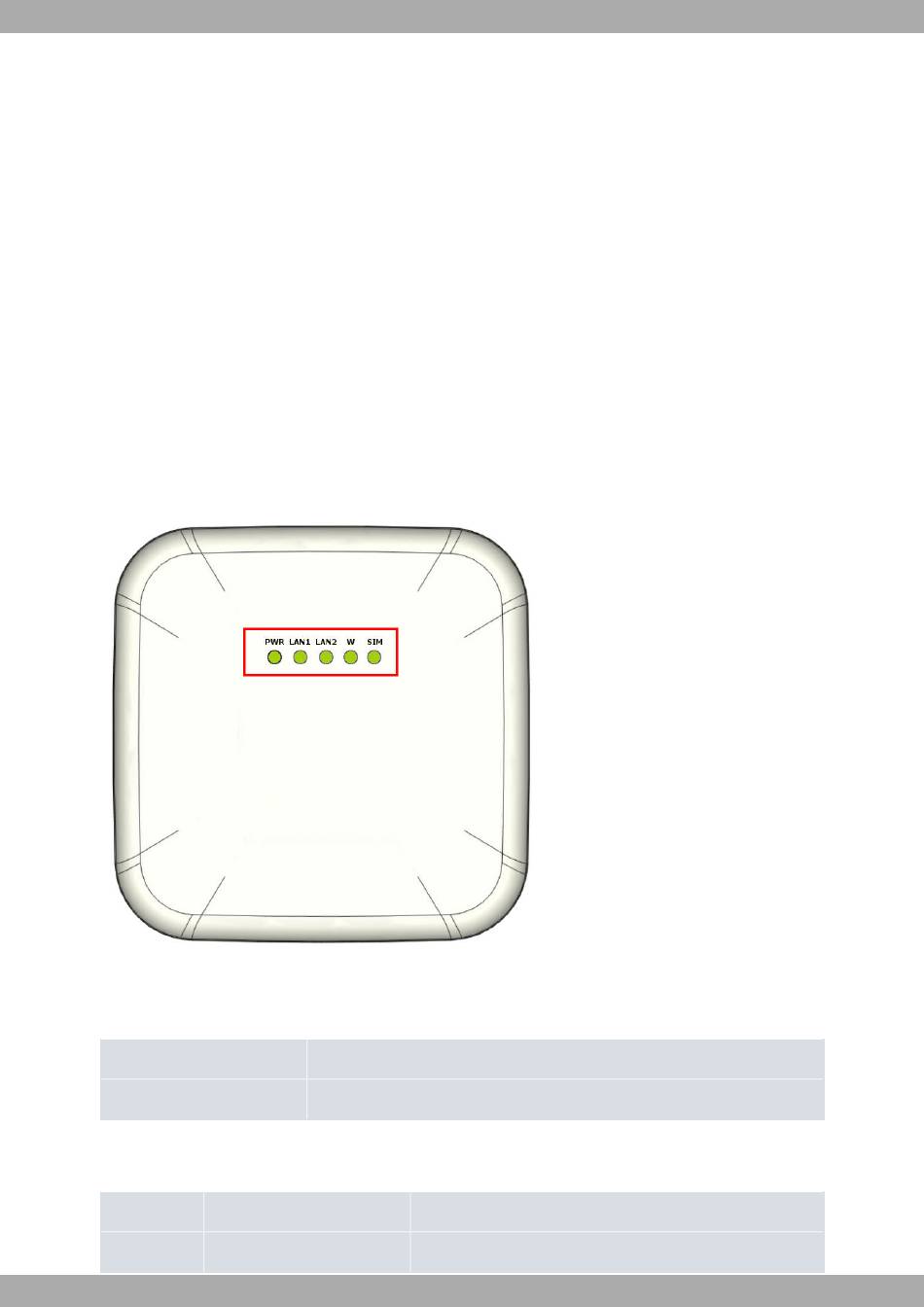

The following figure shows the top panel.
Top Panel
Fig. 1:
The top panel components are as follows:
Top panel components
Item
A
The LED panel provides information on the status of the components (indicating whether they are active or not) and
on network activity.
LEDs
LED
PWR
WWAN Enabler
Description
LED panel.
Status
Monochrome green
Description
Green -> Device powered.
