3 Components and power supply
(2) Fix the router to the wall using the screws (3.5x30). The above figure indicates how to install it so that it is safe
to use.

3.4 Plug-in modules

The only module that can be inserted in the device is a 3G USB modem. A list of supported 3G modems can be
found on the following website: http://www.teldat.com.

3.4.1 Installation

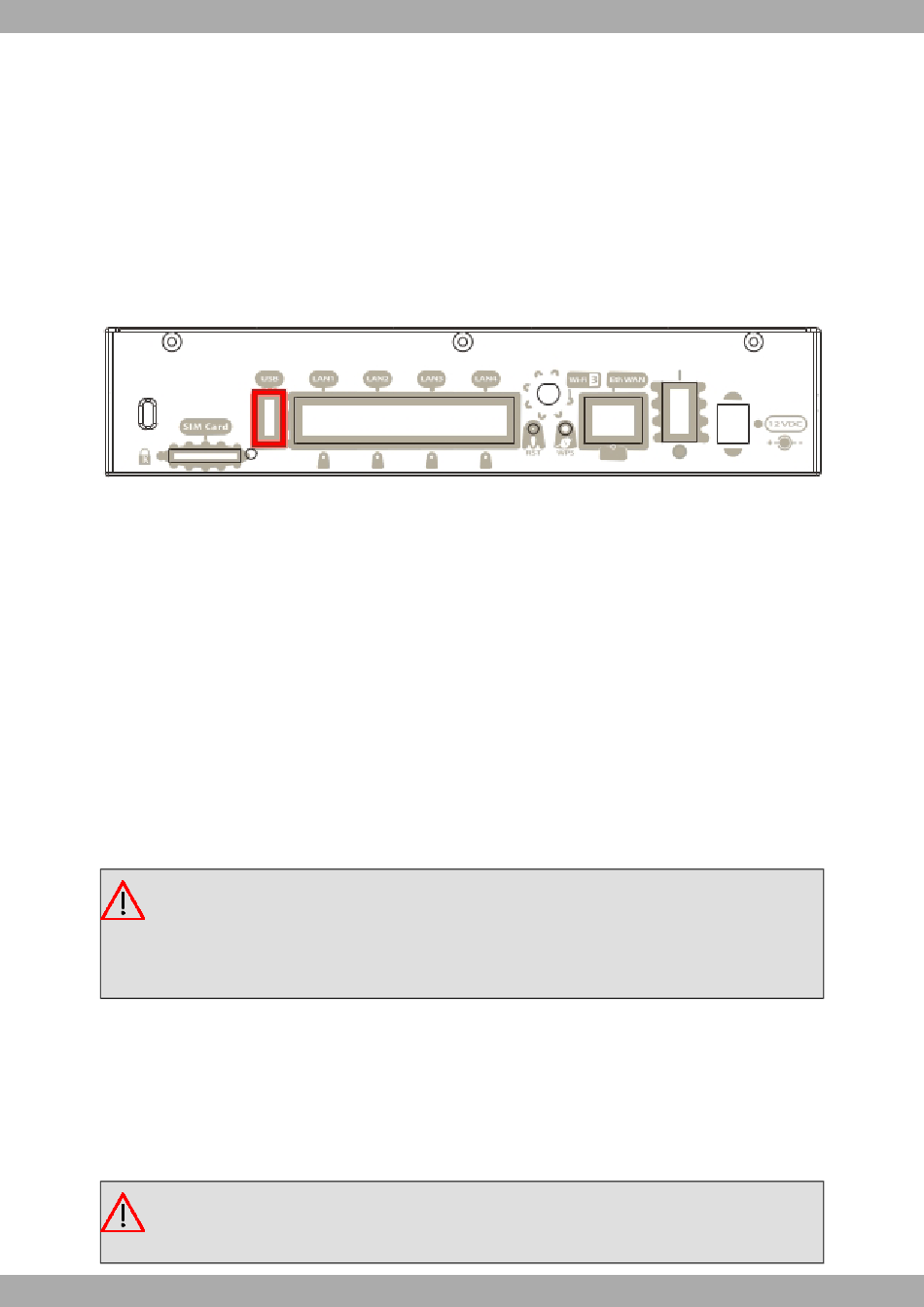

Simply insert the USB in the appropriate slot on the rear panel, as shown in the following figure:
USB modem insertion slot
Fig. 13:

3.4.2 Uninstall

To uninstall the device, simply remove it from the slot where it was inserted. See

3.5 Power source

The Teldat M1 router is powered by an external AC/DC source.
Workplace conditions. Main characteristics
• Do not expose the device to humid and/or dusty environments.
• Do not expose the device to direct sunlight or install near any heat sources. Do not place the device amongst pa-
pers, magazines or other elements that could hinder natural air circulation.
• Do not place the device close to strong electromagnetic fields (e.g., speakers, engines, etc.).
• Avoid knocks and/or strong vibrations during transport, operation and storage.
Warning
Electrical current from power, telephone and communication cables is hazardous. To prevent electric
shock, you must connect and disconnect the cables according to the instructions set forth in
ing on page 13 and
device's covers.

3.5.1 Connecting the power supply

To connect the power supply to the device, please follow the steps outlined in the section entitled
page 13.
To prevent electric shocks, residual current circulation, and other unwanted effects that have an impact on commu-
nications, the following is recommended:
Warning
All interconnected communication devices should be plugged into THE SAME GROUNDED POWER
OUTLET, which should also be of good quality (lower than 10 ohms).
12
Disconnecting on page 13 before attempting to install, move or open any of the
Fig. 13 on page 12.
Connect-
Connecting on
