3 Components and Power Supply

Chapter 3 Components and Power Supply
The following chapter provides detailed information on the chassis of the RXL15000 router and its components. This
information includes:

• Components

• Information on installation
• Power supply
• RST button
• Data connection
3.1 Components

3.1.1 Front panel

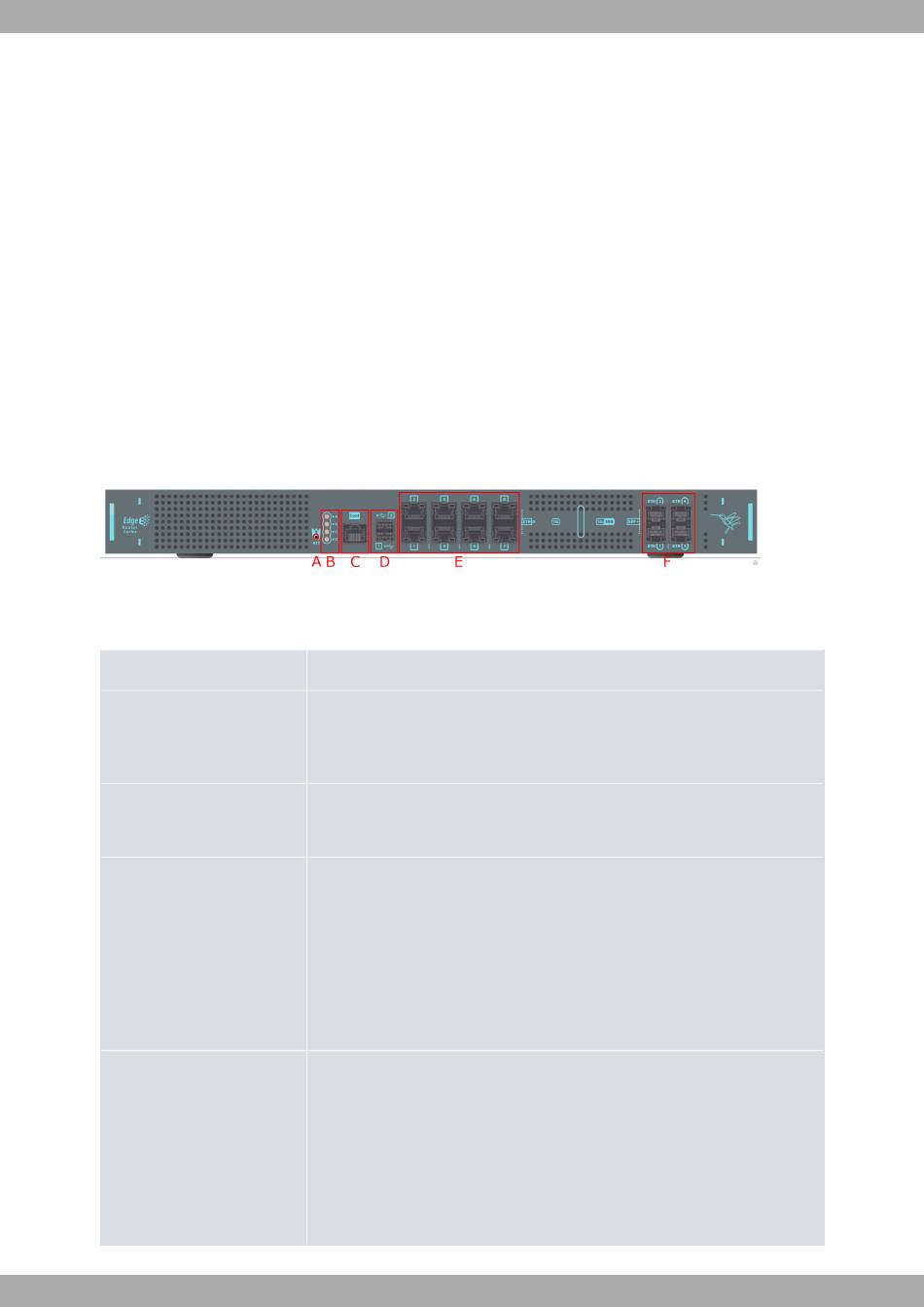

The following figure shows the front panel. Here you will find the majority of the RXL15000 router connectors.
Front Panel
Fig. 2:
The front panel components are as follows:
Front panel components
Item
A
B
C
D
4
Description
RST. Reset button.
For further information on how the reset button works, please see
page 8.
LED panel.
For detailed information on the LEDs, refer to
Conf.
Provides access to the RXL15000 local console for configuring and monitoring
purposes. For more information, refer to:
- Connecting for configuration
- Configuration connector on page 17
- Configuration interface on page 18
USB 3.0 Ports.
The USB Ports do not provide data connections and are intended for maintenance
use only.
For more information on the USB connectors, refer to:
- USB 3.0 connector on page 17
- USB 3.0 interface on page 18
LEDs on page 5
on page 9
