Installing In A Rack; Standalone - Teldat M1 Installation Manual

3 Components and power supply
Inserting the expansion card

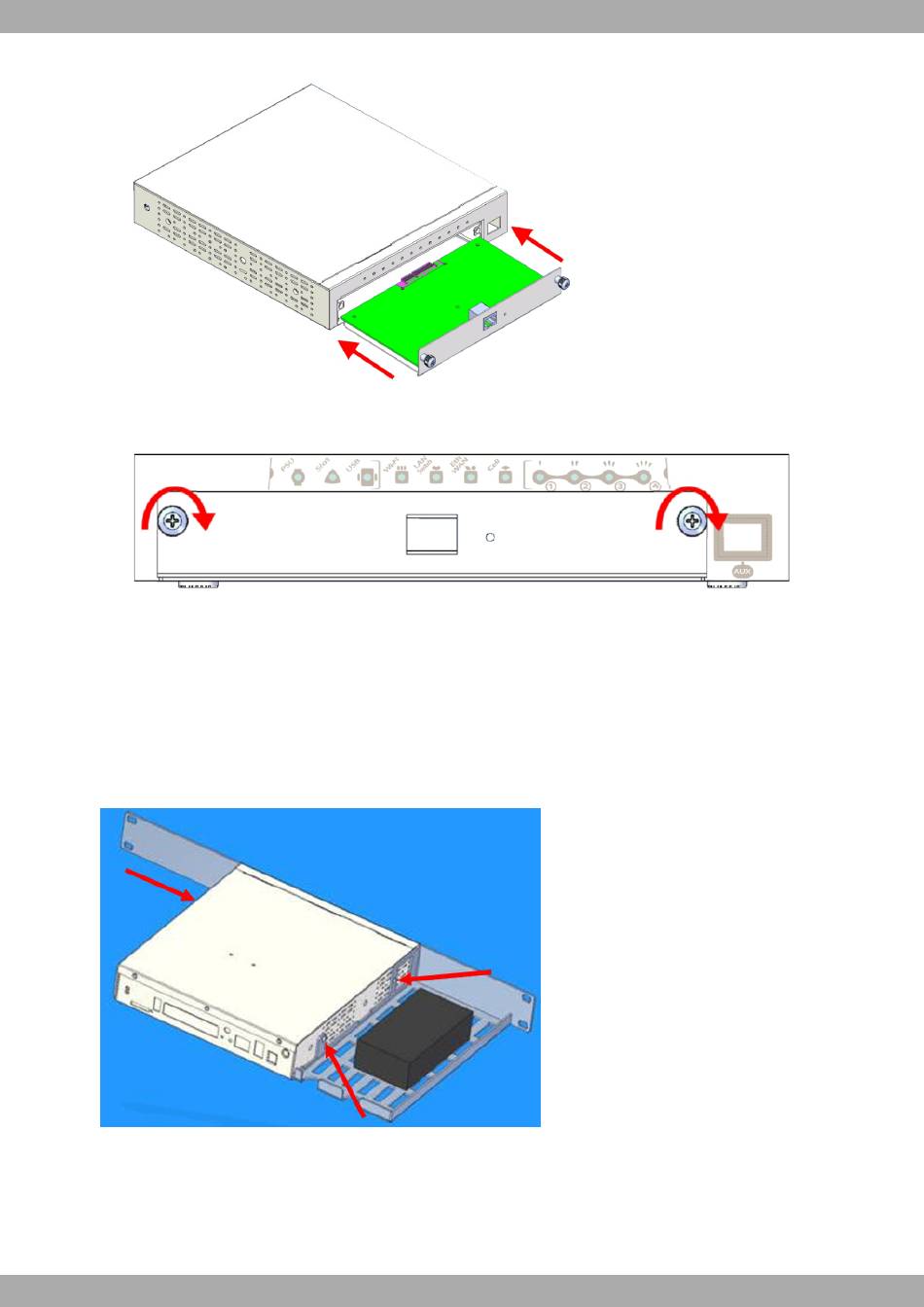

Fig. 9:
(7) Secure the tray to the device. See
Secure the tray to the front panel using two screws.
Fig. 10:
(8) Connect a terminal to the console to ensure the device can detect the expansion card.

3.3 Installing in a rack

The Teldat M1 router can be mounted in a 19-inch rack. Rack rails and screws are not provided and must be pur-
chased separately.
Both rails are attached to the device by means of 4 screws, two on each side (see Figure 11).
Anchor bolts for a rack
Fig. 11:

3.3.1 Standalone

Teldat M1 routers can be placed as standalones on a flat, stable surface. The adhesive rubber feet must be stuck to
the underside panel to prevent the router from sliding.
