3 Components and power supply

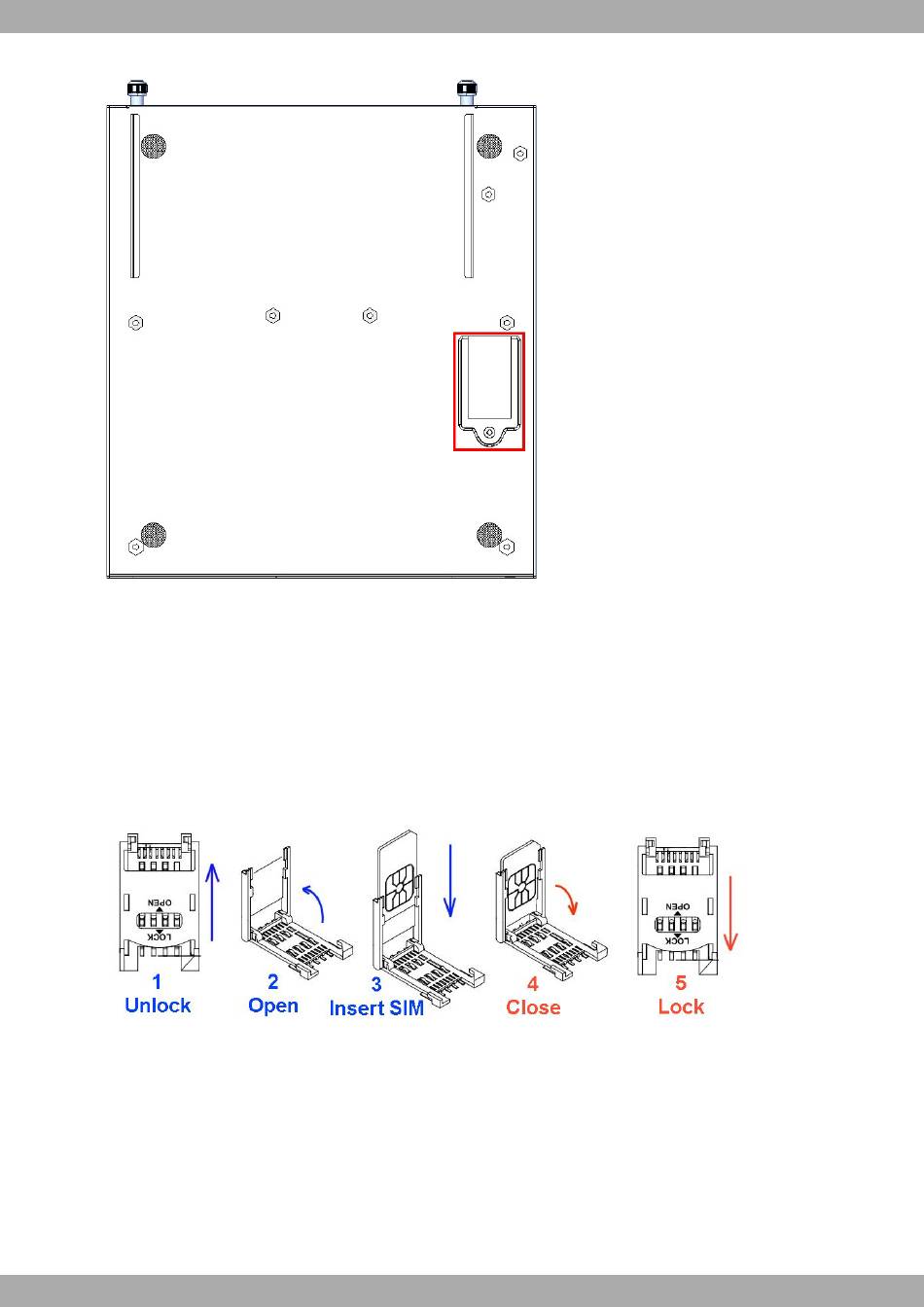

Internal module SIM tray
Fig. 25:
In order to insert a SIM card, locate the slot and remove the flap. The SIM tray becomes visible. Now carry out the
following steps:
(1) Slide the SIM card case cover in the direction indicated by the arrow labeled OPEN.
(2) Open the cover.
(3) Fully insert the SIM card using the guides on the inner part of the case cover.
(4) Close the case cover.
(5) Hold the SIM card case cover down while you slide the cover to the side, as indicated by the arrow labeled
LOCK, until it is firmly in place.
Inserting the SIM in the internal tray
Fig. 26:
