3 Components and Power Supply

Chapter 3 Components and Power Supply
The following chapter provides detailed information on the chassis of the RS300 router and its components. This in-
formation includes:

• Components.

• Information on assembly.
• Power supply.
• RST button.
• Data connection.
• SIM card installation.
3.1 Components

3.1.1 Front panel

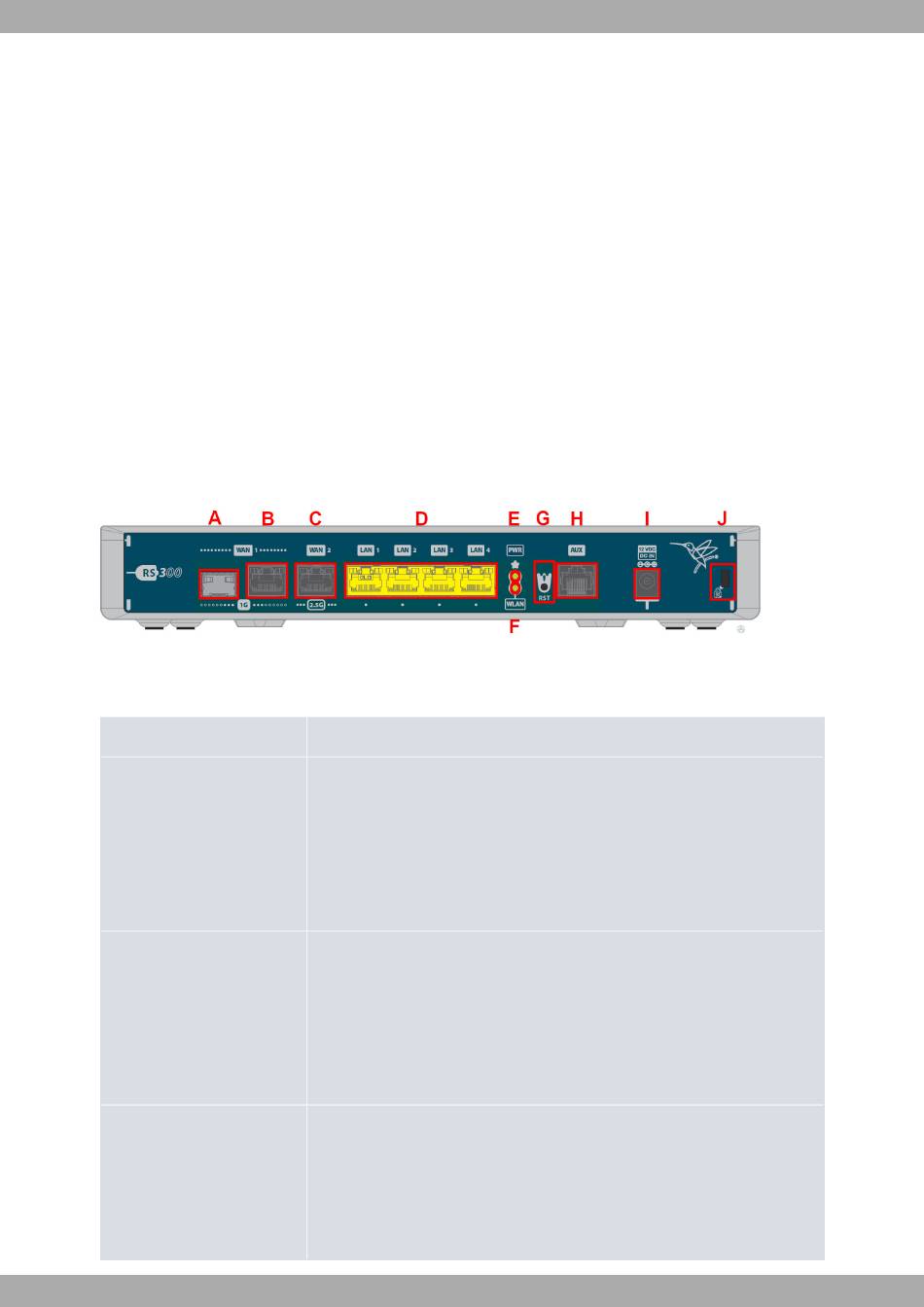

The following figure shows the front panel. Here you will find the majority of the RS300 router connectors.
Front panel
Fig. 2:
The following table provides information on each connector, as well as a description:
Front panel components
Item
A
B
C
4
Description
Eth WAN-1 SFP.
For more information on the SFP interface, refer to:
- WAN Combo connection on page 12
- WAN SFP connector on page 21
- WAN SFP interface on page 23
Eth WAN-1 Base-T. WAN Gigabit Ethernet.
For more information on the WAN interface, refer to:
- WAN Combo connection on page 12
- WAN Base-T connectors on page 21
- WAN Base-T interface on page 22
Eth WAN-2 Base-T. WAN 2.5 Gigabit Ethernet.
For more information on the WAN interface, refer to:
- WAN 2.5G connection on page 13
- WAN Base-T connectors on page 21
Teldat S.A.
RS300 Series
