3 Components and Power Supply

Chapter 3 Components and Power Supply
The following chapter provides detailed information on the chassis of the RXL14000 router and its components. This
includes information on:

• Components.

• Assembly.
• Power supply.
• RST button.
• Data connection.
3.1 Components

3.1.1 Front panel

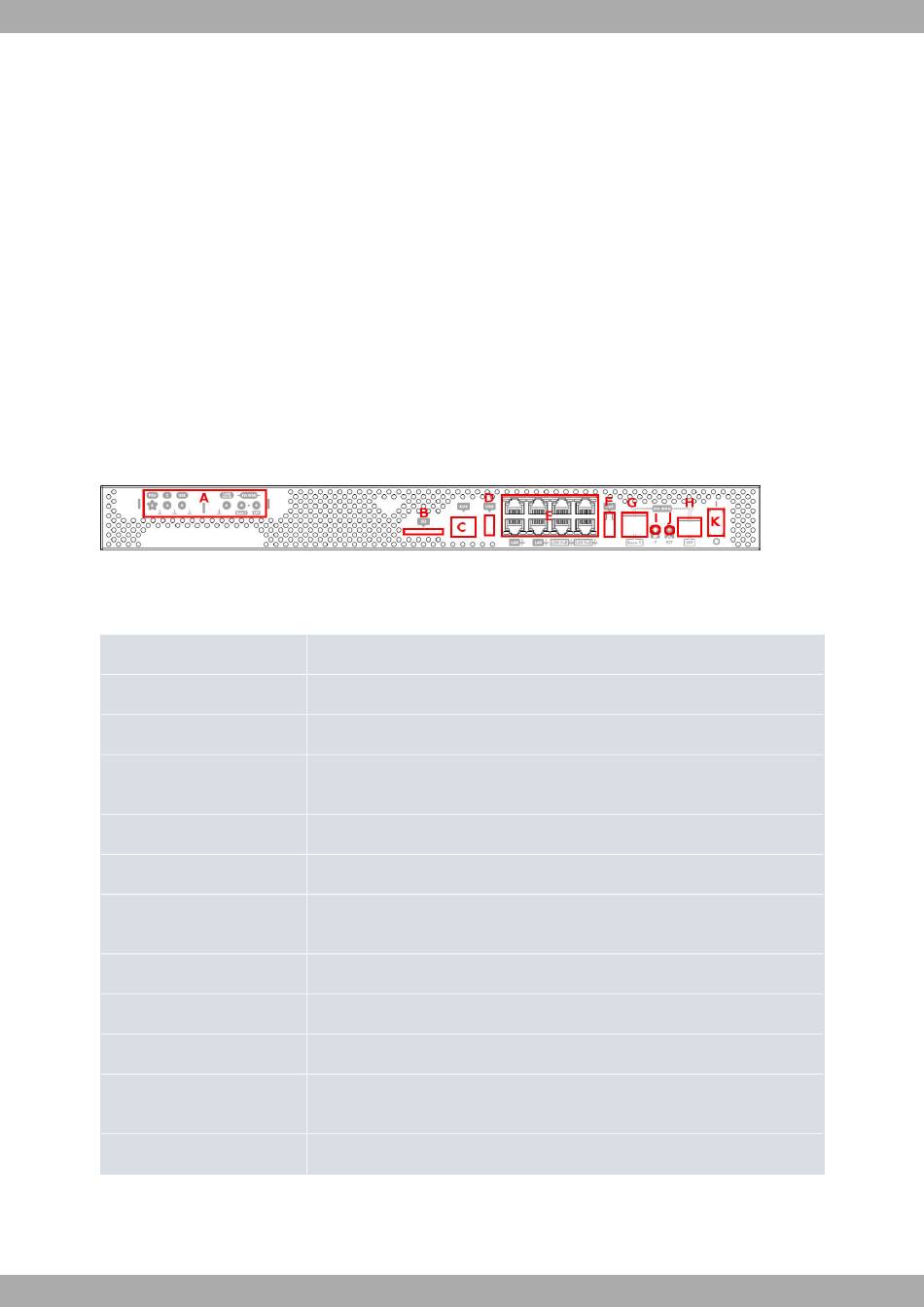

The following figure shows the front panel. Here you will find most of the RXL14000 router connectors.
Front Panel
Fig. 1:
The front panel components are as follows:
Front panel components
Item
A
B
C
D
E
F
G
H
I
J
K
The LED panel provides information on the status of the components (whether they are active or not) and on the net-
work activity.
LEDs
4
Description
LED panel.
SD Slot card.
Aux. Provides access to the RXL14000 local console for configuring and monitor-
ing purposes.
USB. Slot where you can insert an external USB device.
8-port Gigabit Ethernet switch.
PoE. Connector for power supply through Ethernet (Power over Ethernet). Not
available.
Eth WAN Base-T. WAN Gigabit Ethernet.
Eth WAN SFP.
T. Reserved for future use.
RST. Reset button. For further information on how the reset button works, please
see RST button on page 8.
On/Off switch.
