2 Components and Power Supply

Chapter 2 Components and Power Supply
The following chapter provides detailed information on the chassis of the SDE router and its components. This in-
cludes information on:

• Components.

• Assembly.
• Power supply.
• Data connection.
2.1 Components

2.1.1 Front panel

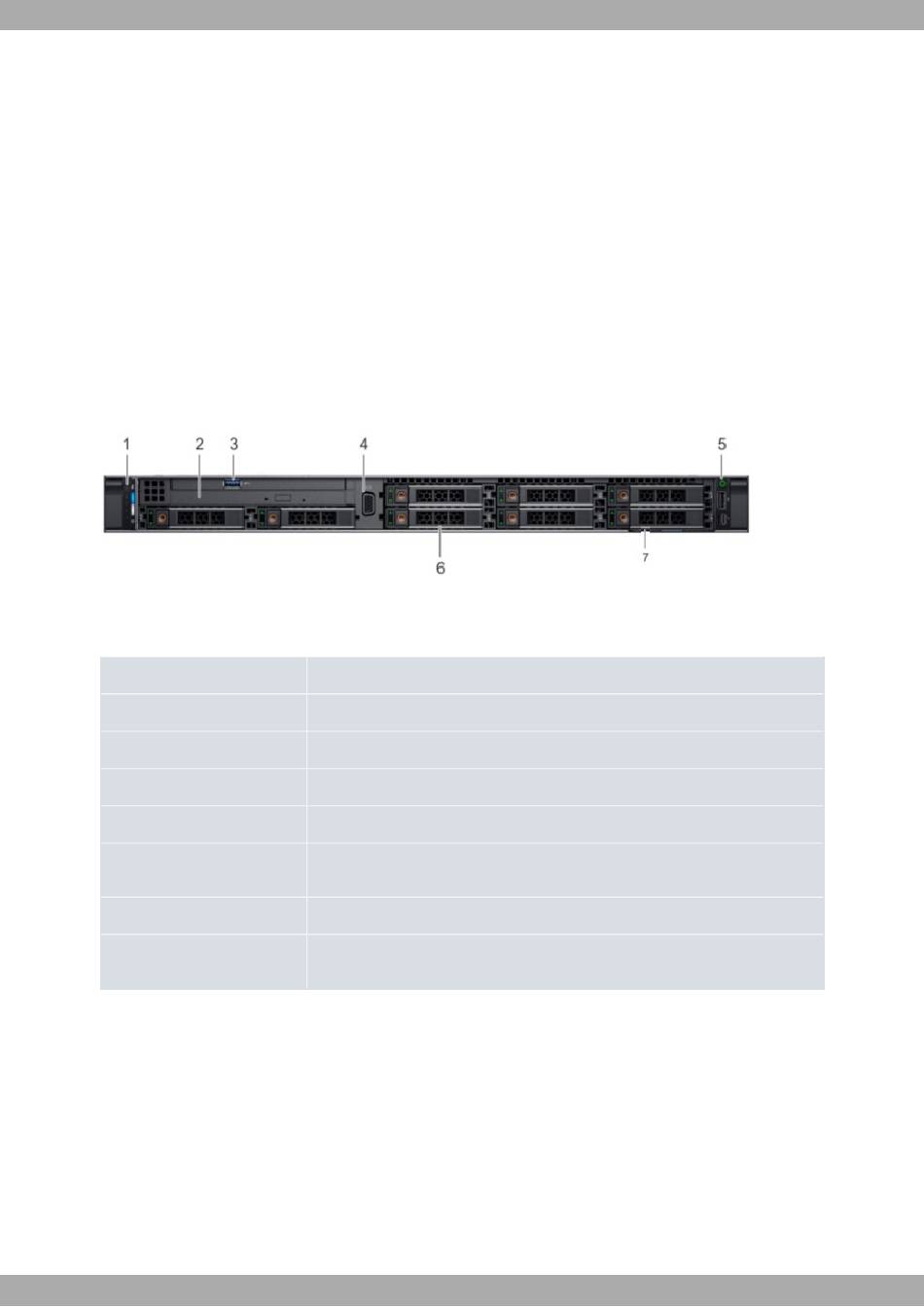

The following figure shows the front panel.
Front Panel
Fig. 1:
The front panel components are as follows:
Front panel components
Item
1
2
3
4
5
6
7
The following figure shows the left control panel view
2
Description
Left control panel. Holds the system health and system ID, status LED.
N/A
USB port.
VGA port. Allows you to connect a display device to the system.
Right control panel. Holds the power button, USB port, iDRAC Direct micro port,
and the iDRAC Direct status LED.
Drive slots. Allow you to install drives that are supported on your system.
Information tag. The Information Tag is a slide-out label panel that includes sys-
tem information (like the Service Tag, NIC, MAC address, etc.).
