3 Components and Power Supply

Chapter 3 Components and Power Supply
The following chapter provides detailed information on the chassis of the Teldat Connect-FW5G router and its com-
ponents. This information includes:

• Components.

• Information on assembly.
• Power supply.
• RST button.
• Data connection.
• SIM card installation.
3.1 Components

3.1.1 Front panel

The following figure shows the front panel.

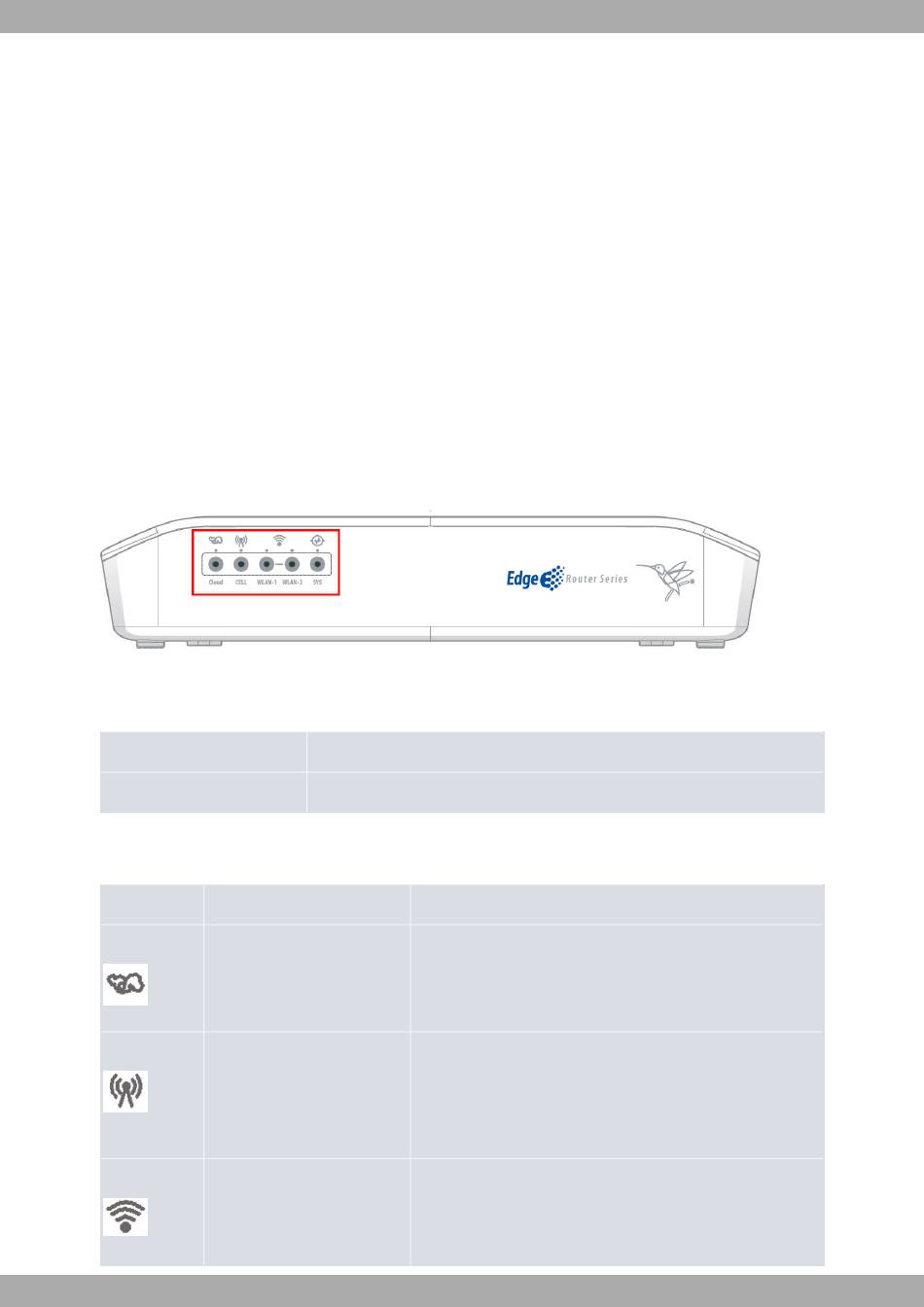

Front Panel of the Teldat Connect-FW5G
Fig. 2:
The front panel components are as follows:
Front panel components
Item
A
The LED panel provides information on the status of the components (indicating whether they are active or not) and
on network activity.
LEDs
LED
Cloud
Cell
WLAN-1
4
Description
LED panel.
Definition
Cloud Information
Status
Access Point 2.4 GHz radio
Status Indication
Off -> No connection, or connection disabled (shutdown).
Green -> Enabled, but no associated STAs.
Blinking -> Connected. Connection data activity.
Off -> No connection, or connection disabled (shutdown, SIM er-
ror, not registered).
Green -> Registered.
Blinking -> Connected. Connection data activity.
Off -> No connection, or connection disabled (shutdown).
Green -> Enabled, but no associated STAs.
Blinking -> Connected. Connection data activity.
