3 Components and Power Supply

Chapter 3 Components and Power Supply
The next section contains comprehensive information about the chassis of the Teldat M2 router family and its vari-
ous components. It covers details about the:

• Components.

• Assembly instructions.
• Power supply.
• RST button.
• Data connection.
• SIM card installation.
3.1 Components

3.1.1 Front panel

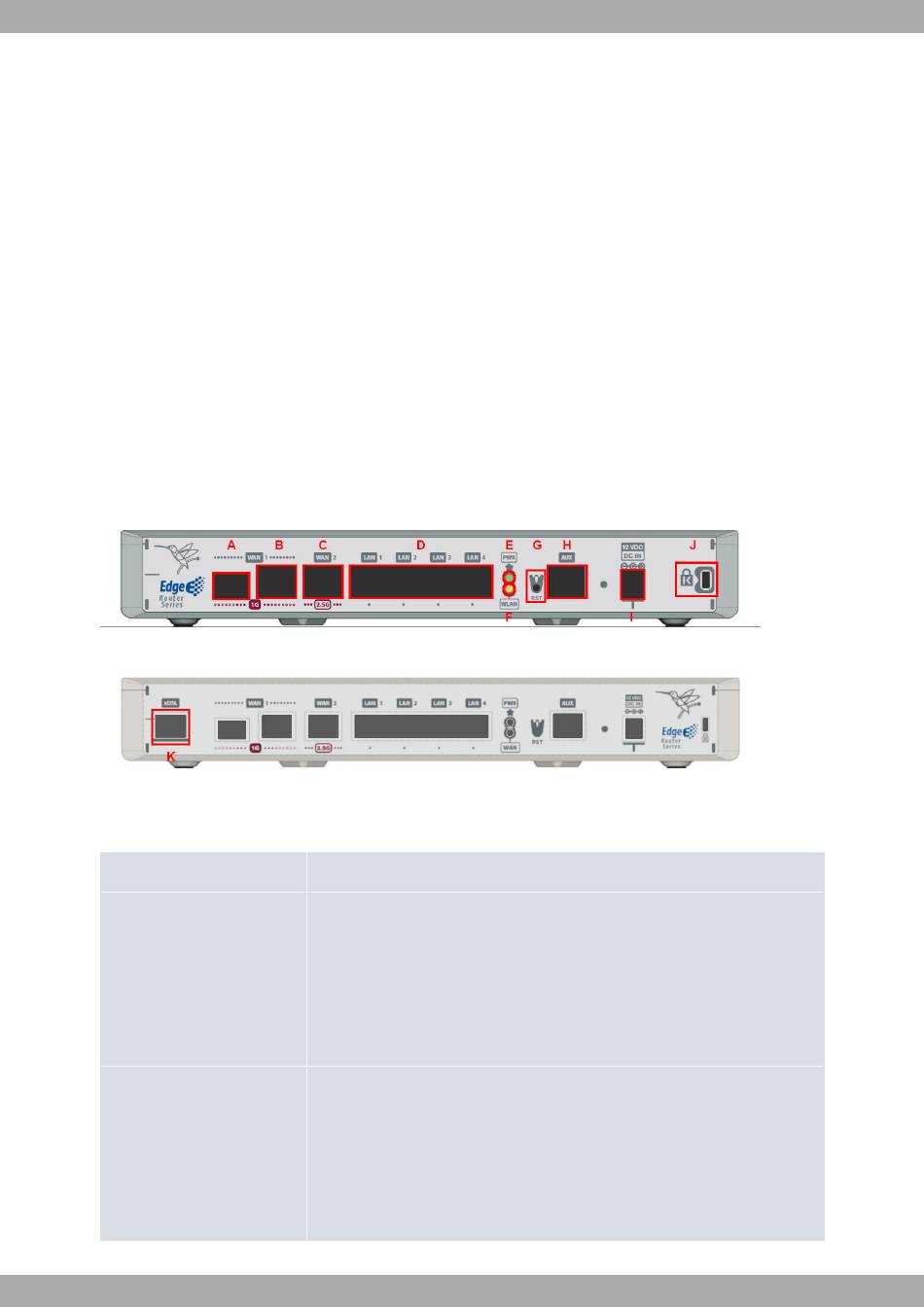

Please refer to the figure below for the front panel layout, where you will find the majority of the connectors used in
the Teldat M2 router family.
Front panel
Fig. 2:
Front panel
Fig. 3:
The following table provides detailed information and descriptions of each connector:
Front panel components
Item
A
B
6
(xDSL capable)
Description
Eth WAN-1 SFP.
To learn more about the SFP interface, please refer to:
- WAN Combo connection
- WAN SFP connector
- WAN SFP interface
Eth WAN-1 Base-T. WAN Gigabit Ethernet.
For detailed information about the WAN interface, please refer to:
- WAN Combo connection
- WAN Base-T connectors
- WAN Base-T interface
on page 16
on page 30
on page 32
on page 16
on page 30
on page 32
