Auxiliary Channel AC Test

This test requires an FRA to be present, and auxiliary channels must be fitted to
the potentiostat.
To perform this test, proceed as follows:

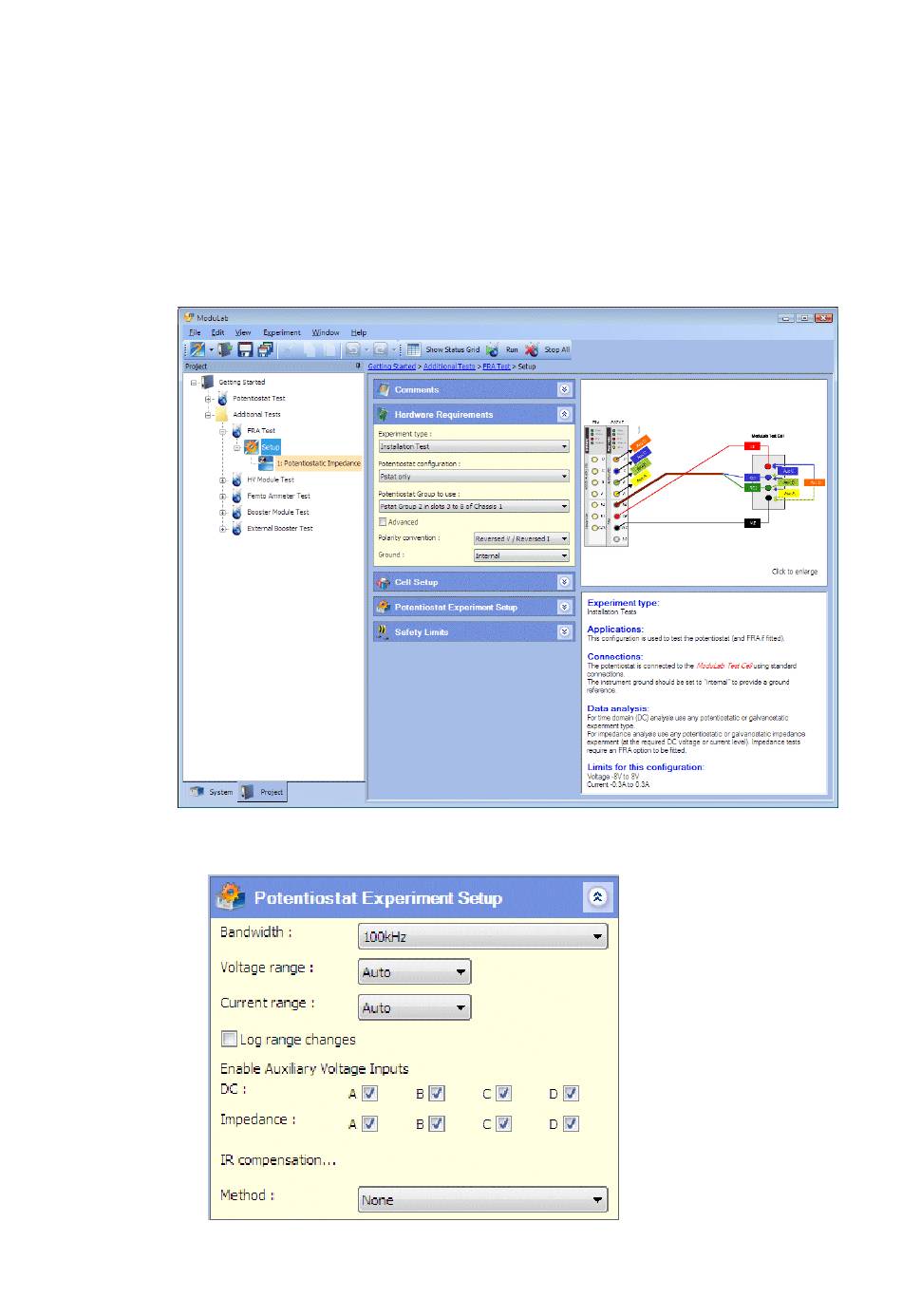

1. In the left-hand navigation panel, click on the
display the experiment setup screen, and make sure the correct potentiostat
group (the one with auxiliary channels on the potentiostat) is selected in the
Potentiostat Group to use
2. Expand the
Impedance
21006002_AD 11/06/14
field, as follows:
Potentiostat Experiment Setup
boxes, under Enable Auxiliary Voltage
Installation Tests
Setup item, under
sub-screen and check the
Inputs, as follows:
FRA Test, to
DC and
3-25
