Installation Tests
ModuLab XM ECS Electrochemical System: Installation Guide

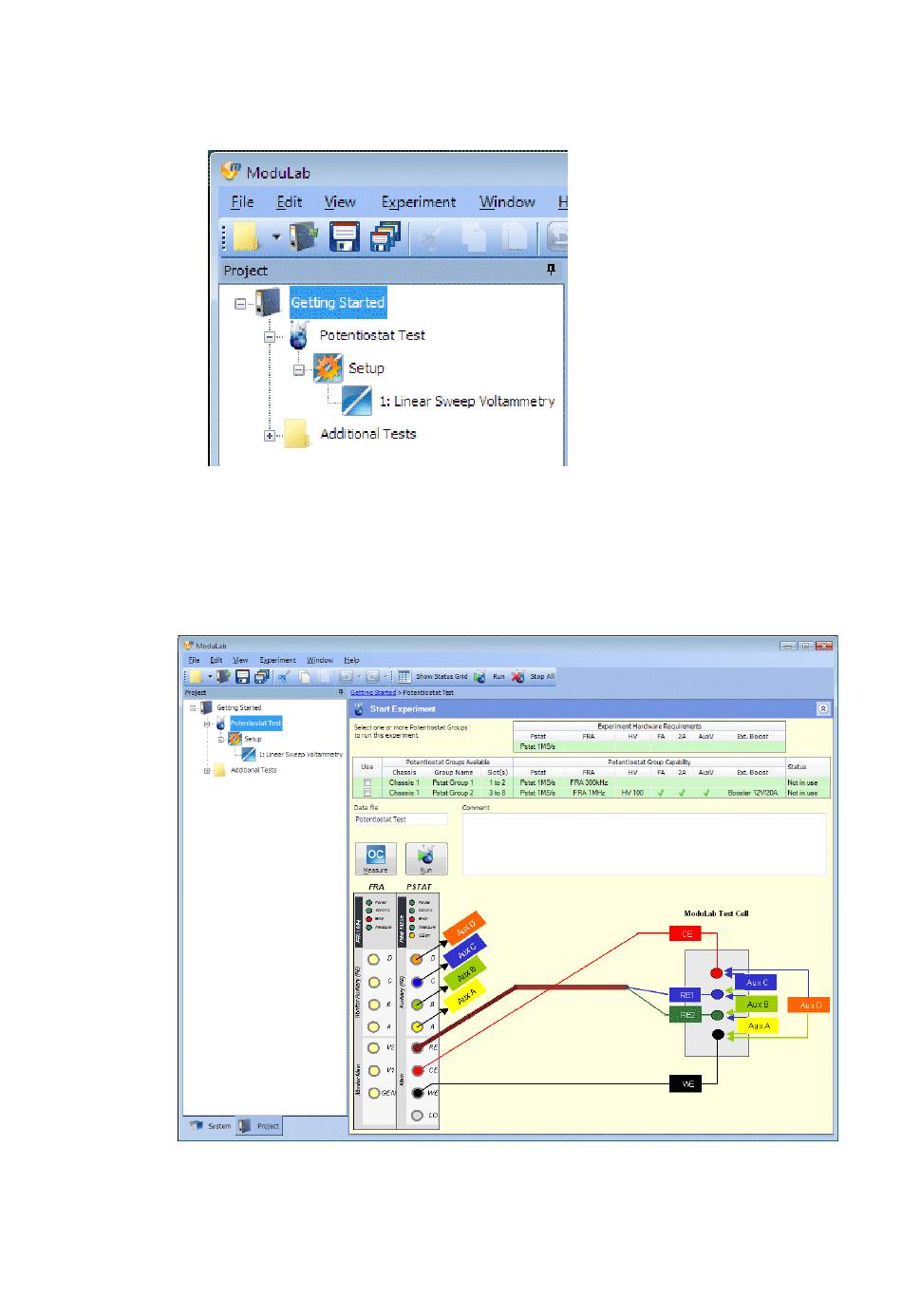

2. Make sure the Project tab is selected at the bottom of the left-hand navigation
panel, and click on the plus (+) symbol alongside the Getting Started project
to expand it, then expand the sub-elements to reveal the structure as follows:
Underneath the Getting Started project there is an experiment called
Potentiostat Test, then a Setup element where the conditions of the experiment
are specified, then a step called Linear Sweep Voltammetry.
3. Click on Potentiostat Test. This will display the Start Experiment screen, with
a tabulated list of potentiostat groups and a cell connection diagram as
follows:
