Assembling the System
2.7
CHECKING THE SYSTEM COMMUNICATIONS
To check the system communications, proceed as follows:
1. Make sure the ModuLab XM and PC are switched on and connected to each
other through the Ethernet.

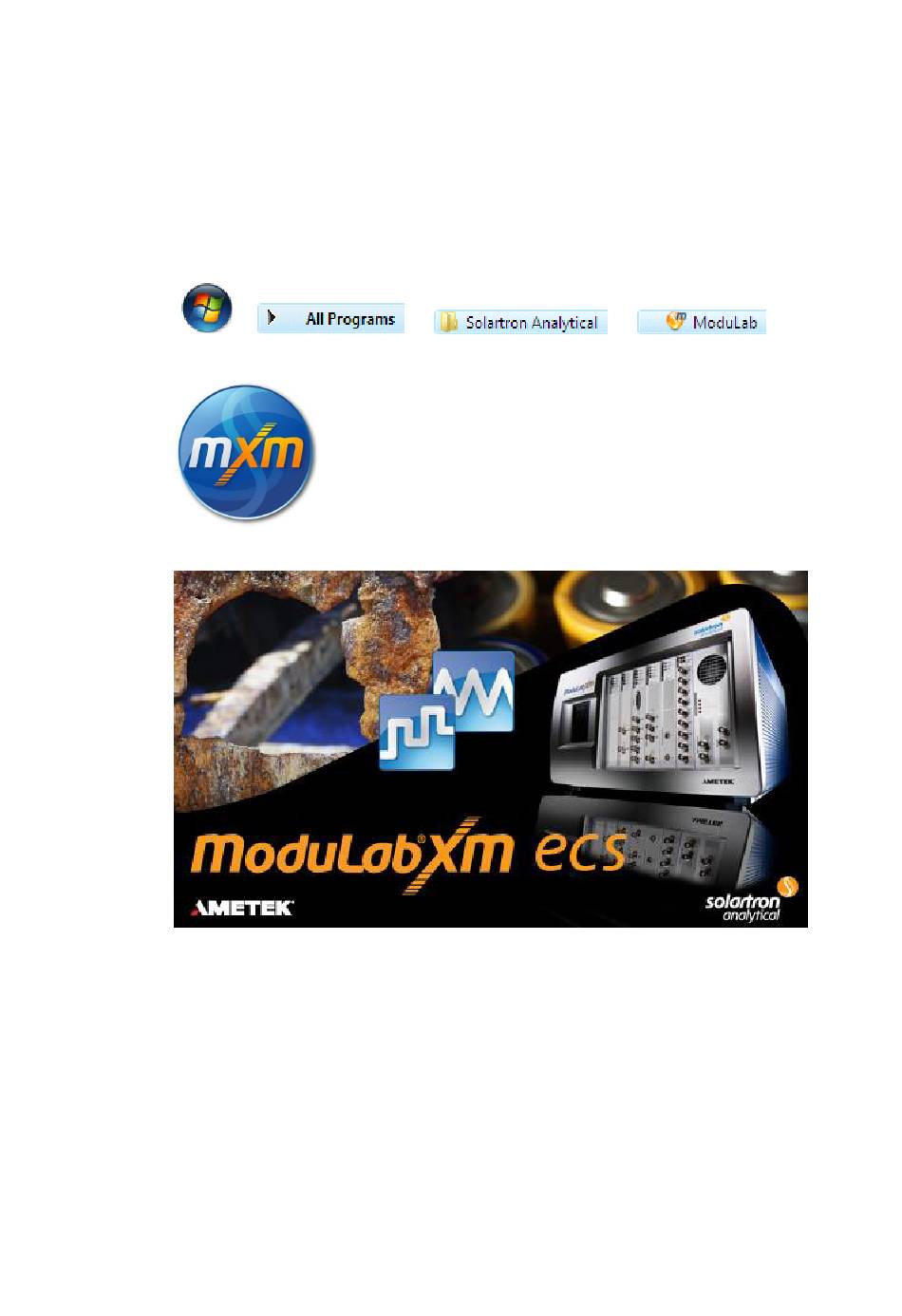

2. On the PC, run the ModuLab XM ECS software by clicking the appropriate
commands from the Start menu:
Alternatively, double-click the ModuLab XM icon on the Windows desktop:
The ModuLab XM ECS software opens, briefly displaying a screen as follows:
2-14
Section 2.6, Connecting the Ethernet.
→
ModuLab XM ECS Electrochemical System: Installation Guide
→
→
21006002_AD 11/06/14
